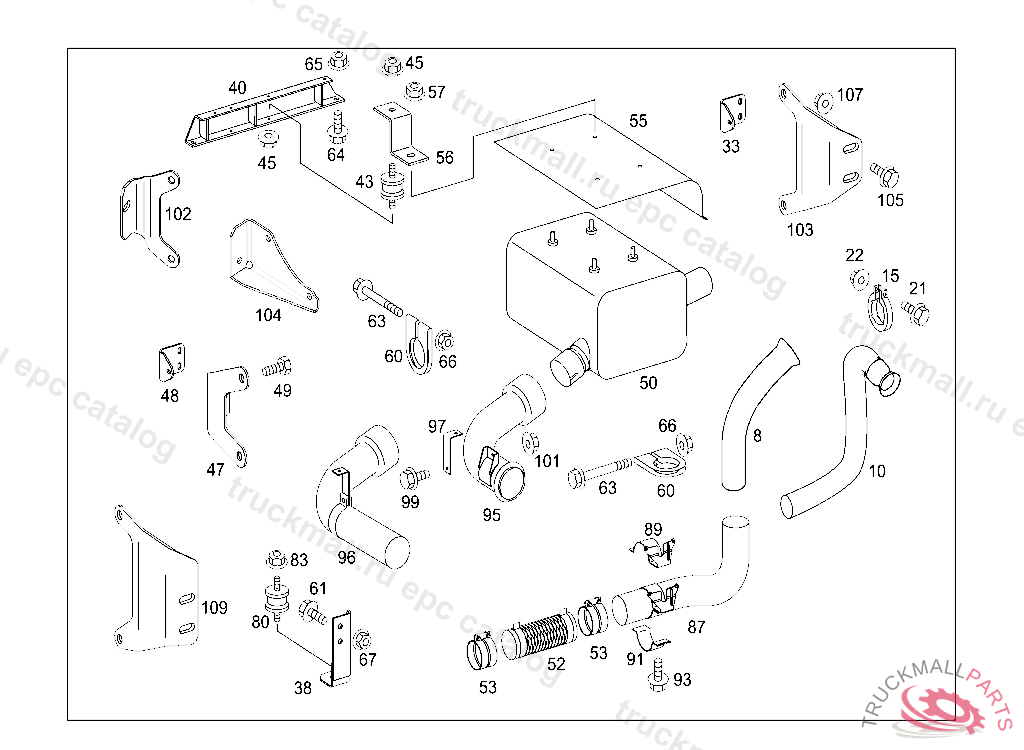

Поз.
Артикул
Описание
8
FRONT EXHAUST PIPE FRONT EXHAUST PIPE
15
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
21
SCREW EXHAUST PIPE TO MUFFLER AND TO HEATER UNIT M 8X55
22
NUT HORN TO BRACKET M8
33
BRACKET
38
BRACKET BRACKET TO SIDE MEMBER
40
BRACKET AT EXHAUST PIPE
43
BUFFER
43
RUBBER MOUNTING
45
NUT , Replaced By: N913023010002
50
EXHAUST MUFFLER ,D 292287
50
EXHAUST MUFFLER , Replaced By: A3684900101
52
FLEXIBLE METAL TUBE
53
LOOM TIE
55
PROTECTIVE PLATE EXHAUST MUFFLER,D 292287
56
BRACKET BRACKET TO EXHAUST MUFFLER
57
NUT BRACKET TO SIDE MEMBER M12X1.5
60
CLAMP EXHAUST PIPE TO EXHAUST PIPE
60
CLAMP FRONT EXHAUST PIPE ON INTERMEDIATE PIPE 83 MM
60
CLAMP FRONT EXHAUST PIPE ON INTERMEDIATE PIPE 77 MM
61
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
63
SCREW SUPPORT TO ALTERNATOR
63
SCREWM8X120,D 250888 NOT USED
64
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
65
NUT BRACKET TO SIDE MEMBER M12X1.5
66
NUT HORN TO BRACKET M8
66
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
67
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
80
RUBBER BUFFER EXHAUST MUFFLER
83
NUT , Replaced By: N913023010002
87
INTERMEDIATE PIECE EXHAUST PIPE TO FLEXIBLE METAL TUBE
89
CLAMPTO A 368 490 0731
91
CLAMPTO A 3684900431
93
SCREW , Replaced By: N910143008002
95
END PIECE
97
BRACKET
99
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
101
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
102
BRACKET EXHAUST PIPE BRACKET TO BELL HOUSING
104
BRACKET EXHAUST PIPE BRACKET TO BELL HOUSING
105
SCREW , Replaced By: N910143008002
107
NUT HORN TO BRACKET M8
109
BRACKET BRACKET TO TRANSMISSION CASE
