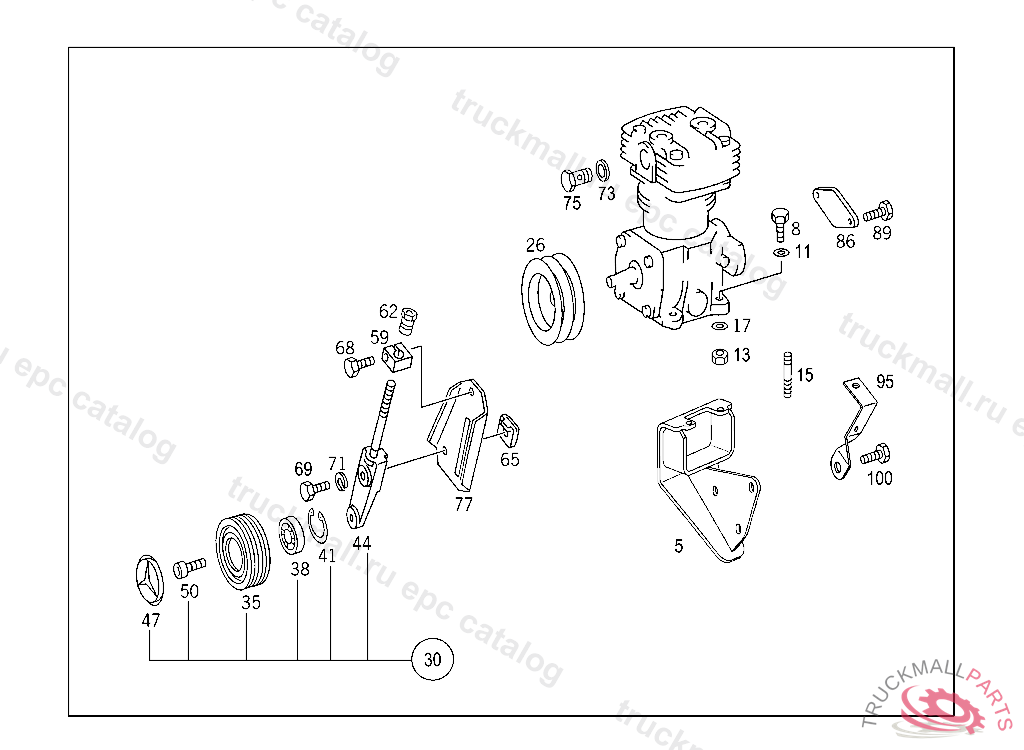

Поз.
Артикул
Описание
5
SUPPORT AIR COMPRESSOR TO SUPPORT
8
SCREW AIR COMPRESSOR TO SUPPORT M 8X35
11
WASHER FROM TERMINAL BOX TO CHARGING AIR PIPE
13
NUT HORN TO BRACKET M8
15
STUD AIR COMPRESSOR TO SUPPORT M8X35
17
SEAL RING
26
PULLEY AT AIR COMPRESSOR
30
SUPPORT
35
TIGHTENER PULLEY
38
BALL BEARING TIGHTENER PULLEY
41
LOCK RING
44
SUPPORT TIGHTENER PULLEY
47
CAP
50
SCREW PIPE ELBOW TO CHARGING AIR INTERCOOLER M 10X35,5 708090
59
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
62
NUT TIGHTENER PULLEY TO LEVER
65
CLAMPING PIECE
68
SCREW
68
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
68
HEX. HEAD. SCREW BEARING BRACKET TO TRANSMISSION
71
LOCK WASHER FITTING TO BRACKET
73
SEAL RING BRAKE CYLINDER STROKE INDICATOR
75
HOLLOW SCREW OIL DELIVERY LINE TO OIL FILTER
77
BRACKET BELT TENSION READJUSTMENT
86
FLANGE TO PLUG AIR COMPRESSOR,REAR
89
SCREW BRACKET TO SIDE MEMBER
999
THREADED UNION OIL LINE TO CONNECTOR
