Поз.
Артикул
Описание

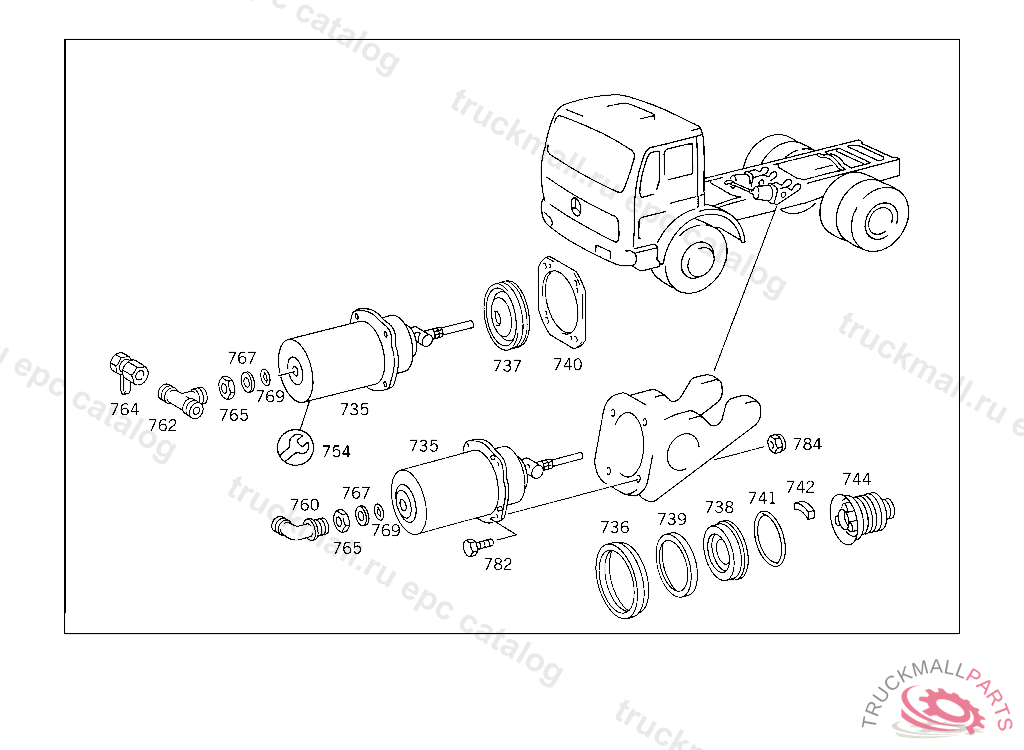

735
BRAKE CYLINDER SPRING LOAD ACCUMULATOR KNORR
735
BRAKE CYLINDER , Replaced By: A0004312414
735
BRAKE CYLINDER SPRING LOAD ACCUMULATOR BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
736
SEAL RINGTO 000 431 86 14
737
CUPTO 000 431 24 14
737
CUPTO 000 431 24 14
737
CUP
738
PISTONTO 000 431 86 14
739
SEAL RINGTO 000 431 86 14
740
SEAL RINGTO 000 431 24 14
740
SEAL RINGTO 000 431 24 14
741
SEAL RINGTO 000 431 86 14
742
STRAINERTO 000 431 86 14
744
CUPTO 000 431 76 14
744
PROTECTIVE CAPTO 000 431 24 14
744
CUP , Replaced By: A0015864342
744
CUP , Replaced By: A0004318587
754
CUP , Replaced By: A0015864342
754
REPAIR KIT , Replaced By: A0034201724
754
REPAIR KITTO 000 431 76 14
754
REPAIR KITTO 001 431 65 14,000 431 24 14
760
FITTING ,4 667210
760
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
762
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
764
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
764
TEST CONNECTION
764
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
764
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
765
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
767
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
769
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
769
SEAL RING
782
SCREW END PIECE TO EXHAUST PIPE M 10X25
784
NUT , Replaced By: N910113010000
784
NUT STRAP TO BRACKET
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
ELBOW FITTING
999
VALVE , Replaced By: A0004310265
999
SLIDETO 000 431 50 14,000 431 24 14
999
FILTER BOTTOMTO 000 431 24 14
999
SCREW
999
GUIDE BUSHINGTO 000 431 43 12,000 431 44 12
999
GUIDE BUSHING
999
LEVER TOOTHED
999
LEVER
999
GUIDE BUSHINGTO 000 431 43 12,000 431 44 12
999
PISTONTO 000 431 43 12,000 431 44 12
999
SEAL RINGTO 000 431 43 12,000 431 44 12
999
SEAL RING
999
FELT STRIPTO 000 431 43 12,000 431 44 12
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
T-FITTING RELAY VALVE,CONNECTION: "12"
999
NUT RETAINER , Replaced By: A3229900091
999
PLUG
999
SPRING
999
SPRING
999
SEAL RINGTO 000 431 43 12,000 431 44 12, NO LONGER AVAILABLE
999
SEAL RING
999
SPHERICAL PIECE , Replaced By: A3025860242
999
NUT RETAINER BRACKET MOUNTING
999
BRACKET , Replaced By: A3604292940
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
PIN , NOT USED
999
ADHESIVE FOIL GUIDE SIGN
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008040
999
NUT CHECK VALVE TO AIR RESERVOIR
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
999
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
999
CLIP , NOT USED
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
