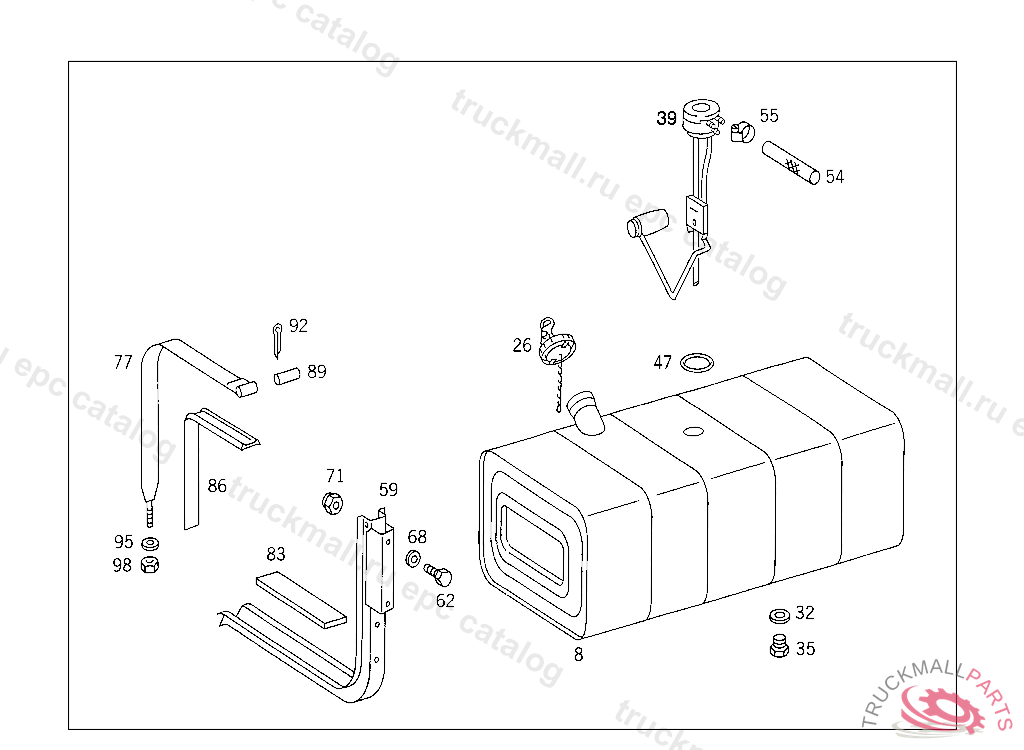

Поз.
Артикул
Описание
26
FILLER CAP
26
FILLER CAP
26
FILLER CAP LOCKABLE "TAMPAS CLICK",1B 901863
26
FILLER CAP KEY LOCKING
32
SEAL RING AT TANK
35
SCREW PLUG AT TANK
39
SENDER UNIT"VDO"
39
SENDER UNIT
39
SENDER UNIT
47
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0209971148
47
SEAL RING , Replaced By: A0249972848
47
SEAL RING AT WATER PUMP
59
CONSOLE FUEL TANK,FRONT AND REAR
62
SCREW BATTERY CASE TO SIDE MEMBER
62
SCREW BATTERY CASE
68
WASHER BATTERY CASE
71
NUT , Replaced By: N910113014000
77
STRAP FUEL TANK TO SUPPORT
83
SHIM FUEL TANK TO CONSOLE
89
PIN STRAP TO SUPPORT
92
COTTER PIN STRAP TO SUPPORT
95
WASHER SUPPORT TO FRAME,D 127794
98
NUT FUEL TANK TO SUPPORT
