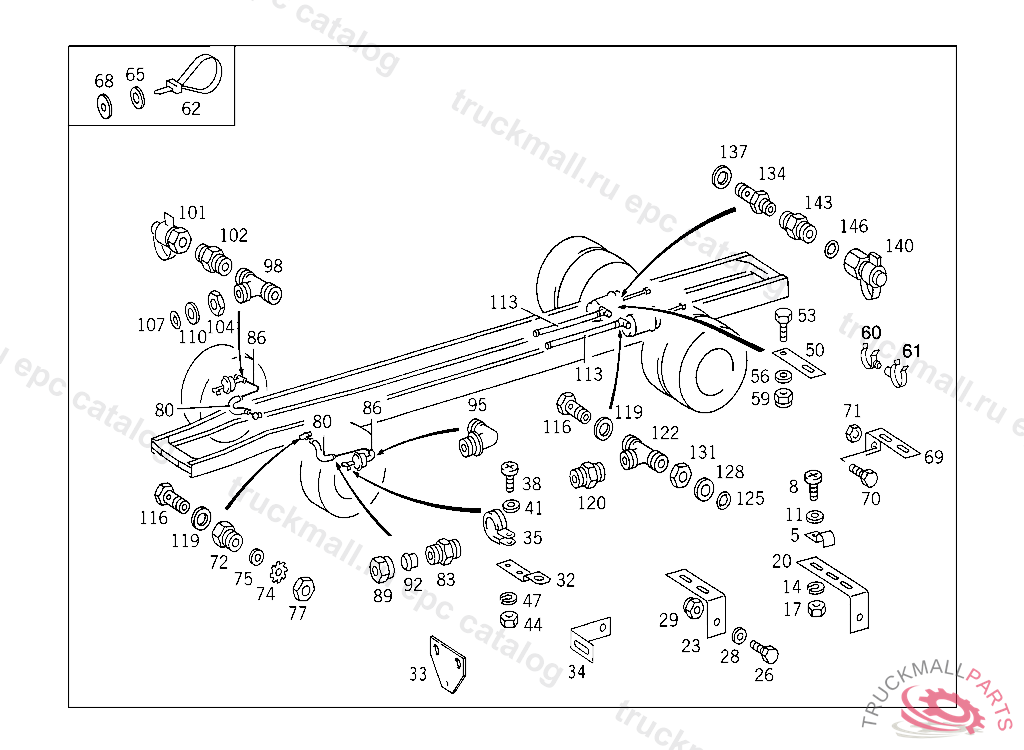

Поз.
Артикул
Описание
5
CLAMP , Replaced By: A6739950001
5
CLAMP , Replaced By: A3129952420
8
SCREW CAP TO BRACKET
11
WASHER PLUG SOCKET TO BRACKET
14
LOCK WASHER CABLE TO FUSE BOX
14
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
14
LOCK WASHER BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
17
NUT , Replaced By: N913023006001
20
BRACKET TO ENGINE
23
BRACKET LINE MOUNTING
26
SCREW MOUNTING CLAMP TO BRACKET AND TO FRAME
28
WASHER TRAILER PLUG SOCKET TO BRACKET
29
NUT HORN TO BRACKET M8
32
BRACKET COMPRESSED AIR LINE, BRAKE
34
BRACKET COMPRESSED AIR LINE TO BRAKE CYLINDER
35
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
35
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
38
SCREW CAP TO BRACKET
41
WASHER PLUG SOCKET TO BRACKET
44
NUT , Replaced By: N913023006001
47
LOCK WASHER CABLE TO FUSE BOX
50
BRACKET AT CROSS MEMBER
53
SCREW LINES TO BRACKET
56
WASHER TRAILER PLUG SOCKET TO BRACKET
59
NUT HORN TO BRACKET M8
62
LOOM TIE ELECTRIC CABLE MOUNTING
62
LOOM TIE LINE MOUNTING
62
LOOM TIE AIR INTAKE HOSE TO CLAMP
62
LOOM TIE , Replaced By: A3459977390
65
WASHER BRACKET TO LEFT SIDE MEMBER
65
WASHER , Replaced By: A3609902340
69
BRACKET , Replaced By: A3464296040
70
SCREW , Replaced By: N304017010040
71
NUT OIL COOLER TO BRACKET,TOP
72
ADAPTER FITTING , Replaced By: A0004296934
74
TOOTHED WASHER SENDER UNIT TO BRACKET
77
NUT BRACKET TO SIDE MEMBER
80
BRAKE HOSE FROM QUICK-RELEASE VALVE TO COMBINATION CYLINDER,RIGHT
80
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
80
BRAKE HOSE , Replaced By: A3844207248
80
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
80
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
83
CONNECTION FITTING
86
LINE RIGHT FRONT WHEEL BRAKE CYLINDER 12X1 MM
86
LINE FROM FITTING TO DIAPHRAGM CYLINDER,D 063242
86
LINE LEFT FRONT WHEEL BRAKE CYLINDER 12X1 MM
89
UNION NUT LINE CONNECTION, Replaced By: N000000006239
92
GLAND , Replaced By: A0019901967
95
ELBOW FITTING DIAPHRAGM CYLINDER,CONNECTION: "1,11"
95
ELBOW FITTING , Replaced By: A3849907071
98
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
98
T-FITTING TWO-WAY VALVE,CONNECTION: "Z"
101
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
101
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
102
CONNECTOR FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
104
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
107
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
110
THRUST RING LOCKING VALVE
110
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
110
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
113
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
113
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
113
BRAKE HOSE FROM QUICK-RELEASE VALVE TO COMBINATION CYLINDER,RIGHT
113
BRAKE HOSE , Replaced By: A3844207248
113
BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
116
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
119
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
122
T-FITTING AIR RESERVOIR,CONNECTION: "31"
122
T-FITTING TRAILER CONTROL VALVE,CONNECTION: "1"
125
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
128
THRUST RING LOCKING VALVE
128
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
128
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
131
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
134
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
137
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
140
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
140
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
143
CONNECTOR FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
146
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
