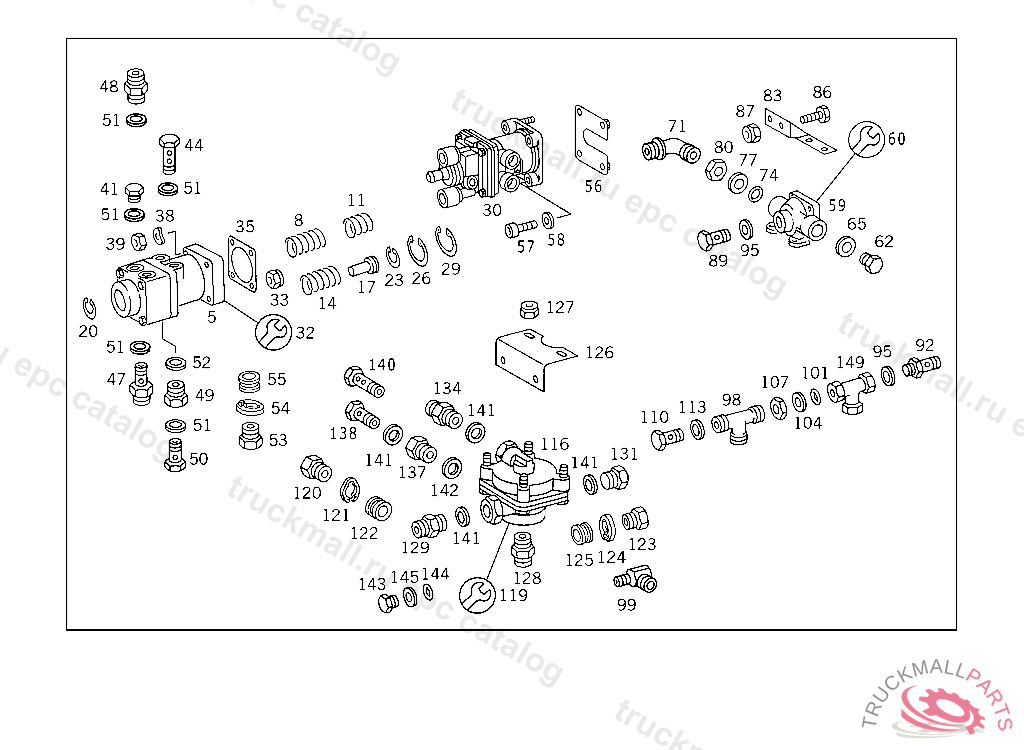

Поз.
Артикул
Описание
5
BRAKE VALVE (SERVICE BRAKE VALVE) KNORR
5
BRAKE VALVE (SERVICE BRAKE VALVE) BOSCH
5
BRAKE VALVE (SERVICE BRAKE VALVE) WABCO
32
REPAIR KIT SERVICE BRAKE VALVE BOSCH
32
BRAKE VALVE TWO-CIRCUIT BRAKE VALVE TO 002 431 80 05,WABCO
32
GASKET KIT TWO-CIRCUIT BRAKE VALVE TO 002 431 87 05
32
REPAIR KIT TWO-CIRCUIT BRAKE VALVE TO 002 431 87 05
33
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
35
GASKET BRAKE SHOE WITH LINING
38
SPRING WASHER BRAKE SHOE WITH LINING
39
NUT BATTERY CASE
41
SCREW PLUG
44
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
47
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
50
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
51
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
59
VALVE (QUICK BREATHER VALVE) VARGA
59
VALVE QUICK-RELEASE VALVE KNORR
59
VALVE (QUICK BREATHER VALVE) WABCO
59
VALVE (QUICK BREATHER VALVE) VARGA
59
VALVE , Replaced By: A6934297144
60
REPAIR KITTOA 382 429 70 44, A 693 429 71 44
60
REPAIR KITTO A 364 429 70 44
62
SCREW PLUG AT TANK
62
SCREW PLUG
65
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
71
ELBOW FITTING DIAPHRAGM CYLINDER,CONNECTION: "1,11"
74
O-RING CHECK VALVE TO AIR RESERVOIR
74
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
77
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
77
THRUST RING CHECK VALVE TO AIR RESERVOIR
77
THRUST RING LOCKING VALVE
77
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
80
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
83
BRACKET QUICK-RELEASE VALVE
86
SCREW LINES TO BRACKET
87
NUT BRACKET TO SIDE MEMBER
89
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
95
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
110
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
113
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
116
VALVE (RELAY VALVE),REAR AXLE
116
VALVE (RELAY VALVE) WABCO
116
VALVE (RELAY VALVE) KNORR
119
REPAIR KITWABCO
119
REPAIR KITKNORR
119
REPAIR KITTO 003 429 30 44,KNORR
119
REPAIR KIT SMALL SCOPE TO 001 429 68 44
126
BRACKET , Replaced By: A3184280240
127
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
128
FITTING , Replaced By: A0029971172
129
SCREW-IN FITTING OIL LINE CONNECTION
129
CONNECTION FITTING , Replaced By: A0049971772
131
SCREW PLUG
134
FITTING TEST VALVE TO RELAY VALVE,CONNECTION: "40"
137
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
138
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
141
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
142
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
149
VALVE (TRAILER CONTROL VALVE) "KNORR"
149
VALVE (TRAILER CONTROL VALVE) "KNORR"
149
VALVE TWO-WAY
