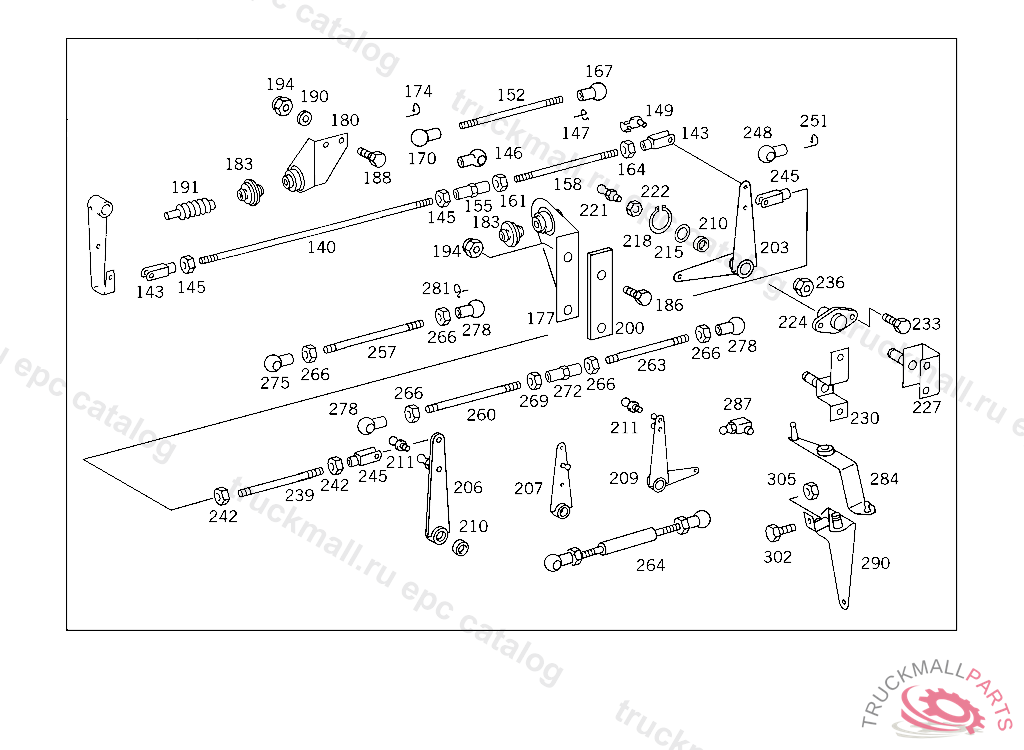

Поз.
Артикул
Описание
140
PULL ROD FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER 6X4950X50/50
143
YOKE ACCELERATOR CONTROL
145
NUT
145
NUT L.H. THREAD
146
BALL SOCKET AT CONTROL LEVER
147
SECURING CLIP. CIRCLIP
149
PIN OPERATING ROD TO BRACKET
155
NUT FRONT SHIFTING ROD
158
ROD FROM INTERMEDIATE LEVER II TO REAR CONTROL SHAFT 9X1,5X1250, UP TO CHASSIS D 164887 EXCEPT FOR:D 162653,D 162907,D 163135,D 163292,D 164695.
161
NUT
167
BALL SOCKET CONTROL
177
BRACKET ACCELERATOR CONTROL LINKAGE BEARING
180
BRACKET ACCELERATOR CONTROL LINKAGE BEARING
183
GROMMET
186
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
190
WASHER , Replaced By: N000125010532
191
BOOT ACCELERAT0R CONTROL LINKAGE
194
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
206
LEVER (INTERMEDIATE LEVER)
206
LEVER (INTERMEDIATE LEVER),D 196082
207
LEVER (INTERMEDIATE LEVER)
210
BUSHING MANUAL CONTROL,D 249954
211
BALL PIVOT CONTROL SHAFT
215
WASHER PEDAL BEARING
218
LOCK RING BELT TIGHTENER
221
GREASE NIPPLE
224
PIN INTERMEDIATE LEVER
224
PIN REVERSING LEVER
233
SCREW BATTERY CASE
233
SCREW BRACKET TO FRAME
236
NUT , Replaced By: N910113014000
239
PULL ROD CONTROL LEVER TO INJECTION PUMP LEVER 6X430X30/30
239
PULL ROD6X865X30/30
242
NUT
245
YOKE FROM REVERSING LEVER TO CONTROL LEVER
266
NUT
269
NUT L.H. THREAD
272
NUT FRONT SHIFTING ROD
275
BALL SOCKET PULL ROD TO LEVER
278
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
281
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
