Поз.
Артикул
Описание

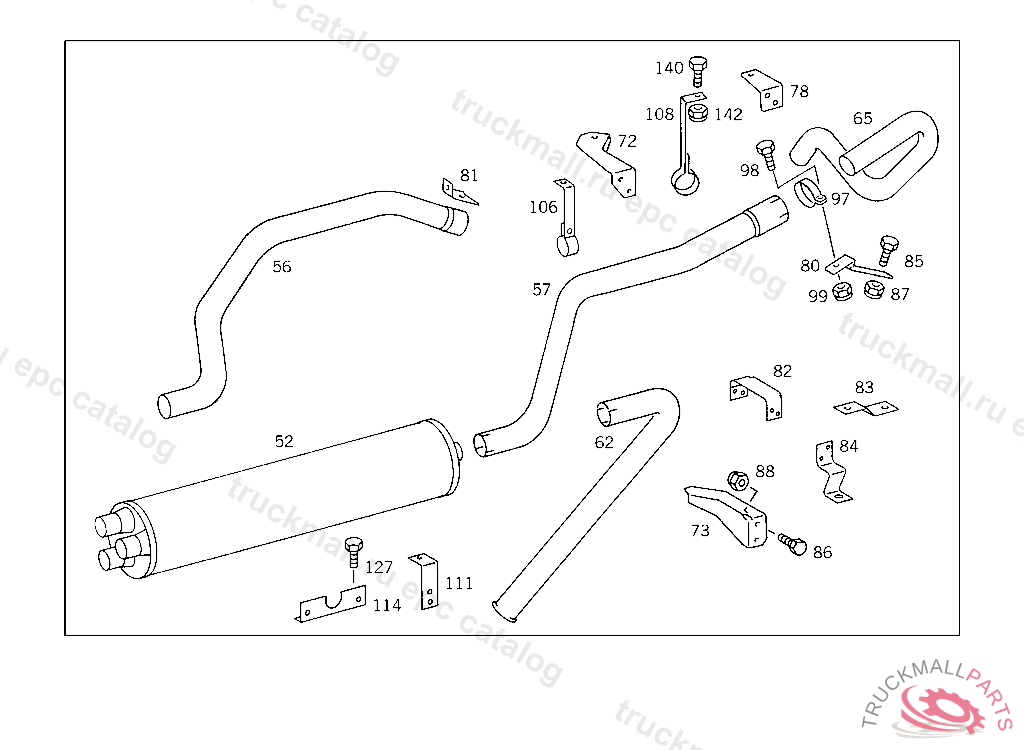

72
SUPPORT EXHAUST PIPE
85
SCREW , Replaced By: N304017008034
85
SCREW BRACKET TO CROSS CONNECTION STRUT
87
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
87
NUT , Replaced By: N913004008001
108
BRACKET , Replaced By: A3834927941
108
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
140
SCREW SUPPORT TO CROSS MEMBER M 10X28
142
NUT , Replaced By: N910113010000
142
NUT STRAP TO BRACKET
999
PROTECTIVE PLATE LEFT
