Поз.
Артикул
Описание

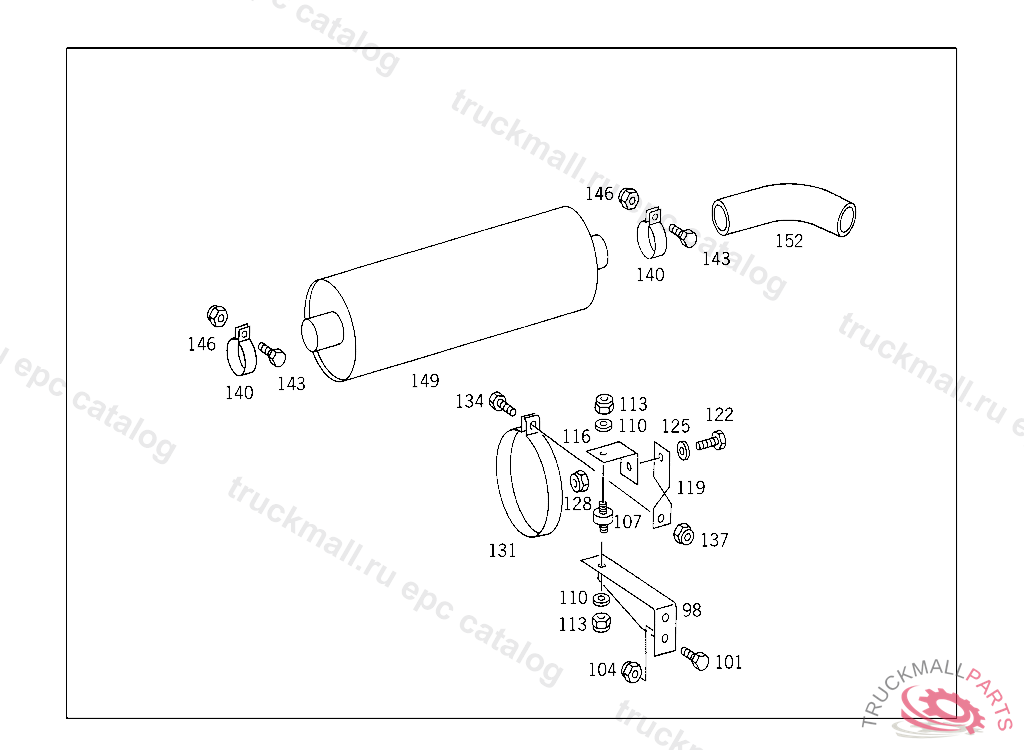

98
SUPPORT EXHAUST MUFFLER
101
SCREW BATTERY CASE
101
SCREW , Replaced By: N308676014012
104
NUT , Replaced By: N910113014000
107
RUBBER BUFFER EXHAUST MUFFLER
110
WASHER GROUND CABLE
113
NUT BRACKET TO SIDE MEMBER,XB209706
116
BRACKET EXHAUST MUFFLER
119
SUPPORT EXHAUST MUFFLER
122
SCREW , Replaced By: N304017010002
125
WASHER GROUND CABLE
128
NUT BRACKET TO RETARDER
131
CLAMP EXHAUST MUFFLER TO BRACKET
134
SCREW CROSS MEMBER TO SIDE MEMBERS
137
NUT BRACKET TO SIDE MEMBER,XB209706
140
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
140
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
143
SCREW , Replaced By: N304017010002
146
NUT BRACKET TO SIDE MEMBER,XB209706
149
EXHAUST MUFFLER
149
EXHAUST MUFFLER
149
EXHAUST MUFFLER
152
REAR EXHAUST PIPE
999
CLAMP FRONT EXHAUST PIPE TO MUFFLER,B 884220
999
CLAMP , Replaced By: A3644927040
999
NUT ,B 884219
999
SCREW FRONT EXHAUST PIPE TO MUFFLER M 10X130
999
SCREW REAR EXHAUST PIPE TO MUFFLER M 10X140,B 884220
999
NUT ,B 884219
999
NUT , Replaced By: N910113010004
