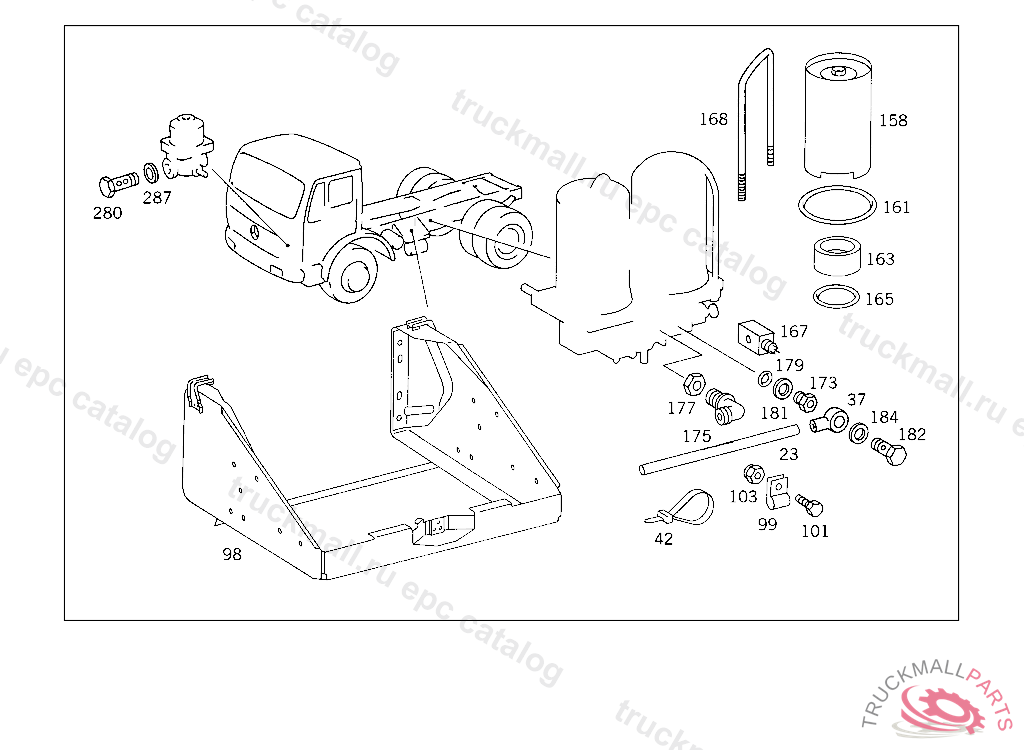

Поз.
Артикул
Описание
23
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
23
HOSE , Replaced By: A0009872827
37
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
37
BANJO UNION , Replaced By: N915052009009
42
LOOM TIE LINE MOUNTING 280 MM
42
LOOM TIE LINE MOUNTING
98
BATTERY SUPPORT ,5 161700
98
BATTERY SUPPORT
98
BATTERY SUPPORT , FOR THE NEW PART NO.,SEE STANDARD VERSION, Replaced By: A6205400016
98
BATTERY SUPPORT , Replaced By: A6205400016
98
BATTERY SUPPORT , FOR THE NEW PART NO.,SEE STANDARD VERSION, Replaced By: A6205400016
99
CLAMP , Replaced By: N916016011202
99
CLAMP AT BRACKET
101
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
103
NUT STRAP TO BRACKET
103
NUT , Replaced By: N910113010000
158
STRAINER FILTER ELEMENT
161
SEAL RING
163
STRAINER
165
SEAL RING
167
VALVE SOLENOID SWITCH
168
ANGLETO 000 431 46 15
173
FITTING AIR RESERVOIR,CONNECTION: "11"
173
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
175
ELBOW FITTING ,5 433281
175
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
177
NUT CHECK VALVE TO AIR RESERVOIR
179
O-RING CHECK VALVE TO AIR RESERVOIR
181
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
181
THRUST RING CHECK VALVE TO AIR RESERVOIR
182
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
184
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
280
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
287
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
AIR CLEANERBOSCH
999
ANTI-FREEZE DEVICE , Replaced By: A0004314615
999
RESERVOIR , Replaced By: A0014327501
999
RESERVOIR , Replaced By: A0034321201
999
FILTER , Replaced By: A0004315934
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
T-FITTING PRESSURE RELIEF VALVE,CONNECTION: "10"
999
FITTING AIR RESERVOIR,CONNECTION: "13"
999
FITTING SHUTTLE VALVE,CONNECTION: "20"
999
PRESSURE REGULATOR ,5 161700, Replaced By: A0024314606
999
VALVE ,5 161700, Replaced By: A0024314706
999
RUBBER SECTION , Replaced By: A3634750320
999
BRACKET AIR CLEANER,5 088361
999
BATTERY SUPPORT , Replaced By: A6165400316
999
COVERING ANTI-FREEZE DEVICE,6 900023
