Поз.
Артикул
Описание

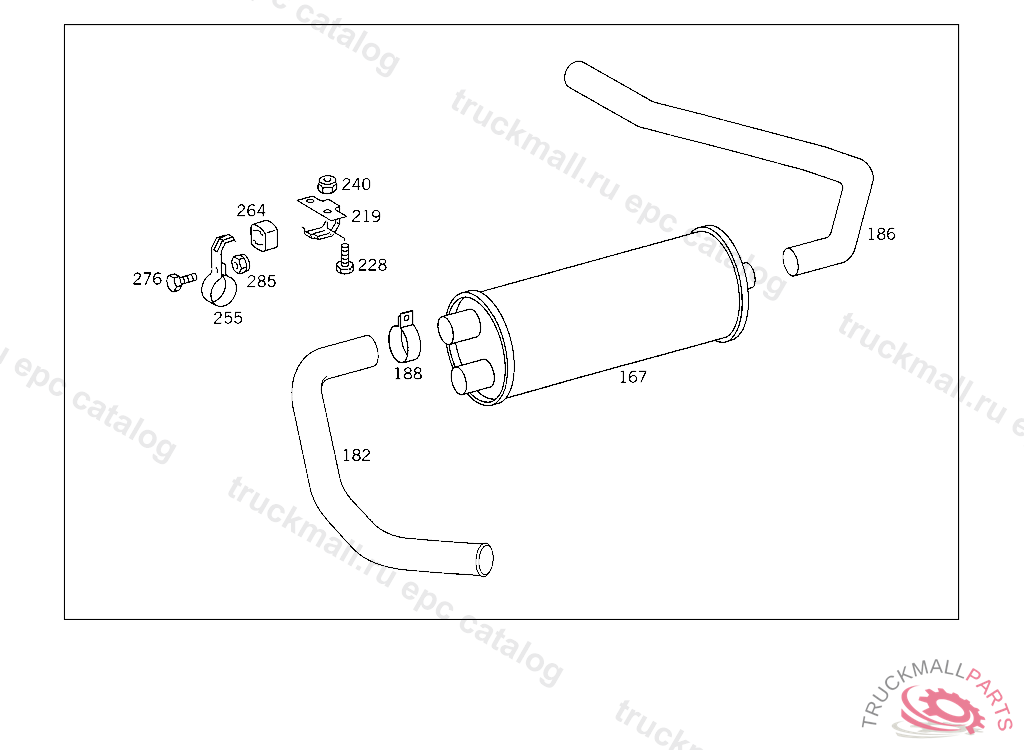

167
EXHAUST MUFFLER CENTRAL,5 191852
182
END PIECE TAIL PIPE,FRONT
182
END PIECE
182
END PIECE ,5 298309, Replaced By: A6164922214, +001A3814922641
186
END PIECE
186
END PIECE REAR EXHAUST PIPE
188
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
219
SUPPORT REAR EXHAUST MUFFLER
219
SUPPORT TAIL PIPE
228
SUPPORT REAR EXHAUST MUFFLER
228
SCREW SUPPORT TO CROSS MEMBER M 10X28
228
SCREW , Replaced By: N304017008034
228
SCREW , Replaced By: N304017010002
228
SCREW , Replaced By: N304017008027
228
SCREW BRACKET TO SIDE MEMBER
228
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
228
SCREW BRACKET TO CROSS CONNECTION STRUT
240
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
240
NUT SUPPORT TO SIDE MEMBER
240
NUT STRAP TO BRACKET
240
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
240
NUT , Replaced By: N910113010000
240
NUT , Replaced By: N913004008001
255
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
255
BRACKET , Replaced By: A3834927941
255
BRACKET , Replaced By: A3834927941
255
BRACKET , Replaced By: A6164920141
255
BRACKET EXHAUST PIPE,5 298310
255
BRACKET RUBBER BUFFER,5 129244
264
DAMPING PAD PARTICLE FILTER
276
SCREW BRACKET TO SIDE MEMBER
276
SCREW , Replaced By: N304017010002
276
SCREW SUPPORT TO CROSS MEMBER M 10X28
285
NUT , Replaced By: N910113010000
285
NUT STRAP TO BRACKET
999
BRACKET , Replaced By: A3834927941
999
CLAMP LINE MOUNTING
