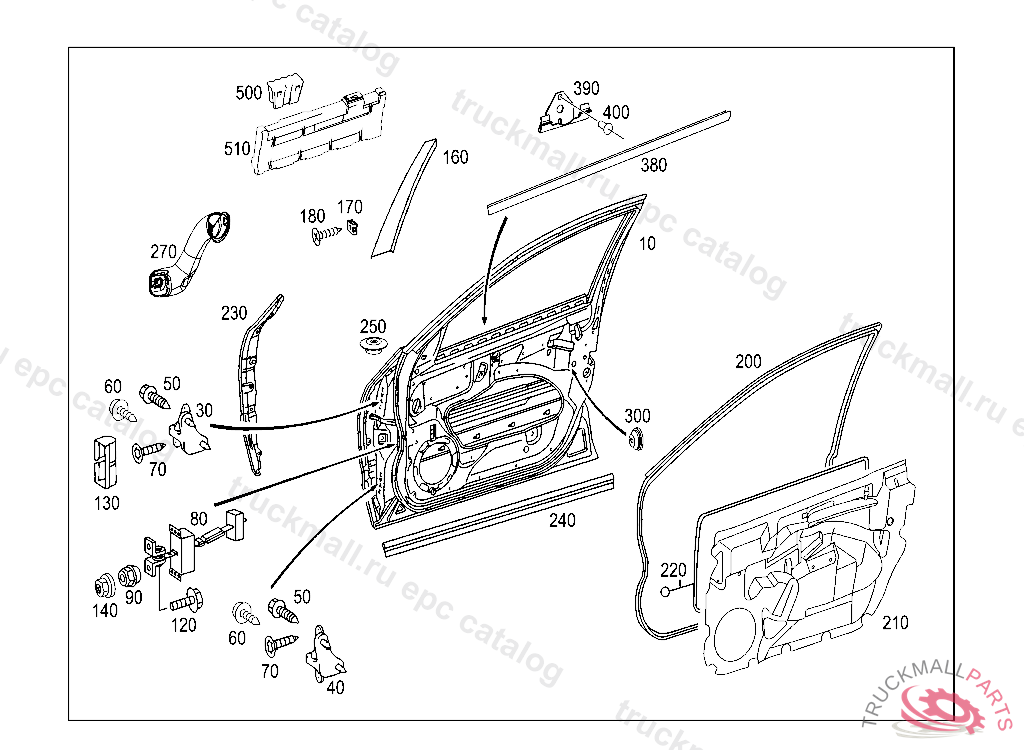

Поз.
Артикул
Описание
10
DOOR SHELL LEFT
10
DOOR SHELL RIGHT
30
HINGE LEFT TOP
30
HINGE RIGHT TOP
30
HINGE RIGHT TOP, Replaced By: A2117201637
30
HINGE LEFT TOP, Replaced By: A2117201537
40
HINGE RIGHT BOTTOM, Replaced By: A2117201837
40
HINGE LEFT BOTTOM, Replaced By: A2117201737
40
HINGE RIGHT BOTTOM
40
HINGE LEFT BOTTOM
50
BOLT HINGE ON A-PILLAR 8X27
50
BOLT HINGE TO BODY M8X25, A 00901919990831
60
BOLT RIGHT DOOR HINGE
60
BOLT TO HINGE, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0139902101
70
SCREW LOCKING EYE REAR FENDER
80
DOOR CHECK LEFT AND RIGHT
90
NUT , Replaced By: N913023006001
120
HEXALOBULAR BOLT OIL LINE TO CASE M6X20
130
COVER DOOR BRAKE ON B-PILLAR
140
CAP TO RIGHT DOOR HINGE SCREW
160
ORNAMENTAL COVER WINDOW FRAME,RIGHT, A 37029820030728 A 57335120040331 X 11082820031008
160
ORNAMENTAL COVER WINDOW FRAME,RIGHT, A 37029720030728 A 57335020040331 X 11082720031008
160
ORNAMENTAL COVER WINDOW FRAME,LEFT, A 37029820030728 A 57335120040331 X 11082820031008
160
ORNAMENTAL COVER WINDOW FRAME,LEFT, A 37029720030728 A 57335020040331 X 11082720031008
170
LOCK AT BRACKET,F 029921
180
TAPPING SCREW ROOF MOUNTED OPERATING UNIT
200
WEATHERSTRIP LEFT
200
WEATHERSTRIP RIGHT
210
WEATHERSTRIP RIGHT, TO BE ADAPTED DURING ASSEMBLY
210
WEATHERSTRIP LEFT
220
SEALING CORD DOOR, ORDER BY THE METER
230
SEAL RIGHT
230
SEAL LEFT
240
WEATHERSTRIP LEFT AND RIGHT
250
EXPANSION PLUG STEERING COLUMN END 20 MM,4 4307305 062722
270
GUIDE CABLE GUIDE DUCT,RIGHT
270
GUIDE DOOR FIXED WINDOW
300
SEAL DOOR LOCK CABLE PASSAGE
380
GARNISH MOULDING RIGHT,DOOR EDGE OUTSIDE, B 45000020090529
380
ORNAMENTAL TRIM LEFT, DOOR EDGE OUTSIDE, B 45000020090529 L 03500020090531
380
GARNISH MOULDING RIGHT,DOOR EDGE OUTSIDE, B 44999920090529 L 03499920090531 X 224019
380
GARNISH MOULDING LEFT, DOOR EDGE OUTSIDE, B 44999920090529 L 03499920090531 X 224019
390
CLIP GARNISH MOULDING TO FRONT DOOR EDGE
390
CLIP TRIM STRIP FASTENING, B 11811620070116 L 00705720061231 X 21775820060926
400
RIVET TRIM STRIP FASTENING
400
BLIND RIVET GRAB HANDLE BRACKET TO INTERIOR PLATE, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
500
SUPPORT INSIDE LEFT AND RIGHT
510
SUPPORT OUTSIDE RIGHT
510
SUPPORT OUTSIDE LEFT
