Поз.
Артикул
Описание

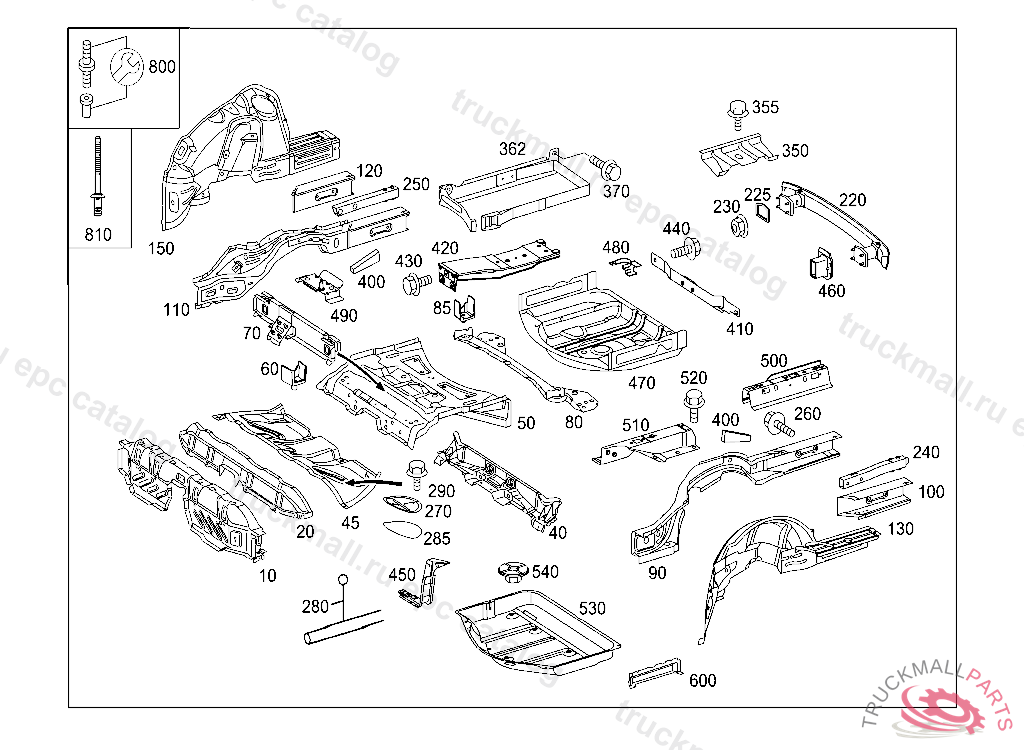

10
CROSS MEMBER UNDERNEATH REAR SEAT
20
REINFORCEMENT CROSS MEMBER BELOW REAR SEAT
40
CROSS MEMBER UNDER LOADING FLOOR
45
BOTTOM UNDERNEATH REAR SEAT
50
BOTTOM LOADING FLOOR,REAR
60
COVER PLATE AT CROSS MEMBER, REAR AXLE
70
CROSS MEMBER LOADING FLOOR,REAR
80
CROSS MEMBER ABOVE REAR AXLE
85
PLATE TO CROSS MEMBER ABOVE REAR AXLE
90
SIDE MEMBER REAR LEFT
100
SIDE MEMBER REAR LEFT
110
SIDE MEMBER REAR RIGHT
120
SIDE MEMBER REAR RIGHT
130
WHEELHOUSE REAR INSIDE, LEFT
150
WHEELHOUSE REAR INSIDE RIGHT
220
CROSS MEMBER REAR
220
CROSS MEMBER REAR
225
SEAL
230
NUT-AND-WASHER ASSEMBLY REINFORCEMENT TO SIDE MEMBER M10, A 97499920070630809 E 06000020080901809
240
REINFORCEMENT LEFT
240
REINFORCEMENT LEFT, Replaced By: A2116105925
250
REINFORCEMENT , Replaced By: A2116106025
250
REINFORCEMENT
260
SCREW-AND-WASHER ASSEMBLY REINFORCEMENT FASTENING M10X25
270
COVER FLOOR BELOW REAR SEAT, Replaced By: A2116192438
270
COVER LEFT AND RIGHT
280
SEALING CORD , ORDER BY THE METER
285
INSULATION COVERING
290
SCREW
350
RAIL BATTERY TO SPARE WHEEL RECESS
350
RAIL BATTERY MOUNTING
355
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
362
BRACKET BATTERY FASTENING
370
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
400
REINFORCEMENT REINFORCEMENT OF UPPER AIR SUSPENSION MOUNT, NO LONGER AVAILABLE OBSERVE WIS
410
REINFORCEMENT
420
REINFORCEMENT
430
HEXALOBULAR BOLT EXPANSION TANK M8X20
440
SCREW BRACKET TO SIDE MEMBER M8X20
450
CONSOLE LEFT
450
CONSOLE RIGHT
460
REINFORCEMENT REAR LEFT
460
REINFORCEMENT REAR RIGHT
470
SPARE WHEEL WELL
480
CONSOLE
490
CONSOLE RIGHT
490
CONSOLE
500
REINFORCEMENT REAR RIGHT
500
REINFORCEMENT REAR RIGHT
500
REINFORCEMENT
510
REINFORCEMENT LEFT
510
REINFORCEMENT
510
REINFORCEMENT RIGHT
520
BOLT BELT END FITTINGS, RIGHT 7/16" X 22 MM
520
HEXALOBULAR BOLTM8X16
530
COVER
540
PLASTIC NUT. NUT
600
END PIECE RIGHT
600
END PIECE LEFT
800
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
810
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
