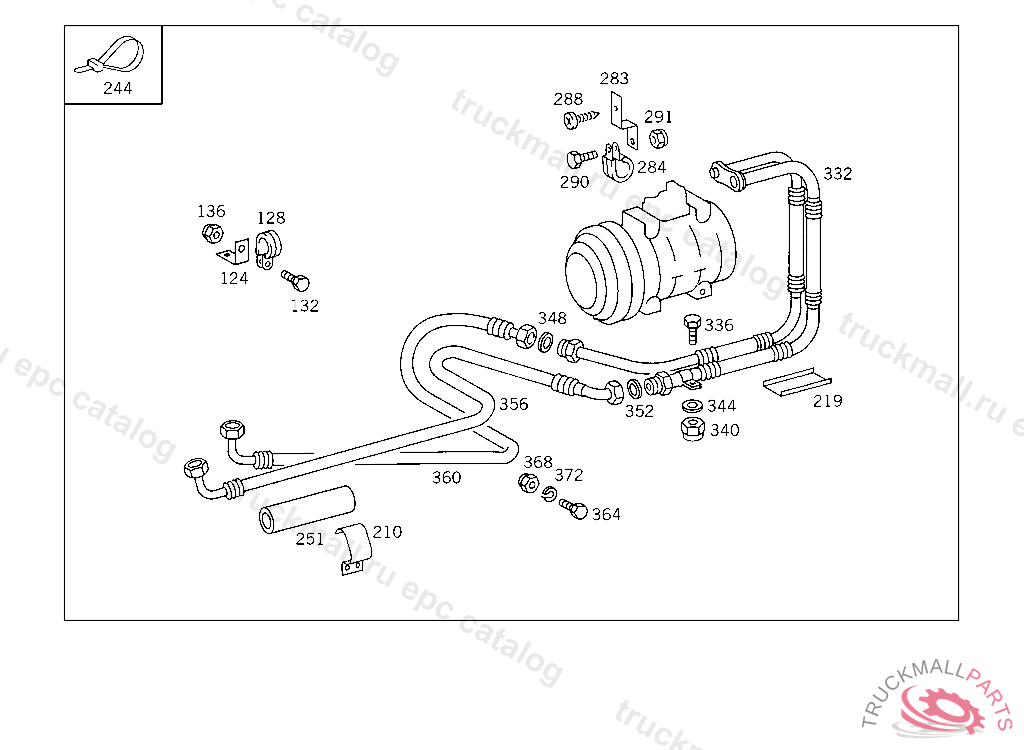

Поз.
Артикул
Описание
124
BRACKET REFRIGERANT LINE
128
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
128
CLAMP DELIVERY AND SUCTION LINES TO FRAME
128
CLAMP PIPE ON FAN SHROUD
132
SCREW , Replaced By: N304017006016
132
SCREW PUMP TO BRACKET
136
NUT , Replaced By: N913004006001
136
NUT PUMP TO BRACKET
210
CLAMP HOSE TO FIRE WALL
219
PAD CONNECTING CABLE, ORDER BY THE METER
244
LOOM TIE LINE MOUNTING 280 MM
244
LOOM TIE LINE MOUNTING 280 MM
244
LOOM TIE LINE MOUNTING 280 MM
251
INSULATING HOSE , Replaced By: A0015462630
251
HOSE , Replaced By: A0015464730
251
INSULATING HOSE BATTERY CABLE
283
BRACKET PIPE LINE TO CAB FLOOR
284
CLAMP BRAKE HOSE BRACKET
284
CLAMP LINE MOUNTING
288
SHEET METAL SCREW BOOT TO CAB FLOOR
288
SHEET METAL SCREW BOOT TO CAB FLOOR
290
SCREW , Replaced By: N304017006020
290
SCREW LICENSE PLATE TO BRACKET
291
NUT , Replaced By: N913004006001
291
NUT PUMP TO BRACKET
332
HOSE FROM COMPRESSOR TO RADIATOR SEPARATION POINT
332
HOSE FROM COMPRESSOR TO RADIATOR SEPARATION POINT
336
SCREW , Replaced By: N304017006016
336
SCREW PUMP TO BRACKET
340
NUT , Replaced By: N913004006001
340
NUT PUMP TO BRACKET
344
WASHER COMPRESSED AIR LINE TO BRACKET
344
WASHER , Replaced By: N009021006208
348
O-RING HOSE TO EXPANSION VALVE 17X2
352
SEAL RING HOSE TO CONDENSER 14 MM
356
HOSE CONNECTING CABLE HOCHDRUCK
360
HOSE CONNECTING CABLE NIEDERDRUCK
364
SCREW , Replaced By: N304017006020
364
SCREW CAB FLOOR COVERING M 6X25
364
SCREW LICENSE PLATE TO BRACKET
364
SCREW PUMP TO BRACKET
364
SCREW , Replaced By: N304017006016
368
NUT PUMP TO BRACKET
368
NUT , Replaced By: N913004006001
372
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 411349, Replaced By: A6458321223
999
BRACKET HOSE TO RADIATOR
999
BRACKET REFRIGERANT LINE TO CAB FLOOR
999
BRACKET PIPE LINE TO CAB FLOOR
999
SEAL RING , Replaced By: A1409970945
999
SEAL RING , Replaced By: A1409970845
999
SEAL RING , Replaced By: A1249970345
999
SEAL RING , Replaced By: A1249970545
