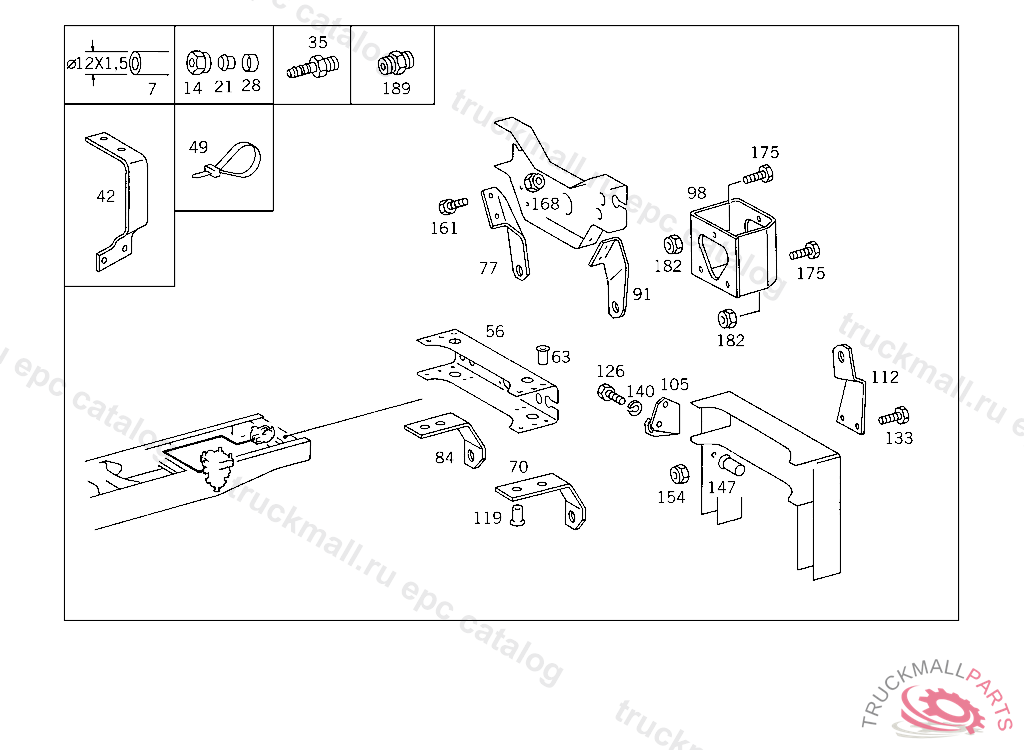

Поз.
Артикул
Описание
7
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
7
HOSE , Replaced By: A0009872827
14
UNION NUT LINE CONNECTION
14
UNION NUT LINE CONNECTION, Replaced By: N000000006239
21
GLAND , Replaced By: A0019901967
21
SEAL CONE LINE CONNECTION
28
SLEEVE LINE CONNECTION
35
FITTING , Replaced By: N915059010001
35
FITTING BULKHEAD FITTING,CONNECTION: "10"
42
BRACKET TO MOUNT PLASTIC PIPING
49
LOOM TIE , Replaced By: A0019978490
49
LOOM TIE LINE MOUNTING
56
CROSS MEMBER (REAR CROSS MEMBER)
63
RIVET FRAME TRUSS TO SIDE MEMBER
70
BRACKET BRAKE LINE COUPLING,"SUPPLY",K 119510
70
BRACKET , Replaced By: A6204298240
77
BRACKET RIGHT BRAKE LINE COUPLING,5 561191
84
BRACKET BRAKE LINE COUPLING,"SUPPLY",K 119510
91
BRACKET LEFT BRAKE LINE COUPLING,5 561191
98
BRACKET DOUBLE BRAKE LINE COUPLING,K 119510
98
BRACKET DOUBLE BRAKE LINE COUPLING,K 119510
105
BRACKET BRAKE LINE COUPLING,K 119510
112
BRACKET BRAKE LINE COUPLING,K 119510
119
RIVET FRAME TRUSS TO SIDE MEMBER
119
RIVET REAR CROSS MEMBER 12X42 MM
126
SCREW REAR EXHAUST PIPE TO MUFFLER
133
SCREW , Replaced By: N304017008021
133
SCREW PIPE CLAMP
140
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
147
RIVETED NUT BRACKET TO UNDERRUN PROTECTION
154
NUT , Replaced By: N913004008001
154
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
161
SCREW , Replaced By: N304017008021
161
SCREW PIPE CLAMP
168
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
168
NUT , Replaced By: N913004008001
175
SCREW SUPPORT TO CROSS MEMBER M 10X28
175
SCREW SUPPORT TO CROSS MEMBER M 10X28
182
NUT , Replaced By: N910113010000
182
NUT STRAP TO BRACKET
182
NUT STRAP TO BRACKET
189
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
189
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
999
BRACKET , Replaced By: A3874292140
999
BRACKET DOUBLE BRAKE LINE COUPLING TO REAR CROSS MEMBER,K 119510
999
BRACKET AT FRAME
