Поз.
Артикул
Описание

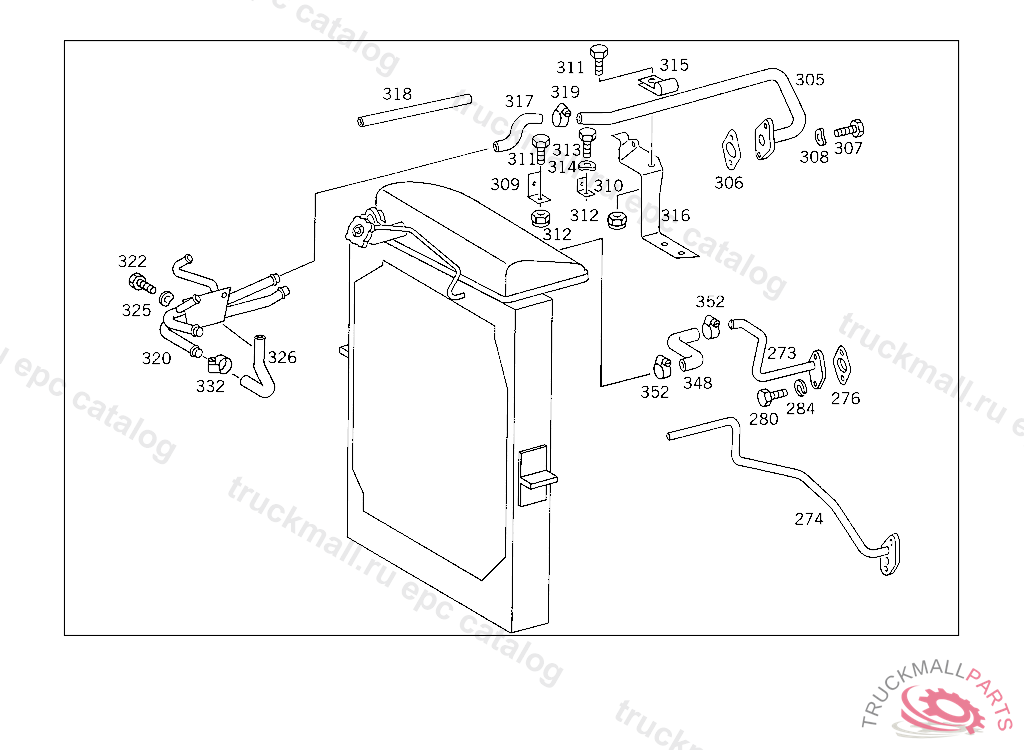

273
FLANGE DE-AERATION,5 301948
276
GASKET. SEAL DE-AERATION PIPE TO ENGINE
280
SCREW END PIECE TO EXHAUST PIPE M 10X25
284
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
305
LINE HEATING PIPE
305
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
306
GASKET HEATING PIPE TO ENGINE
307
SCREW EXHAUST PIPE TO BRACKET
308
SPRING WASHER , Replaced By: N000137008212
308
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
309
BRACKET HEATING PIPE TO FAN SHROUD BRACKET
311
SCREW COVER PLATE TO BRACKET
312
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
312
NUT , Replaced By: N910113006001
313
SCREW EXHAUST PIPE TO BRACKET
314
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
314
SPRING WASHER , Replaced By: N000137008212
315
CLAMP FEED LINE TO THERMOSTAT
316
BRACKET HEATING PIPE
317
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
317
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
318
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
319
CLAMP , Replaced By: N000000000667
319
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
320
LINE HEATING AND BREATHING
320
LINE (HEATING PIPE)
322
SCREW , Replaced By: N304017006016
322
SCREW PUMP TO BRACKET
325
SPRING WASHER LICENSE PLATE TO BRACKET
326
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
332
CLAMP , Replaced By: N000000000667
332
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
348
HOSE BETWEEN DE-AERATION LINE AND EXPANSION TANK
352
CLAMP , Replaced By: N000000000667
352
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
CLAMP , Replaced By: N916017011000
999
SCREW PLUG , Replaced By: N007604014101
999
HOSE , Replaced By: A0219977682
999
HOSE , Replaced By: A0139978682
999
HOSE
999
GASKET , Replaced By: A4422010480
999
LINE , Replaced By: A6205002872
999
LINE , Replaced By: A6205003072
999
CONNECTOR , Replaced By: A6205010323
999
PIPE ELBOW AT WATER PUMP,5 193594
999
CONNECTOR , Replaced By: A6205010423
999
PIPE ELBOW , Replaced By: A6205010556
999
PIPE ELBOW , Replaced By: A6555010756
999
HOSE , Replaced By: A6205012882
999
HOSE , Replaced By: A6555011282
999
RUBBER MOUNTING , Replaced By: A6205040112
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
SCREW , Replaced By: A4609900601
