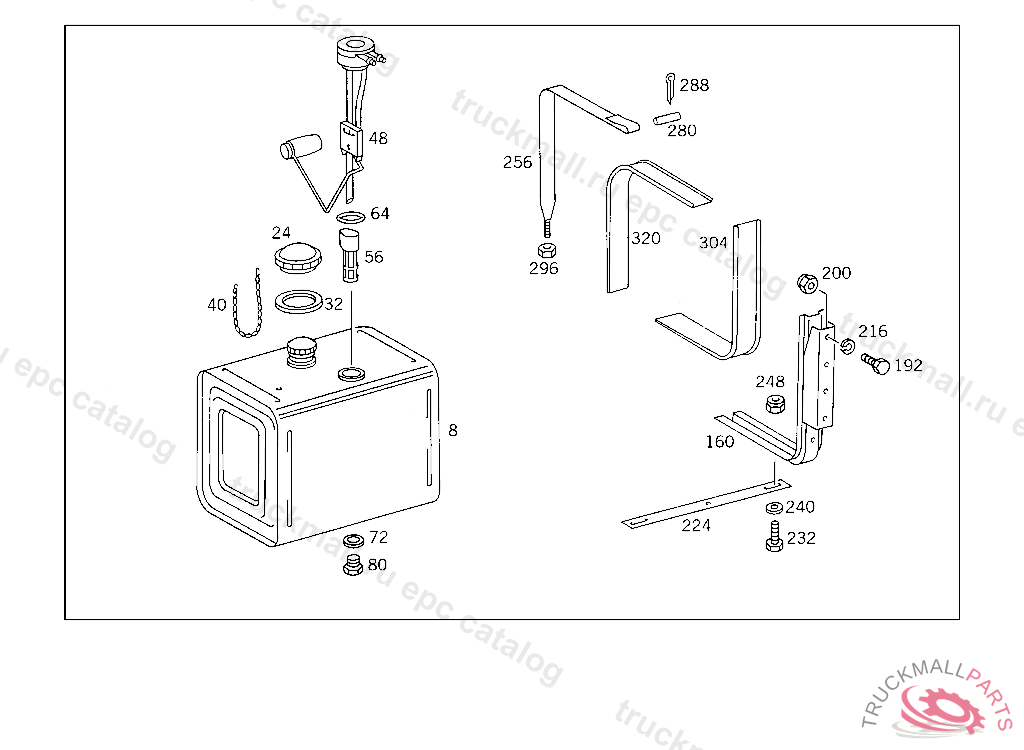

Поз.
Артикул
Описание
8
FUEL TANK200 L
24
FILLER CAP , Replaced By: A0004700305
24
FILLER CAP
24
FILLER CAP , Replaced By: A0004700305
32
SEAL RING
40
CHAIN FILLER CAP
48
SENDER UNIT , Replaced By: A0085428117
48
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426517, +001A0005409917
48
SENDER UNIT , Replaced By: A0085428017
48
SENDER UNIT FUEL GAUGE
56
FUEL STRAINER FUEL TANK,K 169122
64
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
72
SEAL RING FUEL LINE TO FEED PUMP
80
SCREW PLUG , Replaced By: N007604014110
80
SCREW PLUG FUEL TANK
160
SUPPORT FUEL TANK TO FRAME
192
SCREW , Replaced By: A9429901304
192
SCREW APPARATUS SUPPORT TO FRAME
192
SCREW , Replaced By: N308676014003
192
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
192
SCREW , Replaced By: N308676014008
192
SCREW MOUNTING TO CONSOLE M 14X35
192
SCREW GUSSET PLATE TO SIDE MEMBER M 14X28
200
NUT , Replaced By: N910113014000
200
NUT STEERING SUPPORT TO FRAME
200
NUT STEERING SUPPORT TO FRAME
216
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
224
REINFORCEMENT FUEL TANK CONSOLE
224
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE
224
REINFORCEMENT SUPPORT TO CONSOLE,5 497851
232
SCREW , Replaced By: N308676012013
232
HEXAGON HEAD BOLT , Replaced By: A0029902704
232
SCREW CONSOLE TO SIDE MEMBER
240
WASHER
248
NUT SUPPORT TO SIDE MEMBER
256
STRAP FUEL TANK TO SUPPORT
280
PIN STRAP TO SUPPORT
288
COTTER PIN STRAP TO SUPPORT
288
COTTER PIN STRAP TO SUPPORT
296
NUT STRAP TO SUPPORT
304
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
320
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
