Поз.
Артикул
Описание

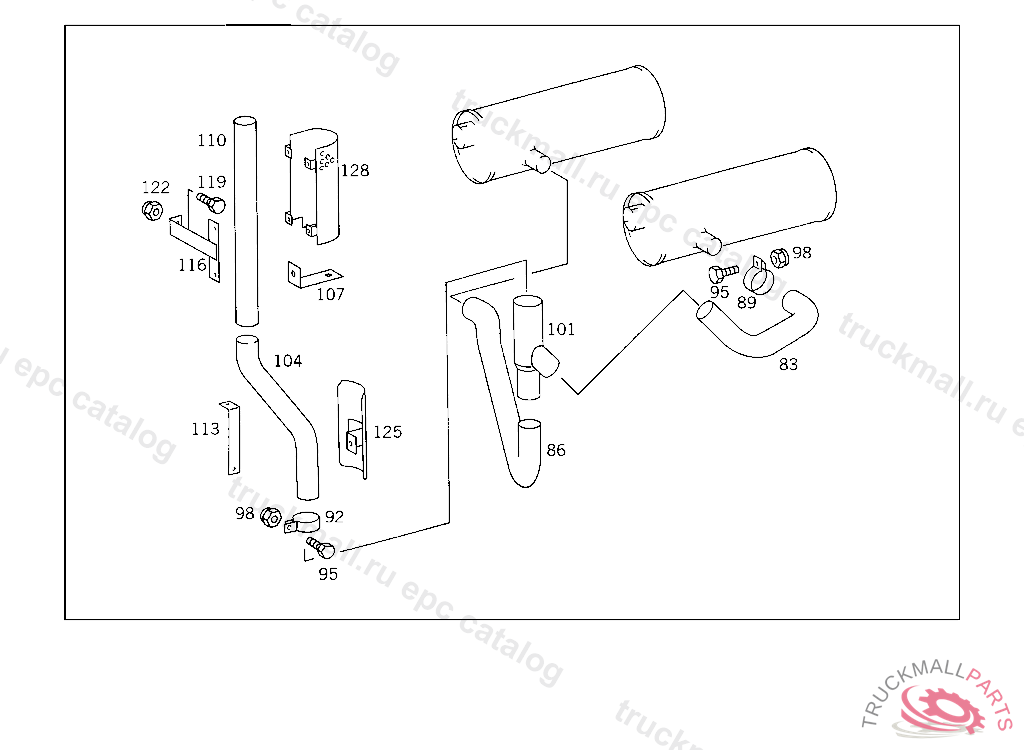

83
REAR EXHAUST PIPE BEHIND EXHAUST MUFFLER
86
REAR EXHAUST PIPE BEHIND EXHAUST MUFFLER
89
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
92
CLAMP , Replaced By: N071555100501
92
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
95
SCREW , Replaced By: N304017010002
95
SCREW BRACKET TO SIDE MEMBER
98
NUT , Replaced By: N910113010000
98
NUT STRAP TO BRACKET
101
FITTING LEFT EXHAUST PIPE TO RIGHT EXHAUST PIPE
104
REAR EXHAUST PIPE FROM CONNECTOR TO CAB REAR PANEL
107
ANGLE EXHAUST PIPE TO CROSS MEMBER
110
REAR EXHAUST PIPE UPWARD
110
EXHAUST PIPE , Replaced By: A6994929404
113
BRACKET EXHAUST PIPE TO CROSS MEMBER
116
BRACKET EXHAUST PIPE TO SIDE MEMBER
119
SCREW BRACKET TO CAB CONSOLE,K 035197
122
NUT , Replaced By: N910113014001
122
NUT BRACKET TO SIDE MEMBER
125
PROTECTIVE PLATE FUEL TANK
128
PROTECTIVE PLATE EXHAUST PIPE
