Поз.
Артикул
Описание

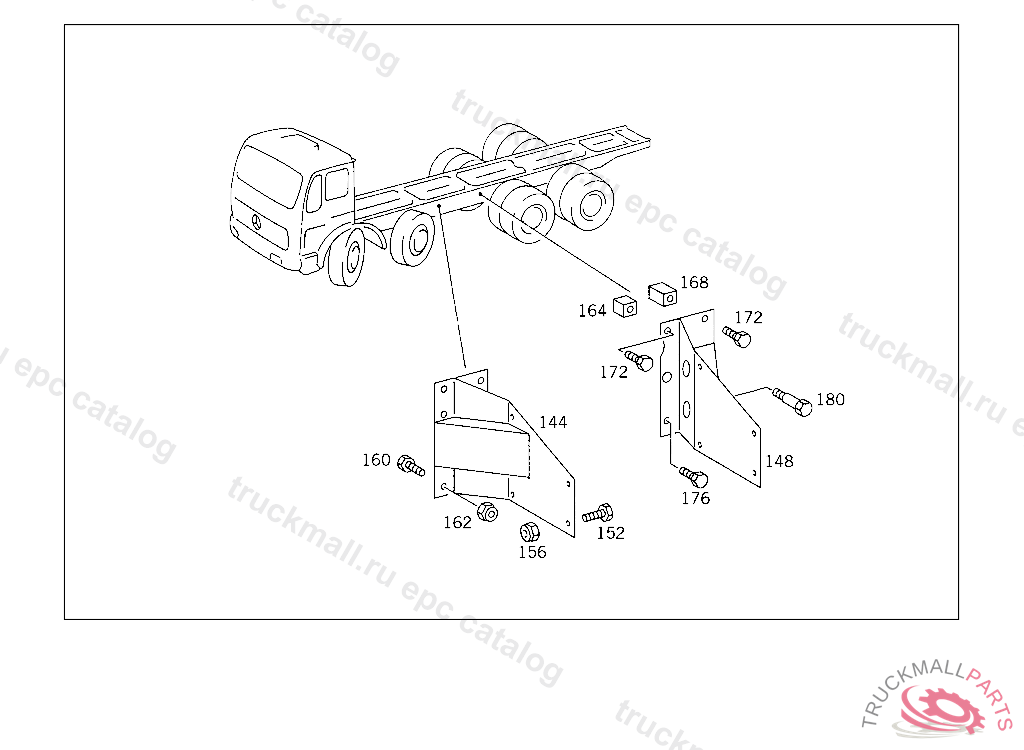

144
BATTERY SUPPORT FRONT
148
BATTERY SUPPORT REAR
148
BATTERY SUPPORT , Replaced By: A6995401716
152
SCREW , Replaced By: A0079901001
152
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
156
HEXAGON NUT
156
NUT , Replaced By: N910113010002
160
SCREW , Replaced By: A9429901304
160
SCREW APPARATUS SUPPORT TO FRAME
162
NUT STEERING SUPPORT TO FRAME
162
NUT , Replaced By: N910113014000
164
SPACER TUBE BATTERY SUPPORT TO FRAME 33 MM
168
SPACER TUBE BATTERY SUPPORT TO FRAME
172
SCREW SUPPORT TO SIDE MEMBER M 14X90
172
SCREW , Replaced By: N308765014006
176
SCREW , Replaced By: N308765016002
176
HEXAGON HEAD BOLT. SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734466
180
SCREW BEARING BRACKET TO SIDE MEMBER
180
SCREW BEARING BRACKET
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
FITTING LEFT AND RIGHT BRAKE HOSES
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
999
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
999
ELBOW FITTING , Replaced By: A0004294638
999
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
999
ADAPTER FITTING , Replaced By: A0069970072
999
REPAIR KIT BRAKE POWER REGULATOR TO 002 431 05 12,KNORR
999
REPAIR KIT , Replaced By: A0004300207
999
REPAIR KIT PRESSURE REGULATOR BOSCH,241
999
CONNECTOR PULL ROD TO LEVER
999
METAL SPRING BELLOWS ,4 9579425 498312
999
VALVE
999
RESERVOIR , Replaced By: A0034322301
999
RESERVOIR , Replaced By: A0034321401
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
PLUG
999
REPAIR KIT PRESSURE REGULATOR WABCO
999
VALVE (REGULATING VALVE),5 023386 TO BE ADAPTED DURING ASSEMBLY
999
REPAIR KIT PRESSURE RATIO VALVE
999
RESERVOIR , Replaced By: A0034322101
999
SEALING CORD38X8 MM
999
BANJO UNION FROM BULKHEAD FITTING TO PRESSURE REGULATOR
999
ELBOW FITTING DELIVERY LINE TO PUMP
999
FITTING AIR RESERVOIR,CONNECTION: "11"
999
FITTING AIR RESERVOIR,CONNECTION: "13"
999
FITTING SHUTTLE VALVE,CONNECTION: "20"
999
FITTING SHUTTLE VALVE,CONNECTION: "20",5 727399
999
VALVE (PRESSURE RATIO VALVE) FRONT AXLE BRAKE PRESSURE WABCO
999
FITTING DELIVERY LINE TO PUMP
999
RESERVOIR40L,246 MM,8.5 BAR
999
FITTING RELAY VALVE,CONNECTION "20",LEFT
999
FITTING SHUTTLE VALVE,CONNECTION: "20",5 434013
999
SEAL RING34.6X2.6 MM
999
SEAL RING28.4X2.6 MM
999
SEAL RING56X1.7 MM
999
CLAMP 3/2-WAY SOLENOID VALVE
999
RESERVOIR , Replaced By: A3454308205
999
CONNECTOR , Replaced By: A0004310735
999
BASE AIR RESERVOIR,5 317650
999
WASHER CONSOLE TO FRAME
999
BRACKET LINE TO REAR AXLE, NOT USED
999
BRACKET BRAKE POWER REGULATOR
999
BRACKET AIR RESERVOIR TO FRAME
999
SHIM BRACKET TO FRAME
999
SUPPORT AIR RESERVOIR,5 270877
999
WASHER SHOCK ABSORBER TO UPPER BEARING BRACKET
999
STRAP ,K 093236
999
LINE , Replaced By: A6254293501
999
BRACKET METAL SPRING BELLOWS
999
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
999
LINE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER
999
BRACKET PRESSURE REGULATOR
999
SUPPORT AIR RESERVOIR
999
STRAP AIR RESERVOIR TO SUPPORT OBEN
999
SUPPORT RIGHT AIR RESERVOIR
999
STRAP AIR RESERVOIR TO APPARATUS SUPPORT
999
SUPPORT AIR RESERVOIR
999
STRAP AIR RESERVOIR TO SUPPORT, SIMPLE PART-PLEASE HAVE SHOP MADE
999
STRAP RESERVOIR TO SUPPORT
999
SUPPORT AIR RESERVOIR
999
BRACKET APPARATUS SUPPORT TO FRAME SIDE MEMBER
999
BRACKET APPARATUS SUPPORT TO FRAME SIDE MEMBER
999
SUPPORT AIR RESERVOIR TO CROSS MEMBER
999
COVERING AIR RESERVOIR
999
BASE AIR RESERVOIR
999
BRACKET COVER PLATE TO SUPPORT
999
BRACKET COVER PLATE TO SUPPORT
999
BRACKET APPARATUS SUPPORT TO FRAME SIDE MEMBER
999
BRACKET APPARATUS SUPPORT TO FRAME SIDE MEMBER
999
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER BRACKET TO CROSS MEMBER
999
SCREW PLUG AIR RESERVOIR,CONNECTION:
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
999
SCREW PLUG , Replaced By: N000908022011
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
SCREW , Replaced By: N000933008134
999
SCREW , Replaced By: N304017006020
999
SCREW FRONT AXLE REGULATING SOLENOID VALVE
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017010002
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
NUT , Replaced By: N304032008006
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SCREW BRACKET TO CAB FLOOR M 8X20
999
SCREW , Replaced By: A0079901001
999
SCREW , Replaced By: N308676010023
999
SCREW BRACKET TO TORSION BAR,4 9511495 554754
999
SCREW SUPPORT TO SIDE MEMBER
999
SCREW BRACKET TO CROSS MEMBER
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW , Replaced By: A9429901304
999
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X48
999
SCREW , Replaced By: N308676016006
999
GLAND LINE CONNECTION
999
BULKHEAD FITTING THROUGH SIDE MEMBER
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
999
FITTING , Replaced By: A0019902771
999
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
999
SEAL RING LINE CONNECTION
999
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
999
SCREW CLAMP TO BRACKET
999
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
999
NUT CHECK VALVE TO AIR RESERVOIR
999
SCREW LICENSE PLATE TO BRACKET
999
SCREW PIPE CLAMP
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW BRACKET TO SIDE MEMBER
999
NUT
999
SCREW BRACKET TO CROSS MEMBER M 10X40
999
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
999
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
999
NUT STRAP TO BRACKET
999
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
999
LOCK WASHER FITTING TO BRACKET
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT BRACKET TO CAB FLOOR
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N910113010002
999
NUT AIR RESERVOIR TO SUPPORT
999
NUT , Replaced By: N910113012003
999
NUT , Replaced By: N910113014000
999
UNION NUT LINE CONNECTION
999
UNION NUT BUTT SCREW CONNECTION
999
HOLLOW SCREW HEATING CONNECTION
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
999
SEAL RING , Replaced By: N007603012121
999
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
999
THRUST RING BUTT SCREW CONNECTION
999
CLAMP LINE MOUNTING
999
CLAMP , Replaced By: N000000000665
