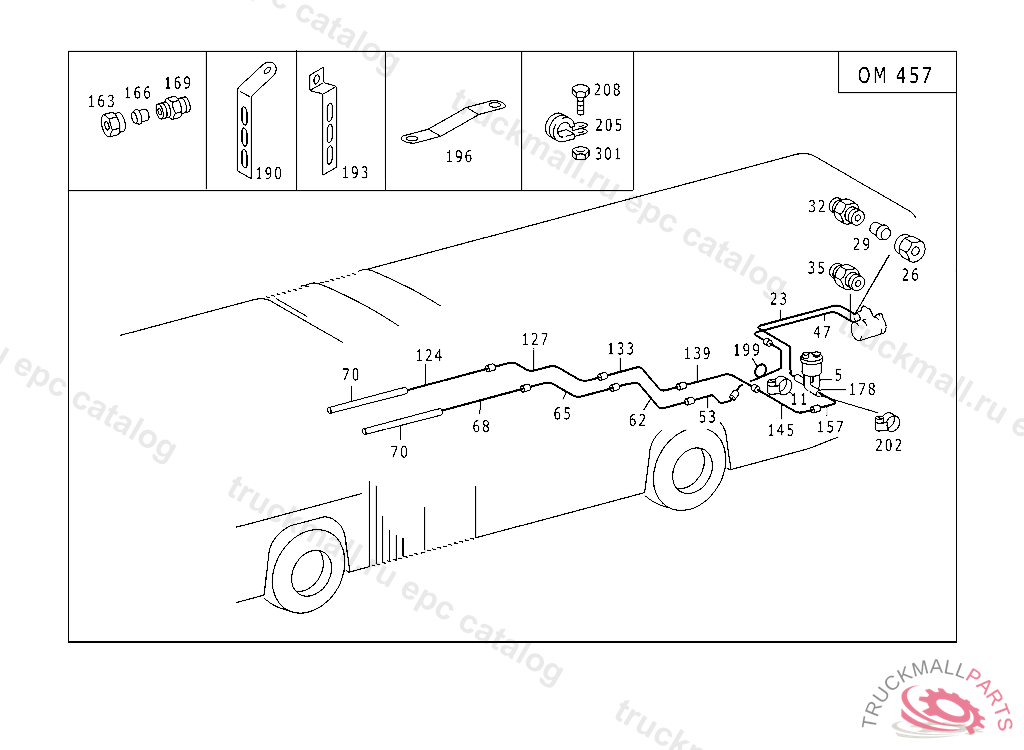

Поз.
Артикул
Описание
5
HOSE FROM LINE TO OIL TANK
11
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
26
UNION NUTAL22
26
NUT LINE CONNECTION
26
UNION NUT LINE CONNECTION, Replaced By: N000000006243
29
CUTTING RINGBL22, Replaced By: A0019970317
29
GLAND , Replaced By: A0019901267
29
SEAL CONE LINE CONNECTION
29
GLANDBL22
32
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
35
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
65
LINE FROM CONNECTOR III TO CONNECTOR IV
68
LINE FROM CONNECTOR IV TO HOSE
70
HYDRAULIC LINE FEED LINE AND RETURN LINE IN RING MOUNT
124
LINE FROM CONNECTOR IV TO HOSE
127
LINE LOW PRESSURE LINES 1795 MM
163
NUT LINE CONNECTIONS AL 15
163
UNION NUT LINE CONNECTION
166
GLAND LINE CONNECTION
169
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
178
HOSE FROM RETURN LINE TO OIL TANK
193
BRACKET LOW PRESSURE LINES
199
EXPANSION HOSE FROM POWER STEERING PUMP AT ENGINE TO CUT-IN VALVE
199
HOSE , Replaced By: A0269972582
202
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
205
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RSGU 20/15
205
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
205
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
205
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 25/15 MM
205
MOUNTING CLAMP22/15
205
CLAMP LINE MOUNTING 15-18 MM,V 207570
205
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
205
CLAMP22/15, Replaced By: A0019951442
205
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
205
CLAMP COMPRESSED AIR LINE TO TRANSMISSION COVER 25/15
205
CLAMP LINE MOUNTING
205
CLAMP BRAKE HOSE BRACKET
205
CLAMP PIPE ON FAN SHROUD
205
CLAMP DELIVERY AND SUCTION LINES TO FRAME
205
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
205
CLAMP HOSE TO FLANGE AND TO VALVE
208
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
208
HEXAGON HEAD BOLT COVERING TO CAB
301
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
301
NUT BRACKET TO STOP
999
HOSE LOW PRESSURE
999
LINE HIGH PRESSURE LINE 2020 MM,104603
999
LINE FROM T-FITTING TO TEST CONNECTION 200 MM
999
LINE HIGH PRESSURE LINE 610 MM
999
LINE FROM CONNECTOR VIII TO CONNECTOR IX 1310 MM
999
LINE HIGH PRESSURE LINE 4010 MM
999
LINE FROM CONNECTOR XI TO CONNECTOR XII 870 MM
999
LINE HOSE TO CONNECTOR XII
999
LINE ,104461
999
LINE DELIVERY LINE TO STEERING GEAR 1129.7 MM,104604
999
SCREW-IN FITTING , Replaced By: N003901015005
999
T-FITTING LINE CONNECTIONS
