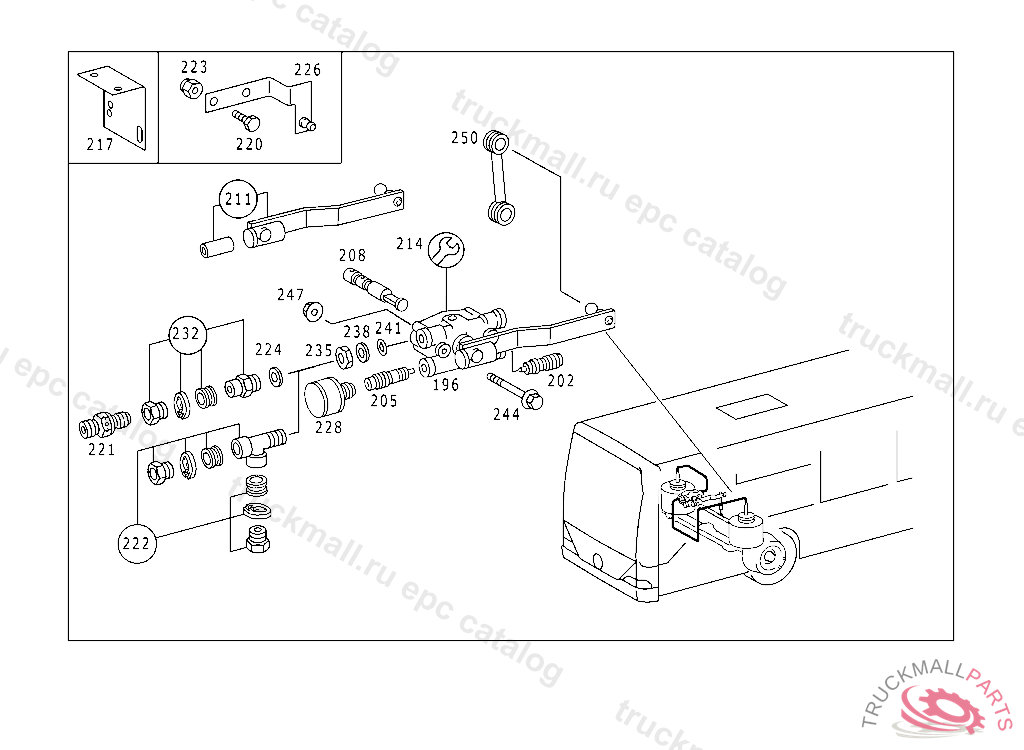

Поз.
Артикул
Описание
196
VALVE FRONT AXLE LEVEL ADJUSTMENT BOSCH
202
VALVE INTAKE
205
VALVE EXHAUST
208
SHAFT87 MM
211
LEVER (PARTS KIT)
214
REPAIR KIT
217
BRACKET FRONT AXLE LEVEL ADJUSTMENT VALVE
220
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
221
VALVE LEVEL ADJUSTMENT VALVE,CONNECTION: "10"
222
FITTING TEST CONNECTIONS
223
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
224
SEAL RING 3/2-WAY VALVE
226
BRACKET ON LEVEL ADJUSTMENT VALVE LEVER
228
BREATHER FILTER. FILTER TRAILER CONTROL VALVE,CONNECTION: "4"
232
FITTING COMPRESSED AIR LINE TO TRANSMISSION VOSS
235
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
238
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
238
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
241
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
244
HEXAGON HEAD BOLT. SCREW CLUTCH PRESSURE PLATE TO FLYWHEEL M 8X1,25X60
247
NUT HORN TO BRACKET M8
250
ROD
