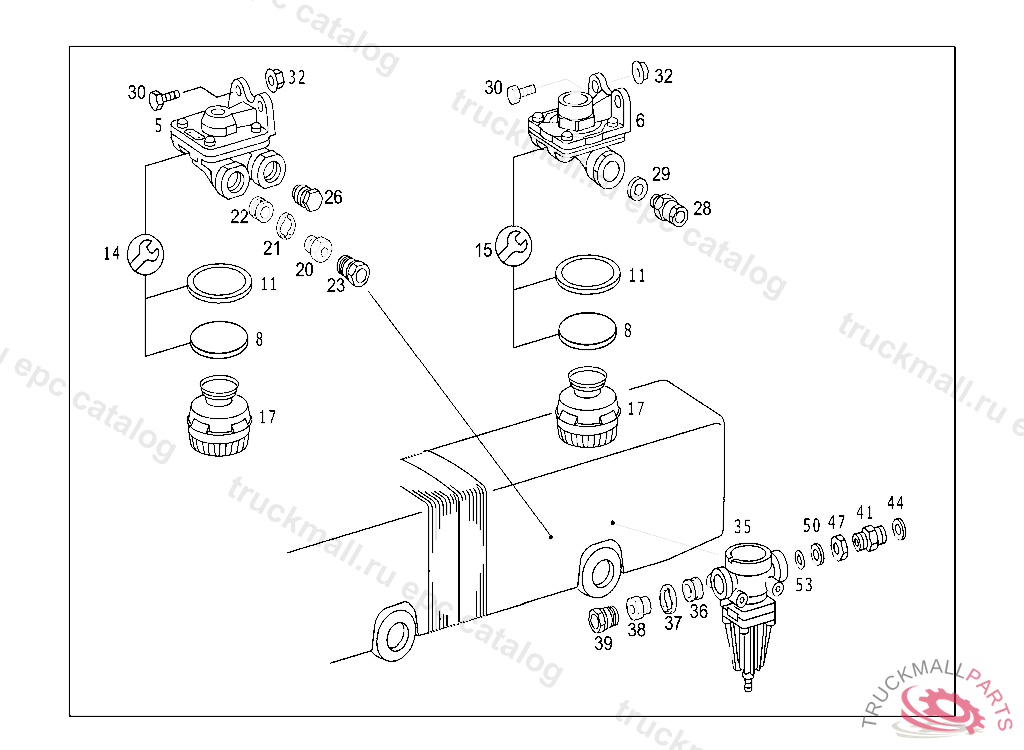

Поз.
Артикул
Описание
20
SCREW. UNION SCREW LINE CONNECTION
21
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
22
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
23
RETAINING SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M22, VOSS 232
23
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
29
SEAL RING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: "1"
30
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
32
NUT HORN TO BRACKET M8
36
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
37
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
38
SCREW. UNION SCREW LINE CONNECTION
39
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
39
RETAINING SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M22, VOSS 232
44
SEAL RING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: "1"
47
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
47
NUT CHECK VALVE TO AIR RESERVOIR
50
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
50
THRUST RING CHECK VALVE TO AIR RESERVOIR
53
O-RING CHECK VALVE TO AIR RESERVOIR
