Mercedes A6324310840 - Halter

TRAVEGO 17 SHD 3 - ACHSER 632.287

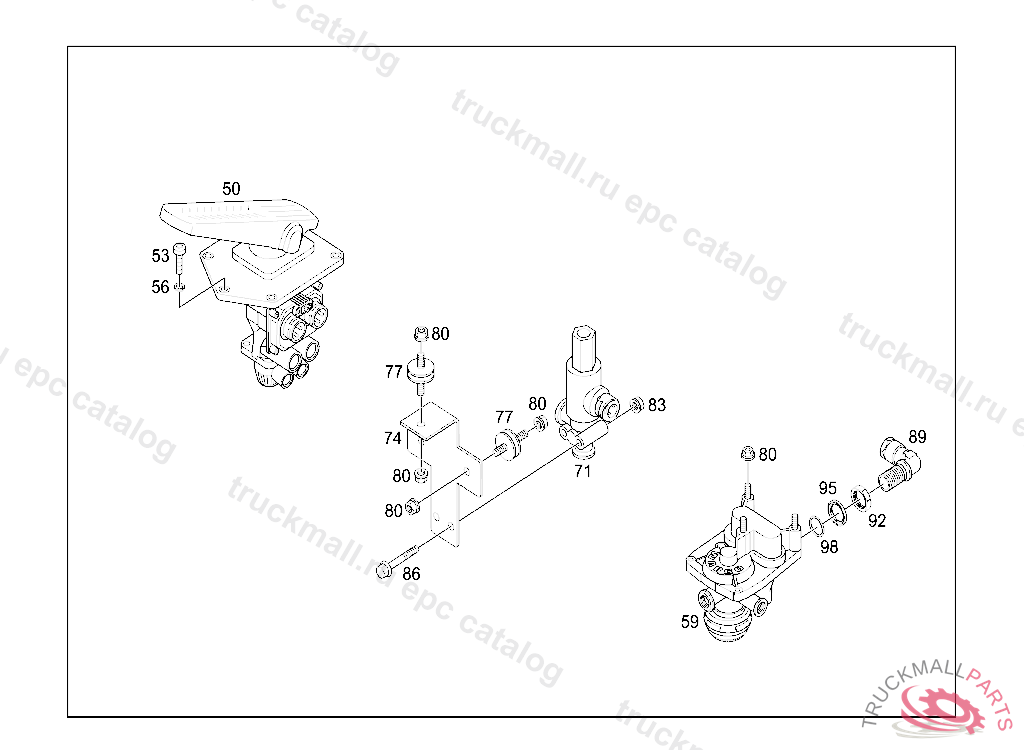

42 BRAKES - 380 SERVICE BRAKE VALVE,RELAY VALVE, TWO-WAY VALVE IL. 2

Поз.
Артикул
Описание
50
A0034319806
VALVE (BRAKE POWER SENSOR) SERVICE BRAKE
53
A0039909212
SCREW GRIP RAIL MOUNTING M8X25 TX45
56
A0009943710
LOCK LEVER TO TRANSMISSION
59
A0054298944
PROPORTIONING VALVE (RELAY VALVE),FRONT AXLE 12.5BAR
71
A0059976736
VALVE (3/2-WAY SOLENOID VALVE)
74
A6324310840
BRACKET
77
A3225040212
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
80
N913023008003
NUT HORN TO BRACKET M8
80
N913023008002
NUT ENGINE MOUNTING M8
83
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
86
N910143008017
SCREW 3/2-WAY VALVE TO BRACKET
86
N910105008045
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
89
A0009978270
FITTINGNG12/M22X1.5
92
N000000006644
NUT FITTING TO BRACKET,230274
95
A0009940203
THRUST RING CHECK VALVE TO AIR RESERVOIR
98
A0129971445
SEAL RING20.3X2.4
