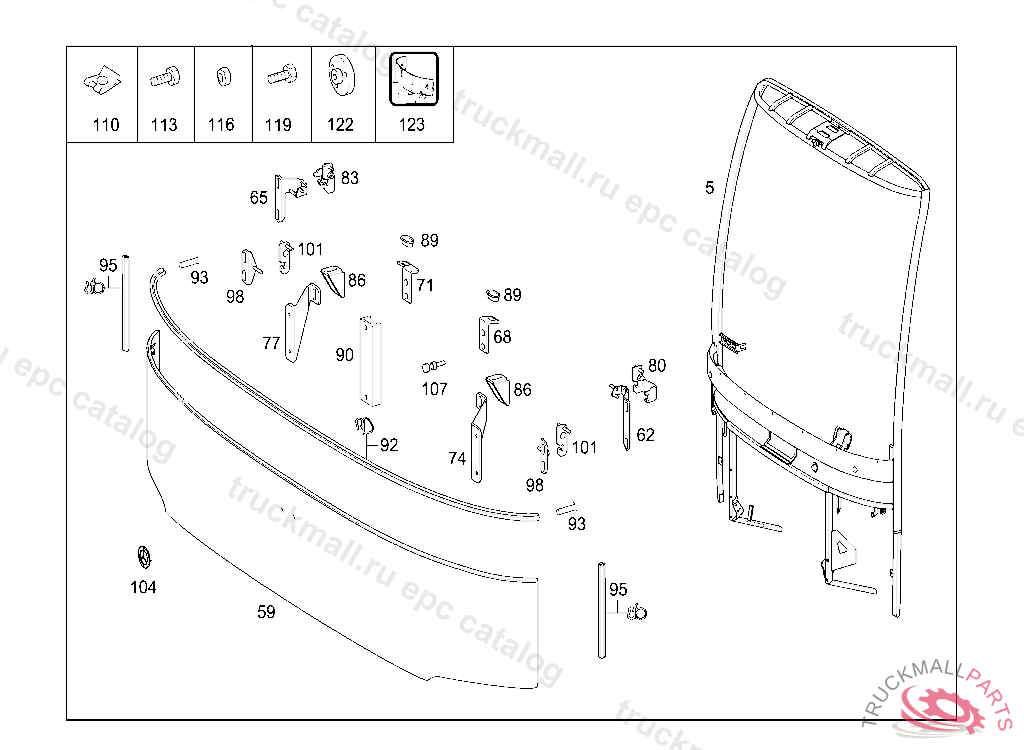

TRAVEGO 17 SHD 3 - ACHSER - 632.287 - 62 COWL,FRONT PANEL
Поз.
Артикул
Описание
59
COVERING
62
CONSOLE LEFT
65
CONSOLE RIGHT
68
BRACKET97X30MM
71
BRACKET
74
BRACKET LEFT
77
BRACKET RIGHT
80
BRACKET LEFT
83
BRACKET RIGHT
86
BRACKET
86
BRACKET
89
BUSHING8,3X20MM
90
BRACKET
92
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
93
INSULATING HOSE BLACK 10 MM, ORDER BY THE METER
95
RUBBER SECTION BLACK PVC, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
98
CONSOLE
101
BRACKET
104
BADGE COWL TOP FLAP
107
RUBBER BUFFER
110
LOCK NUT. SPRING NUT MOUNTING PARTS
113
SCREW BRACKET TO CAB REAR PANEL M 8X20
116
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
119
HEXAGON HEAD BOLT
122
CLIP TYPE DESIGNATION TO CAB
123
GUMMED LABEL
