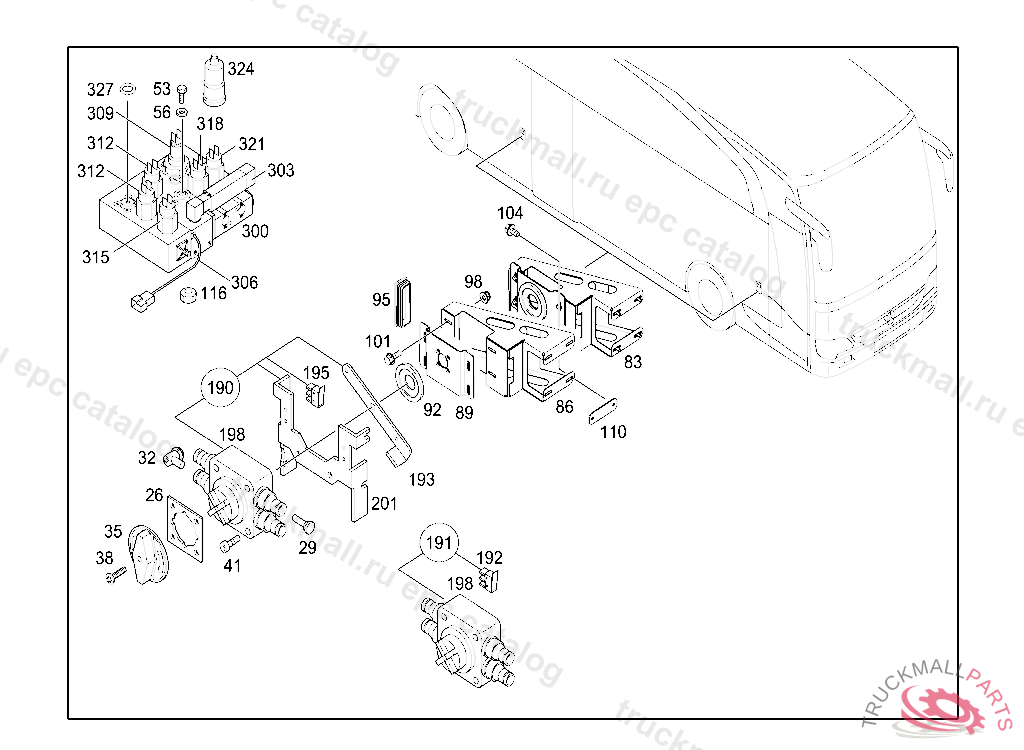

TRAVEGO 17 SHD 3 - ACHSER - 632.287 - 76 DOOR AND WINDOW ACCESSORIES
Поз.
Артикул
Описание
29
PLUG
32
ELBOW FITTING
35
ROTARY KNOB
35
ROTARY KNOB
38
SCREWM5X16
38
SCREW
38
SCREWM5X25
41
SCREW
53
SCREW. HEXAGON HEAD BOLT BATTERY CABLE M6X50
83
BRACKET
86
BRACKET , EXHAUST STOCK OF OLD PART NUMBER FIRST
86
BRACKET , Replaced By: A6327630414
89
PLATE
92
SEAL
95
PLUG
98
NUT BRACKET TO FIRE WALL
101
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
104
HEXAGON HEAD BOLT
116
NUT , Replaced By: N913023006001
190
EMERGENCY COCK. CONTROL COCK STANDARD VERSION
191
EMERGENCY VALVE
192
QUICK BREAK SWITCH
193
ACTUATING LEVER
193
LEVER , Replaced By: A0007663224
195
SWITCH
198
CONTROL COCK
300
VALVE
