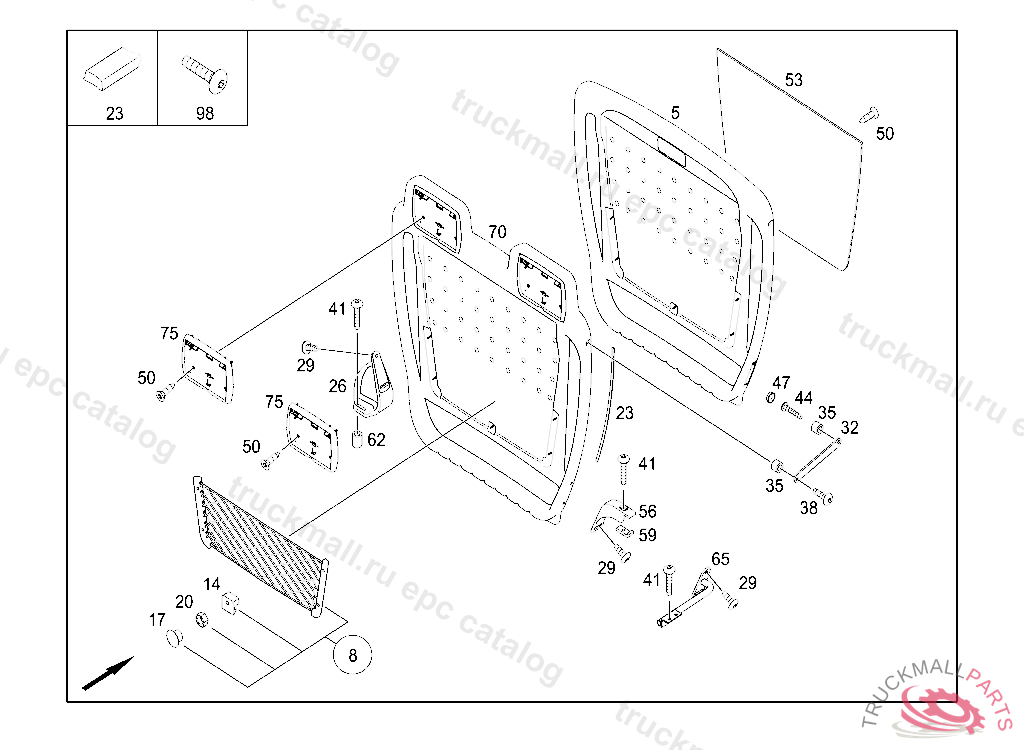

TRAVEGO 17 SHD 3 - ACHSER - 632.287 - 71 PARTITION PANEL
Поз.
Артикул
Описание
5
PARTITION PANEL
8
LUGGAGE NET TOTAL RANGE OF DELIVERY
14
COVERING
17
LOCKING CAP
20
NUT BRACKET MOUNTING
23
GARNISH STRIP AT PARTITION PANEL, TO BE ADAPTED DURING ASSEMBLY
26
STAY
29
SCREWM 8X22, T40
32
ANGLE
35
SPACER BUSH15X9X11LG.
38
SCREW, SPECIAL SHAPEM8X28
41
SCREWM8X40
44
SCREWM 6X35
47
CAPD18 MM
50
TAPPING SCREW4,2X16
50
SHEET METAL SCREW3,9X16MM
53
PANELLING , DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
56
STAY
59
ANGLE
62
SPACER TUBE
65
CONSOLE RIGHT
70
PARTITION
75
HOUSING F LC-DISPLAY LCD DISPLAY
98
SCREW
