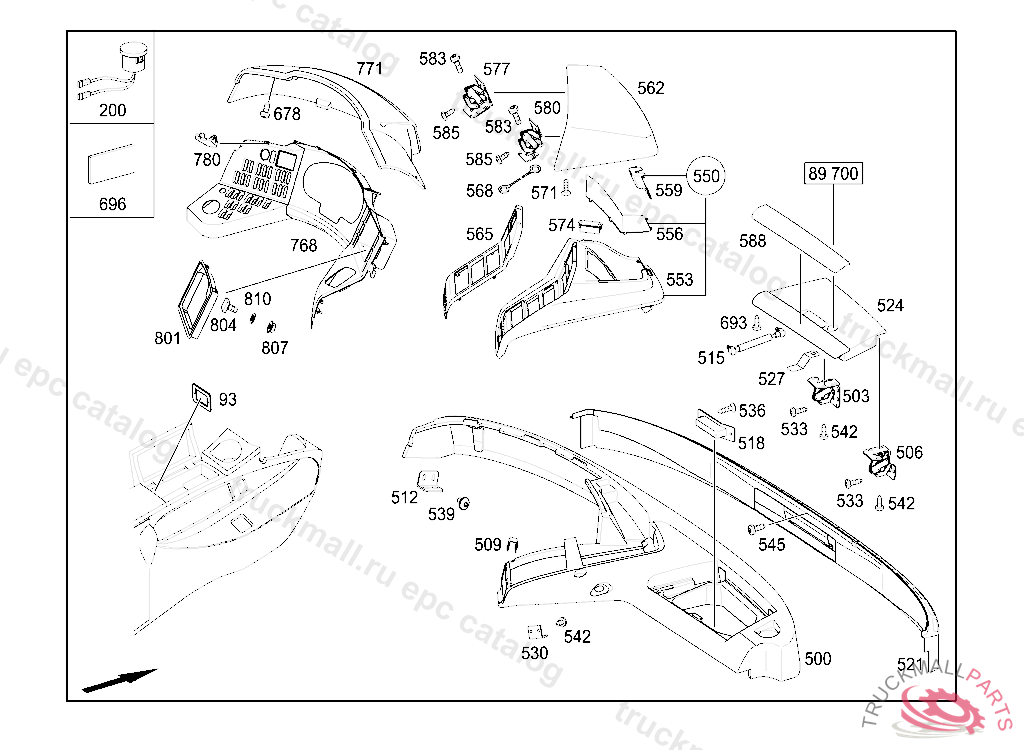

Поз.
Артикул
Описание
93
FASTENING PLATE
200
REED CONTACT SWITCH
500
COWLING COCKPIT AREA
503
CUP HINGE LEFT
506
CUP HINGE RIGHT
509
ATTACHMENT ANGLE BRACKET
512
ANGLE
515
SPRING
518
FALLING LATCH
521
AIR DUCT
524
COVERING DEEP FREEZER
527
LATCH TONEUE
530
BRACKET
533
TAPPING SCREW BRACKET MOUNTING
536
TAPPING SCREW3,5X16MM
539
TAPPING SCREW BRACKET TO SUPPORT
542
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
545
TAPPING SCREW MOUNTING PARTS 4.8X16
550
MOLDING FOR SWITCH FASHION
550
MOLDING FOR SWITCH FLAIR
553
COVERING FASHION
553
COVERING FLAIR
556
COVER FLAIR
556
COVER FASHION
559
COVERING FLAIR
559
COVERING FASHION
562
COVER
565
BEAM FASHION
565
BEAM FLAIR
568
HOLDING ROPE
571
HEXALOBULAR BOLT CAN NEUTRAL POINT ON EQUIPMENT PLATE M6X10, Replaced By: A0019844329
574
MAGNET
577
CUP HINGE LEFT
580
CUP HINGE RIGHT
583
HEXALOBULAR BOLT CAN NEUTRAL POINT ON EQUIPMENT PLATE M4X12,V 202043
585
TAPPING SCREW
588
HANDLE FASHION
588
HANDLE FLAIR
678
TAPPING SCREW WIRE CABLE TO CAB 4.2X9.5
693
TAPPING SCREW SIDE REFLECTORS,K 057592
696
FELT STRIP SELF-ADHESIVE 15X1MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
768
INSTRUMENT MOUNT
768
INSTRUMENT MOUNT
771
COVERING
780
COVER CAP
801
COVERING
804
T-SCREW
807
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
810
WASHER BRACKET TO BATTERY CASE BRACKET
