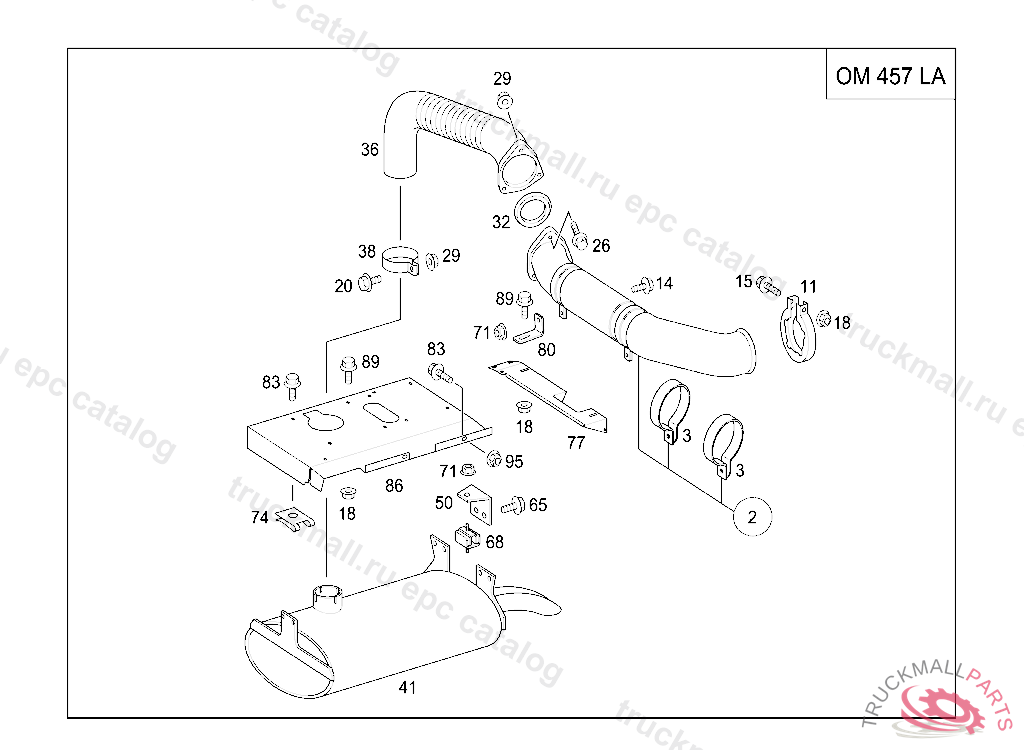

Поз.
Артикул
Описание
2
EXHAUST PIPE
3
CLAMP PRE-MUFFLER TO MAIN MUFFLER
11
CLAMP FRONT EXHAUST PIPE TO THROTTLE HOUSING
14
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
14
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
15
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
18
NUT HORN TO BRACKET M8
18
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
20
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
20
SCREW BRACKET TO SIDE MEMBER M10X35
26
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
29
HEXAGON NUT. NUT BRACKET TO SIDE MEMBER M 12X1,5
29
NUT BRACKET TO SIDE MEMBER M12X1.5
29
NUT SUPPORTING STRUT AT BRACKET AT LEFT BOTTOM M12X1.5, A 20131120
29
NUT SUPPORT TO SIDE MEMBER
29
NUT , Replaced By: N913023010002
32
FLANGE GASKET EXHAUST LINE FLEXIBLE METAL TUBE
36
EXHAUST PIPE
38
CLAMP , Replaced By: N071555124501
38
CLAMP EXHAUST SYSTEM D124,5MM, Replaced By: A6554920140
38
CLAMP
41
MUFFLER. EXHAUST MUFFLER
41
MUFFLER
50
BRACKET
65
SCREW BRACKET TO CAB REAR PANEL M 8X20
65
SCREW BRACKET TO SIDE MEMBER M8X20
68
RUBBER MOUNTING
71
NUT , Replaced By: N913023010002
71
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
74
LOCK NUT. SPRING NUT STEP TO ENTRANCE
77
CONSOLE
80
BRACKET EXHAUST PIPE
80
83
SCREW BRACKET AND CLAMP M6X20
86
INSULATION
89
SCREW , Replaced By: N910143008002
95
NUT , Replaced By: N913023006001
