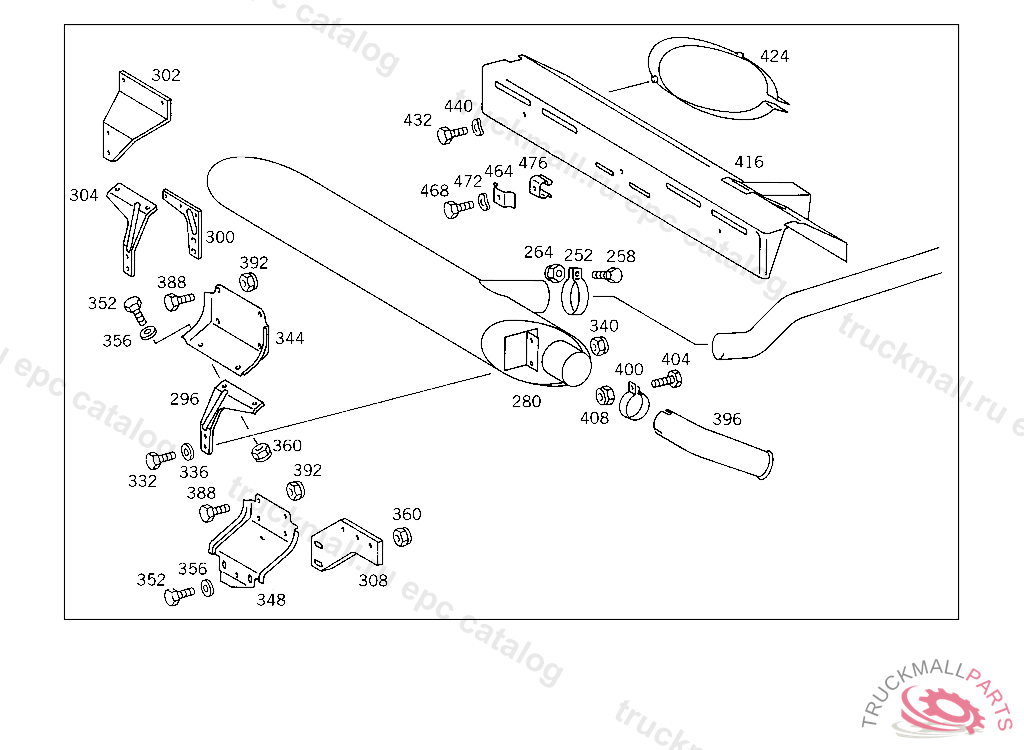

Поз.
Артикул
Описание
252
CLAMP , Replaced By: N071555094502
252
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
252
CLAMP , Replaced By: A6554920340
252
CLAMP EXHAUST PIPE
258
SCREW , Replaced By: N304017010002
258
SCREW BRACKET TO SIDE MEMBER
264
NUT , Replaced By: N910113010000
264
NUT STRAP TO BRACKET
280
EXHAUST MUFFLER
280
EXHAUST MUFFLER
296
BRACKET EXHAUST MUFFLER,LEFT,5 381620
300
BRACKET EXHAUST MUFFLER,RIGHT,5 381620
302
BRACKET EXHAUST MUFFLER,LEFT
302
BRACKET EXHAUST MUFFLER,RIGHT
302
BRACKET EXHAUST MUFFLER,LEFT,5 381621
302
BRACKET EXHAUST MUFFLER,5 193594
302
BRACKET EXHAUST MUFFLER,RIGHT
304
BRACKET EXHAUST MUFFLER,RIGHT,5 381620
308
BRACKET EXHAUST MUFFLER
332
SCREW END PIECE TO EXHAUST PIPE M 10X25
332
SCREW END PIECE TO EXHAUST PIPE M 10X25
336
WASHER , Replaced By: N000125010532
336
WASHER RADIATOR TO RUBBER MOUNTING
336
WASHER RADIATOR TO RUBBER MOUNTING
336
WASHER RADIATOR TO RUBBER MOUNTING
340
NUT , Replaced By: N910113010000
340
NUT STRAP TO BRACKET
340
NUT STRAP TO BRACKET
340
NUT STRAP TO BRACKET
344
BRACKET EXHAUST MUFFLER,5 381620
348
REINFORCEMENT EXHAUST MUFFLER
348
REINFORCEMENT EXHAUST MUFFLER
352
SCREW END PIECE TO EXHAUST PIPE M 10X25
356
WASHER , Replaced By: N000125010532
356
WASHER RADIATOR TO RUBBER MOUNTING
356
WASHER RADIATOR TO RUBBER MOUNTING
360
NUT , Replaced By: N910113010000
360
NUT STRAP TO BRACKET
360
NUT STRAP TO BRACKET
388
SCREW END PIECE TO EXHAUST PIPE M 10X25
392
NUT , Replaced By: N910113010000
392
NUT STRAP TO BRACKET
396
REAR EXHAUST PIPE (TAIL PIPE)
396
REAR EXHAUST PIPE (TAIL PIPE)
396
REAR EXHAUST PIPE TAIL PIPE
396
REAR EXHAUST PIPE (TAIL PIPE)
396
REAR EXHAUST PIPE TAIL PIPE
396
REAR EXHAUST PIPE (TAIL PIPE)
400
CLAMP , Replaced By: N071555090502
400
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
404
SCREW , Replaced By: N304017010002
404
SCREW BRACKET TO SIDE MEMBER
408
NUT , Replaced By: N910113010000
408
NUT STRAP TO BRACKET
416
PROTECTIVE PLATE EXHAUST MUFFLER
416
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER AND LICENSES PLATE
416
PROTECTIVE PLATE EXHAUST MUFFLER,5 004844
416
PROTECTIVE PLATE EXHAUST MUFFLER
416
PROTECTIVE PLATE EXHAUST MUFFLER,5 004845
416
PROTECTIVE PLATE EXHAUST MUFFLER,5 193594
416
PROTECTIVE PLATE EXHAUST MUFFLER
416
PROTECTIVE PLATE EXHAUST MUFFLER,5 193595
424
CLAMP PROTECTIVE PLATE TO EXHAUST MUFFLER
432
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
440
SPRING WASHER , Replaced By: N000137008212
440
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
464
BRACKET LICENSE PLATE
468
SCREW , Replaced By: N304017006020
468
SCREW LICENSE PLATE TO BRACKET
468
SCREW LICENSE PLATE TO BRACKET
472
SPRING WASHER LICENSE PLATE TO BRACKET
472
SPRING WASHER LICENSE PLATE TO BRACKET
476
NUT RETAINER , Replaced By: A0019906791
476
NUT RETAINER LICENSE PLATE TO BRACKET
476
NUT RETAINER LICENSE PLATE TO BRACKET
476
NUT RETAINER LICENSE PLATE TO BRACKET
999
SPACER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 389516, Replaced By: A6483310026
999
EXHAUST MUFFLER IN FRONT OF FRONT AXLE
999
PROTECTIVE PLATE EXHAUST PIPE
999
SCREW BRACKET TO SUPPORT
