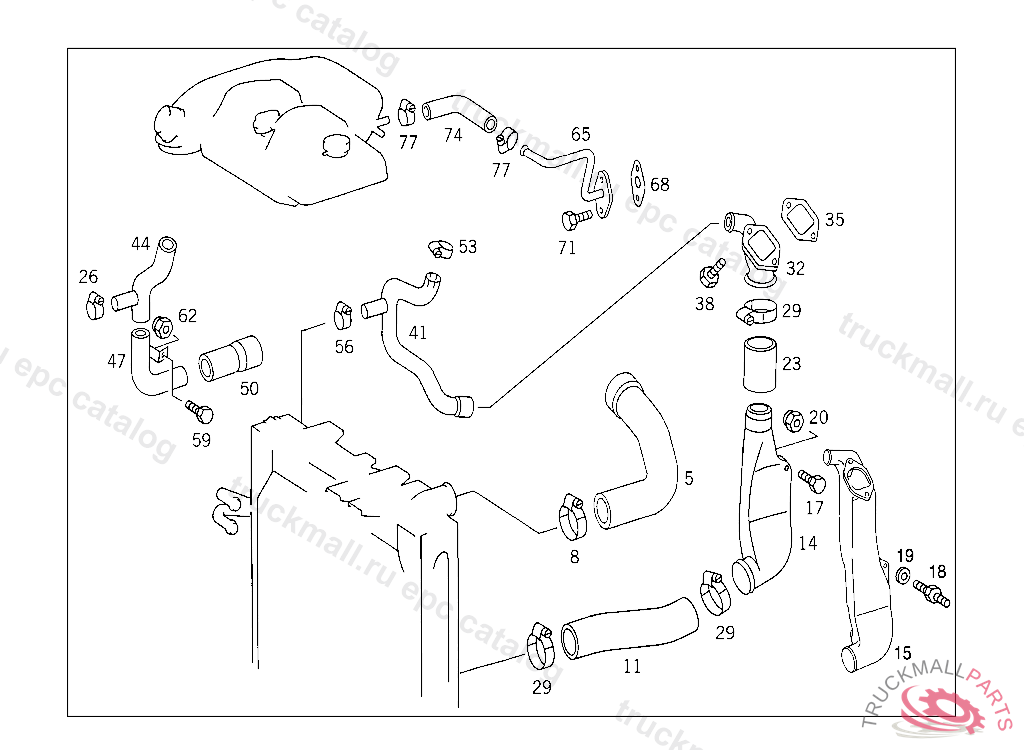

Поз.
Артикул
Описание
5
HOSE FROM RADIATOR TO THERMOSTAT
8
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
8
CLAMP , Replaced By: A0059972990
8
CLAMP , Replaced By: N000000000674
11
HOSE FROM RADIATOR OUTLET TO WATER PUMP
14
PIPE ELBOW AT WATER PUMP,5 510518
15
PIPE ELBOW FOR SCREW FITTING
17
SCREW BRACKET TO FRAME SIDE MEMBER
18
PIN PIPE ELBOW TO BRACKET,K 023462
19
SPACER RING PIPE ELBOW TO BRACKET,K 023462
20
NUT STRAP TO BRACKET
20
NUT , Replaced By: N910113010000
23
HOSE FROM RADIATOR OUTLET TO WATER PUMP, ORDER BY THE METER
29
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
29
CLAMP , Replaced By: A0059972990
29
CLAMP , Replaced By: N000000000674
32
CONNECTOR FOR SCREW FITTING
35
GASKET CONNECTOR, Replaced By: A0002011180
35
GASKET CONNECTOR, Replaced By: A0002011280
35
GASKET CONNECTOR
35
GASKET CONNECTOR, Replaced By: A0002011080
38
SCREW STRAP TO BRACKET
38
SCREW END PIECE TO EXHAUST PIPE M 10X25
41
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
41
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
44
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
47
LINE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
47
LINE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
50
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
53
CLAMP
53
CLAMP , Replaced By: N000000000670
56
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
56
CLAMP , Replaced By: N000000000667
59
SCREW , Replaced By: N304017006016
59
SCREW PUMP TO BRACKET
62
NUT PUMP TO BRACKET
62
NUT , Replaced By: N913004006001
65
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
68
GASKET. SEAL DE-AERATION PIPE TO ENGINE
71
SCREW END PIECE TO EXHAUST PIPE M 10X25
74
HOSE DE-AERATION PIPE TO EXPANSION TANK
77
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
77
CLAMP , Replaced By: N000000000667
999
WASHER , Replaced By: A1894660751
