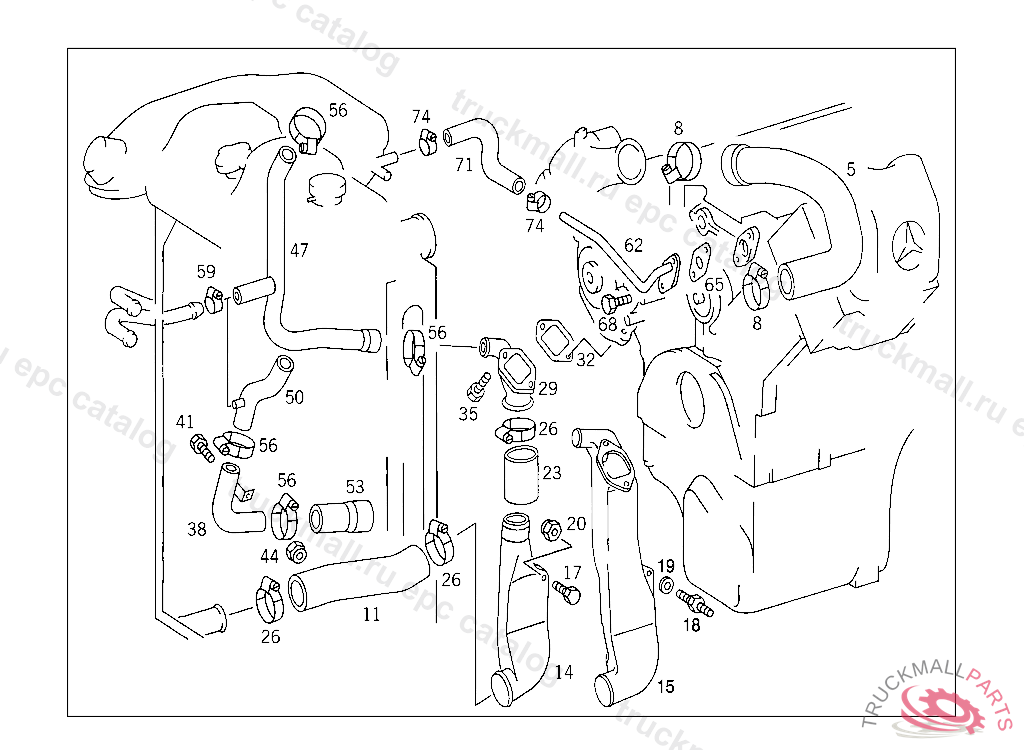

Поз.
Артикул
Описание
5
HOSE FROM RADIATOR TO THERMOSTAT
8
CLAMP , Replaced By: N000000000674
8
CLAMP HOSE 70-90X13 MM
11
HOSE FROM RADIATOR OUTLET TO WATER PUMP
14
PIPE ELBOW AT WATER PUMP,5 510518
14
PIPE ELBOW AT WATER PUMP,5 1935955 510517
15
PIPE ELBOW FOR SCREW FITTING
17
SCREW BRACKET TO FRAME SIDE MEMBER
18
PIN PIPE ELBOW TO BRACKET,K 023462
19
SPACER RING PIPE ELBOW TO BRACKET,K 023462
20
NUT STRAP TO BRACKET
20
NUT , Replaced By: N910113010000
23
HOSE FROM RADIATOR OUTLET TO WATER PUMP, ORDER BY THE METER
26
CLAMP , Replaced By: N000000000674
26
CLAMP HOSE 70-90X13 MM
29
CONNECTOR FOR SCREW FITTING
32
GASKET CONNECTOR
32
GASKET CONNECTOR, Replaced By: A0002011180
32
GASKET CONNECTOR, Replaced By: A0002011280
32
GASKET CONNECTOR, Replaced By: A0002011080
35
SCREW STRAP TO BRACKET
35
SCREW END PIECE TO EXHAUST PIPE M 10X25
38
LINE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
38
LINE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
41
SCREW PUMP TO BRACKET
41
SCREW , Replaced By: N304017006016
44
NUT , Replaced By: N913004006001
44
NUT PUMP TO BRACKET
47
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
47
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
50
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
53
HOSE , Replaced By: A4355060535
53
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
56
CLAMP , Replaced By: N000000000670
56
CLAMP
59
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
59
CLAMP , Replaced By: N000000000667
62
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
65
GASKET. SEAL DE-AERATION PIPE TO ENGINE
68
SCREW END PIECE TO EXHAUST PIPE M 10X25
71
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
74
CLAMP , Replaced By: N000000000667
74
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
WASHER , Replaced By: A1894660751
