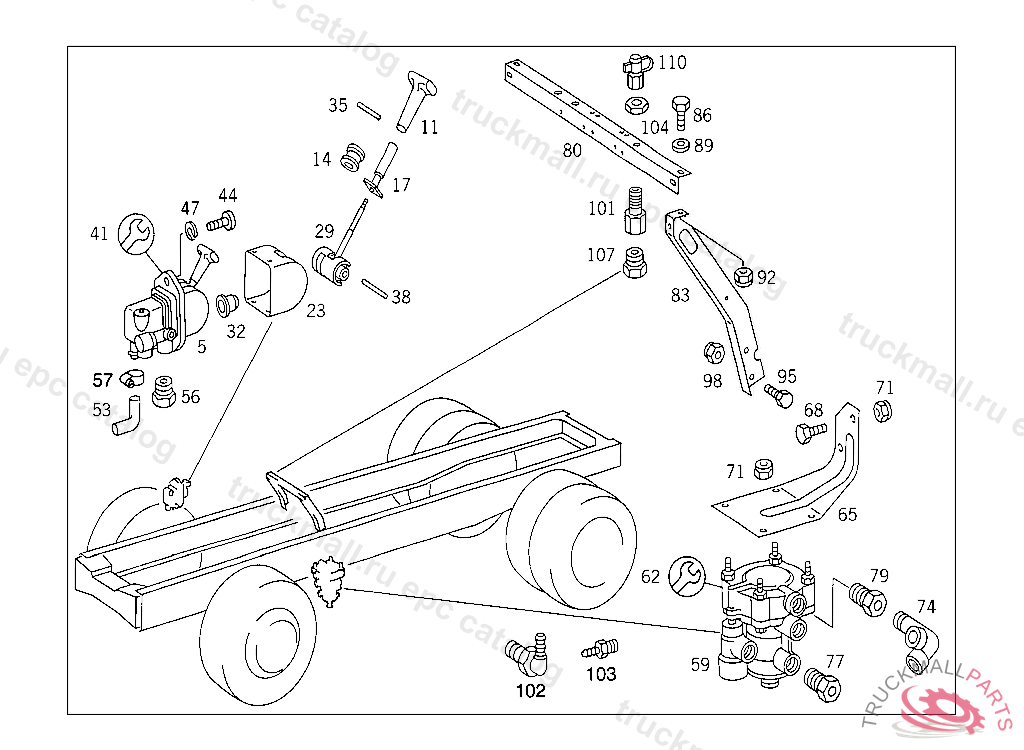

Поз.
Артикул
Описание
5
VALVE PARKING BRAKE WITH TRAILER CONTROL "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
VALVE PARKING BRAKE WITH TRAILER CONTROL "KNORR"
5
VALVE PARKING BRAKE WITH TRAILER CONTROL "BOSCH"
11
HANDLETO 002 430 93 81
14
BUSHING"WABCO"
17
BUSHINGTO 002 430 93 81
23
PROTECTIVE CAPTO 002 430 93 81
29
LEVERTO 002 430 93 81
32
SPRING RETAINERTO 002 430 93 81
35
PINTO 002 430 90 81
38
PINTO 002 430 93 81
41
REPAIR KITBOSCH,TO 002 430 93 81
41
REPAIR KIT HAND BRAKE VALVE "WABCO"
44
SCREW PARKING BRAKE VALVE TO WINDOW SILL
47
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
47
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL, Replaced By: N912006008000
53
BREATHER PIPE PARKING BRAKE VALVE,CONNECTION: "30", Replaced By: A6554310273
53
BREATHER PIPE PARKING BRAKE VALVE,CONNECTION: "30"
56
SCREW. UNION SCREW , Replaced By: A0009973734
56
SCREW. UNION SCREW LINE CONNECTION
57
CLAMP HOSE TO PARKING BRAKE VALVE
59
TRAILER CONTROL VALVE (TRAILER CONTROL VALVE) "KNORR"
59
BRAKE VALVE (TRAILER CONTROL VALVE) "BOSCH"
59
BRAKE VALVE (TRAILER CONTROL VALVE) "GRAU", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
59
BRAKE VALVE (TRAILER CONTROL VALVE) "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
62
REPAIR KIT TRAILER CONTROL VALVE "WABCO"
62
REPAIR KIT TRAILER CONTROL VALVE "GRAU"
65
BRACKET TRAILER CONTROL VALVE
68
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
68
SCREW , Replaced By: N304017008027
71
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
71
NUT , Replaced By: N913004008001
71
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
74
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
77
SCREW. UNION SCREW , Replaced By: A0009973734
77
SCREW. UNION SCREW LINE CONNECTION
79
SCREW. UNION SCREW LINE CONNECTION
80
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING
83
ANGLE SUPPORT,LEFT
83
ANGLE SUPPORT,RIGHT
86
SCREW PIPE CLAMP
86
SCREW BRACKET TO CROSS CONNECTION STRUT
86
SCREW , Replaced By: N304017008021
86
SCREW , Replaced By: N304017008034
89
WASHER , Replaced By: N000125008443
89
WASHER EXHAUST MUFFLER TO STRAP
92
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
92
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
92
NUT , Replaced By: N913004008001
95
SCREW , Replaced By: N308676014020
95
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
95
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
98
NUT BRACKET TO SIDE MEMBER
98
NUT , Replaced By: N910113014001
101
ADAPTER FITTING LINE CONNECTION TO ENGINE
102
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINE 9 MM, M 18X1.5,K 168170
103
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINE 9 MM, M 18X1.5,K 168170
104
NUT BRACKET TO SIDE MEMBER
107
SCREW. UNION SCREW LINE CONNECTION
110
TEST CONNECTION BULKHEAD FITTING
