Поз.
Артикул
Описание

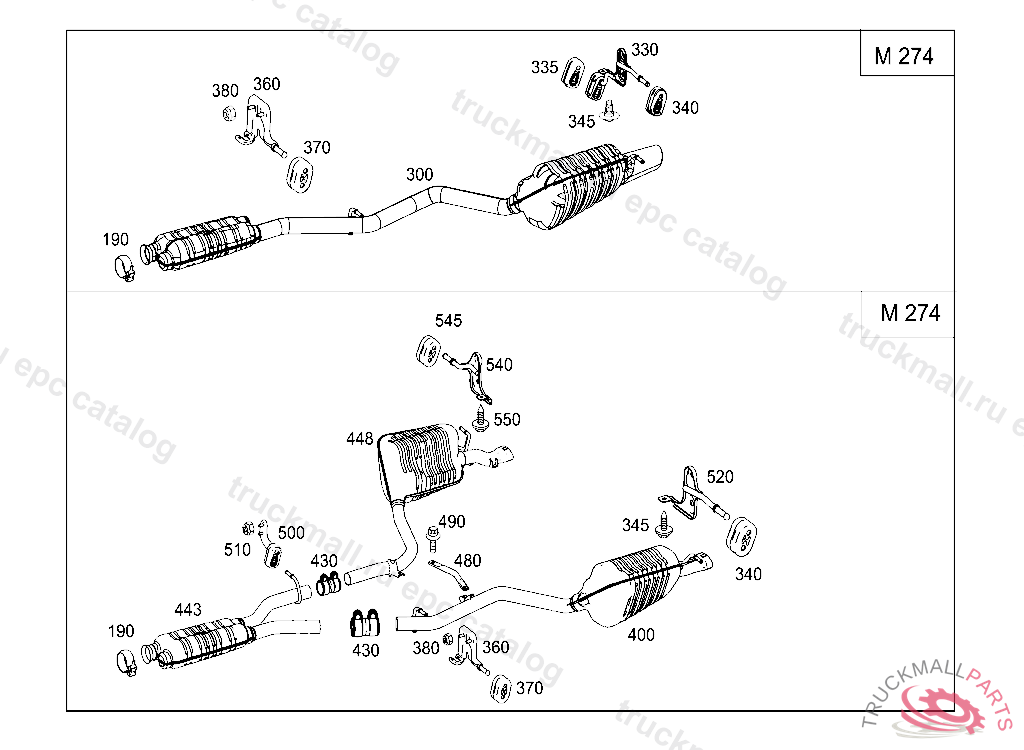

190
CLAMP FRONT EXHAUST PIPE TO REAR EXHAUST PIPE 81,5 MM
300
EXHAUST GAS LINE REAR
330
SUSPENSION F EXHAUST LINE REAR LEFT EXHAUST PIPE
335
SUSPENSION RING REAR LEFT EXHAUST PIPE
340
SUSPENSION RING BRACKET TO EXHAUST MUFFLER
345
HEXALOBULAR BOLT BATTERY FRAME M8X16
360
SUSPENSION EXHAUST PIPE, REAR, AT REAR AXLE,LEFT
370
SUSPENSION RING BRACKET TO EXHAUST MUFFLER
380
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
400
EXHAUST GAS LINE REAR LEFT
430
CLAMP CENTRAL MUFFLER TO POSTERIOR MUFFLER
443
CENTER MUFFLER
448
EXHAUST GAS LINE REAR RIGHT
480
STRUT BETWEEN RIGHT AND LEFT EXHAUST MUFFLERS
490
SCREW BRACKET TO SIDE MEMBER M8X20
500
SUSPENSION F EXHAUST LINE EXHAUST PIPE, REAR TO REAR AXLE
510
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
520
BRACKET REAR LEFT EXHAUST PIPE
540
BRACKET REAR RIGHT EXHAUST PIPE
545
SUSPENSION RING BRACKET TO EXHAUST MUFFLER
550
HEXALOBULAR BOLT BATTERY FRAME M8X16
