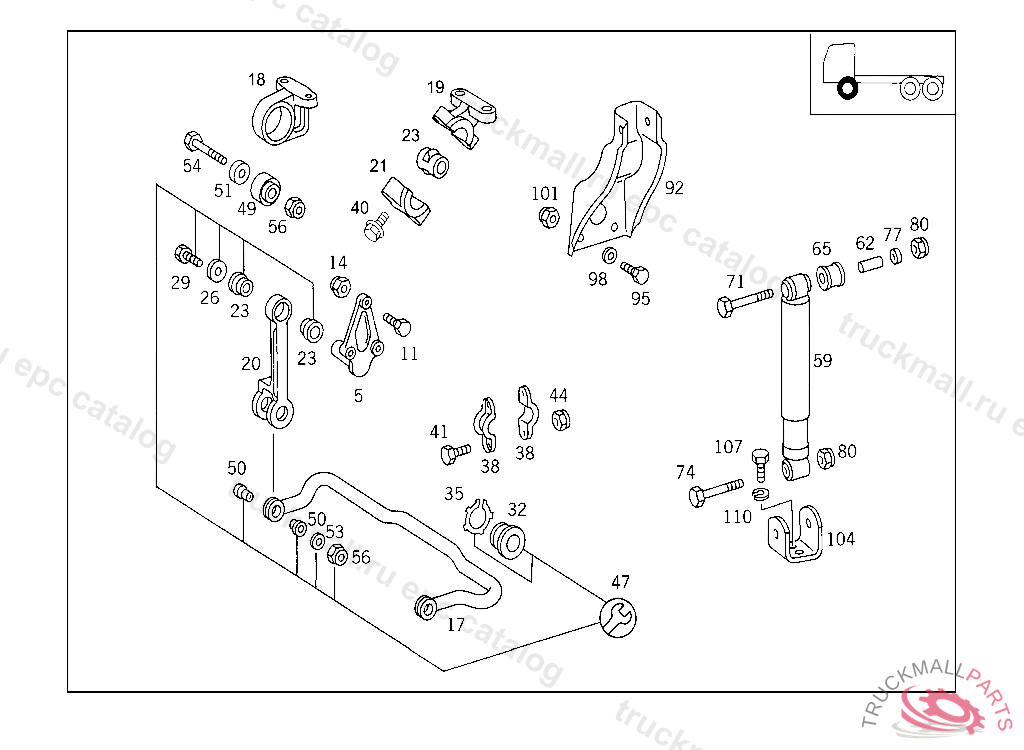

Поз.
Артикул
Описание
5
BEARING BRACKET SHACKLE TO FRAME
5
BEARING BRACKET SHACKLE TO FRAME
11
SCREW , Replaced By: N308676012015
11
SCREW LEFT AND RIGHT CONSOLES TO CAB
14
NUT SUPPORT TO SIDE MEMBER
17
TORSION BAR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 5215065 903513, Replaced By: A6523230765
17
TORSION BAR
17
TORSION BAR FRONT AXLE,5 903514
18
BEARING BRACKET TORSION BAR,FRONT,5 903513
19
BEARING BRACKET TORSION BAR,FRONT,5 903514
20
LINK TORSION BAR,FRONT,5 903513
20
LINK TORSION BAR,FRONT,5 903514
21
BEARING SHELL ,5 903514 NO.7390I I I I II, Replaced By: A9413230221, +002N910105012015
21
BEARING SHELL TORSION BAR,FRONT,5 903514 NO.7390I I I I II
23
BUSHING SHACKLE TO BEARING BRACKET
26
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
26
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904661
29
SCREW SHACKLE TO CONSOLE
32
RUBBER MOUNTING SHACKLE TO BEARING BRACKET,5 904661
32
RUBBER MOUNTING SHACKLE TO BEARING BRACKET,5 904661
32
RUBBER MOUNTING SHACKLE TO BEARING BRACKET
32
RUBBER MOUNTING TORSION BAR TO BEARING BRACKET,5 903514
32
RUBBER MOUNTING TORSION BAR TO BEARING BRACKET,5 903514
32
RUBBER MOUNTING SHACKLE TO TORSION BAR
35
LOCK RING SHACKLE TO TORSION BAR
38
BRACKET TORSION BAR
40
SCREW ,5 903514, Replaced By: N000960012353
40
SCREW TORSION BAR TO SHACKLE,5 903514
40
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M12X45
41
SCREW , Replaced By: N308676012012
41
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
44
NUT SUPPORT TO SIDE MEMBER
47
REPAIR KIT TORSION BAR MOUNTING
49
RUBBER MOUNTING TORSION BAR TO BEARING BRACKET
49
RUBBER MOUNTING TORSION BAR TO BEARING BRACKET,5 904661
49
RUBBER MOUNTING TORSION BAR TO BEARING BRACKET
50
BUSHING TORSION BAR TO BEARING BRACKET
51
SPACER WASHER TORSION BAR TO BEARING BRACKET,5 904661
53
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
53
WASHER TORSION BAR TO BEARING BRACKET
54
SCREW TORSION BAR TO BEARING BRACKET,5 904661
56
NUT , Replaced By: N910113016001
56
NUT CONSOLE TO SUPPORT
56
NUT TORSION BAR TO BEARING BRACKET,5 904661
59
SHOCK ABSORBER FRONT
59
SHOCK ABSORBER FRONT
62
SPACER RINGTO 002 323 86 00,003 323 03 00,
62
BUSHINGTO 004 323 52 00
65
RUBBER MOUNTINGTO 003 326 46 00
65
RUBBER BUFFER SHOCK ABSORBER,BOTTOM TO 003 326 45 00, Replaced By: A0003238085
65
RUBBER BUFFER , Replaced By: A0003233144
65
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
71
SCREW SHOCK ABSORBER TO TOP BRACKET
74
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
74
SCREW , Replaced By: N000960016250
77
WASHER SHOCK ABSORBER TO UPPER BEARING BRACKET
80
NUT COMBINATION CYLINDER TO BEARING BRACKET
80
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
92
BEARING BRACKET SHOCK ABSORBER,TOP RIGHT
92
BEARING BRACKET SHOCK ABSORBER,TOP LEFT
95
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
95
SCREW , Replaced By: N308676012026
95
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
95
SCREW , Replaced By: N308676012012
98
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
98
WASHER , Replaced By: N007349013005
101
NUT SUPPORT TO SIDE MEMBER
104
BEARING BRACKET SHOCK ABSORBER,BOTTOM
107
SCREW , Replaced By: N308676012012
107
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
110
LOCK WASHER FITTING TO BRACKET
