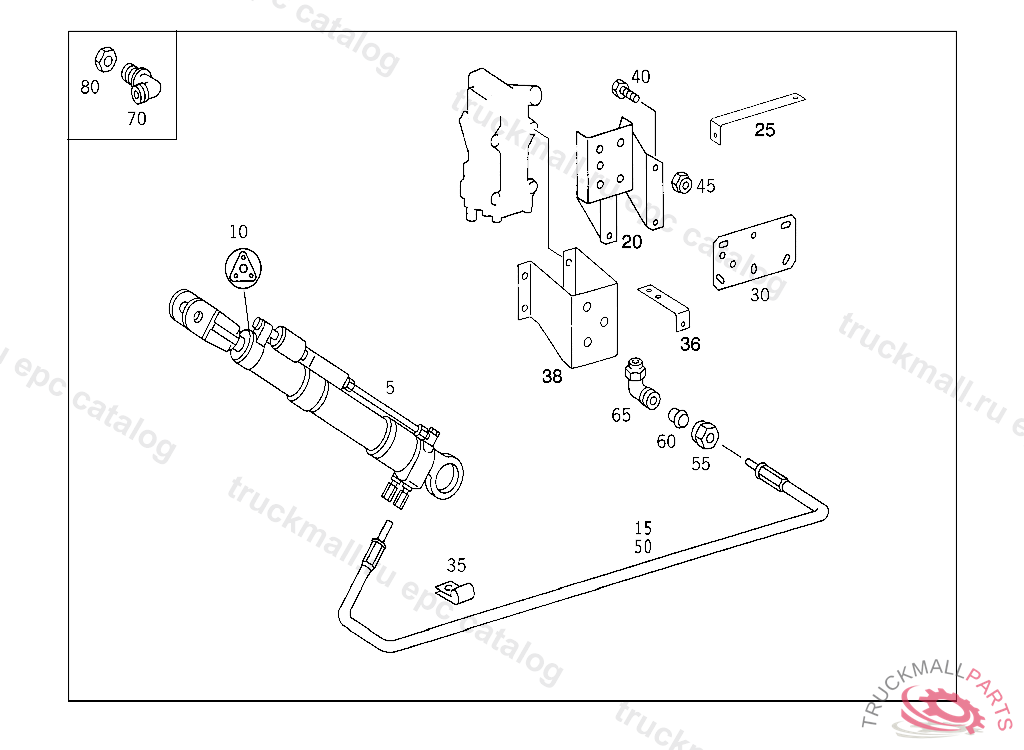

Поз.
Артикул
Описание
5
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING
10
GASKET KIT HYDRAULIC CYLINDER
15
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
15
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
15
HOSE , Replaced By: A6555530582
20
BRACKET HAND PUMP
20
BRACKET HAND PUMP
20
BRACKET HAND PUMP
20
BRACKET AIR CLEANER SUPPORT
20
BRACKET HAND PUMP
20
BRACKET HAND PUMP
25
BRACKET HIGH PRESSURE HOSE
30
PLATE HAND PUMP
35
CLAMP LINE MOUNTING
36
BRACKET HAND PUMP
38
BRACKET HAND PUMP
40
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
45
NUT , Replaced By: N910113010000
45
NUT STRAP TO BRACKET
50
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
55
UNION NUT
60
SEAL CONE
60
GLAND , Replaced By: A0019901667
65
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
65
FITTING FROM PUMP TO CYLINDER
70
FITTING OIL LINE CONNECTION
80
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
