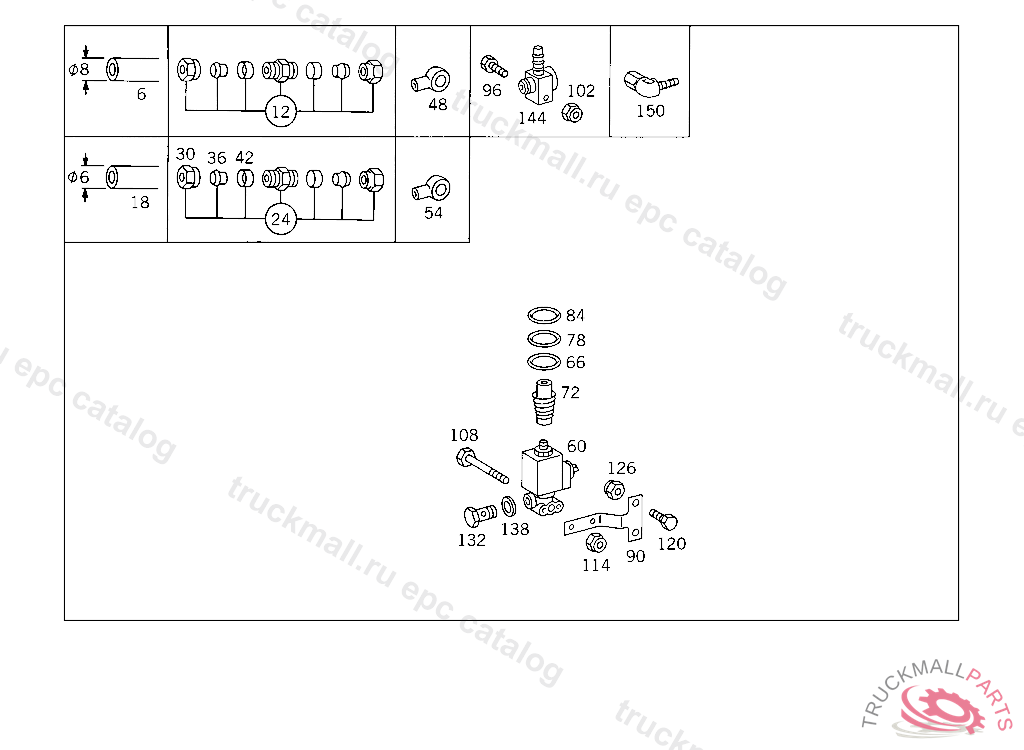

Поз.
Артикул
Описание
6
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
12
FITTING (PARTS KIT),LINE RUPTURE
18
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
18
PLASTIC PIPE RISING PIPE 4X6 MM
24
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
30
UNION NUT
36
GLAND , Replaced By: A0019901667
36
SEAL CONE
42
SLEEVE LEAK LINE
48
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
54
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
54
BANJO UNION , Replaced By: N000000000364
54
BANJO UNION HOSE WIDTH, / I.D., 4/14 MM,K 169123
60
VALVE (3/2-WAY SOLENOID VALVE) WABCO
66
SEAL RINGWABCO
72
VALVE PARTWABCO
78
SEAL RINGWABCO
84
SEAL RINGWABCO
90
BRACKET 3/2-WAY SOLENOID VALVE
90
BRACKET 3/2-WAY SOLENOID VALVE
90
BRACKET , Replaced By: A6454312140
90
BRACKET , Replaced By: A6454312140
90
BRACKET 3/2-WAY SOLENOID VALVE
90
BRACKET 3/2-WAY VALVE
96
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
102
NUT PUMP TO BRACKET
102
NUT , Replaced By: N913004006001
108
SCREW VALVE TO BRACKET
114
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
114
NUT , Replaced By: N913004008001
120
SCREW , Replaced By: N000933012068
120
SCREW IN FRONT OF POSTERIOR MUFFLER
120
SCREW , Replaced By: N304017010002
120
SCREW BRACKET TO SIDE MEMBER
120
SCREW BRACKET TO LEFT SIDE MEMBER
120
SCREW CONSOLE TO SIDE MEMBER
126
NUT , Replaced By: N913004008001
126
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
126
NUT , Replaced By: N910113010000
126
NUT STRAP TO BRACKET
126
NUT END PIECE TO EXHAUST PIPE
126
NUT SUPPORT TO SIDE MEMBER
126
NUT BRACKET TO SIDE MEMBER
132
HOLLOW SCREW HEATING CONNECTION
138
SEAL RING LINE CONNECTION
144
CONNECTOR DISTRIBUTOR MIDDLE, COMPRESSED AIR LINE PLUG CONNECTION, WITH THROTTLE
150
ELBOW FITTING. T-FITTING LINE CONNECTION TO ENGINE TO M16
999
BANJO UNION HEATING CONNECTION,K 169122
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017008034
999
ANGLE LINE MOUNTING
999
ELBOW FITTING
999
PLUG COMPRESSED AIR PIPING,YB227219
999
COUPLING COMPRESSED AIR PIPING,YB227219
999
PLUG COMPRESSED-AIR-LINE PLUG-CONNECTION
999
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION
