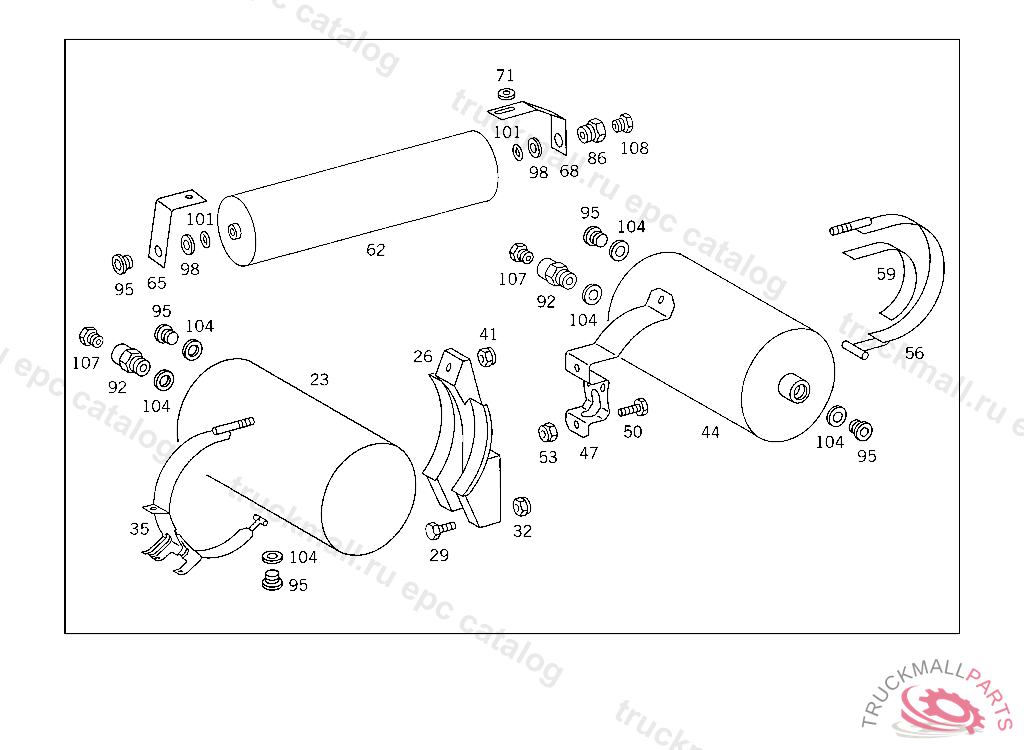

Поз.
Артикул
Описание
23
RESERVOIR SPRING LOAD ACCUMULATOR 20 L, Replaced By: A0034321601
23
RESERVOIR20L,276 MM,8.5 BAR
26
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
29
SCREW , Replaced By: A0089907401
29
SCREW BRACKET TO SIDE MEMBER,K 168169
32
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
32
NUT , Replaced By: N913004008001
32
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
35
STRAP SPRING-LOADED BRAKE AIR RESERVOIR
41
NUT , Replaced By: N910113010000
41
NUT STRAP TO BRACKET
44
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
44
RESERVOIR10L,206 MM,8.5 BAR
47
BRACKET AIR RESERVOIR TO CROSS MEMBER
50
SCREW PIPE CLAMP
50
SCREW , Replaced By: N304017008021
53
NUT , Replaced By: N913004008001
53
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
53
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
56
STRAP AIR RESERVOIR TO BRACKET
56
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
59
ADHESIVE TAPE60 MM, ORDER BY THE METER
62
RESERVOIR AIR DEHYDRATOR 5.6 L, Replaced By: A0034320501
62
RESERVOIR AIR DEHYDRATOR 5.6 L, Replaced By: A0024325001
62
RESERVOIR5.6L,114,3 MM,10 BAR
65
BRACKET DEHYDRATOR AIR RESERVOIR,LEFT
68
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 114 MM
68
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 100 MM, Replaced By: A6504312540
71
WASHER , Replaced By: N000125010532
71
WASHER RADIATOR TO RUBBER MOUNTING
86
FITTING AIR RESERVOIR,CONNECTION: "15",5 433281
92
FITTING LINE CONNECTION
95
SCREW PLUG , Replaced By: N000908022011
95
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
98
THRUST RING CHECK VALVE TO AIR RESERVOIR
98
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
101
O-RING CHECK VALVE TO AIR RESERVOIR
104
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
107
SCREW. UNION SCREW LINE CONNECTION
108
SCREW. UNION SCREW LINE CONNECTION
108
SCREW. UNION SCREW , Replaced By: A0009973734
