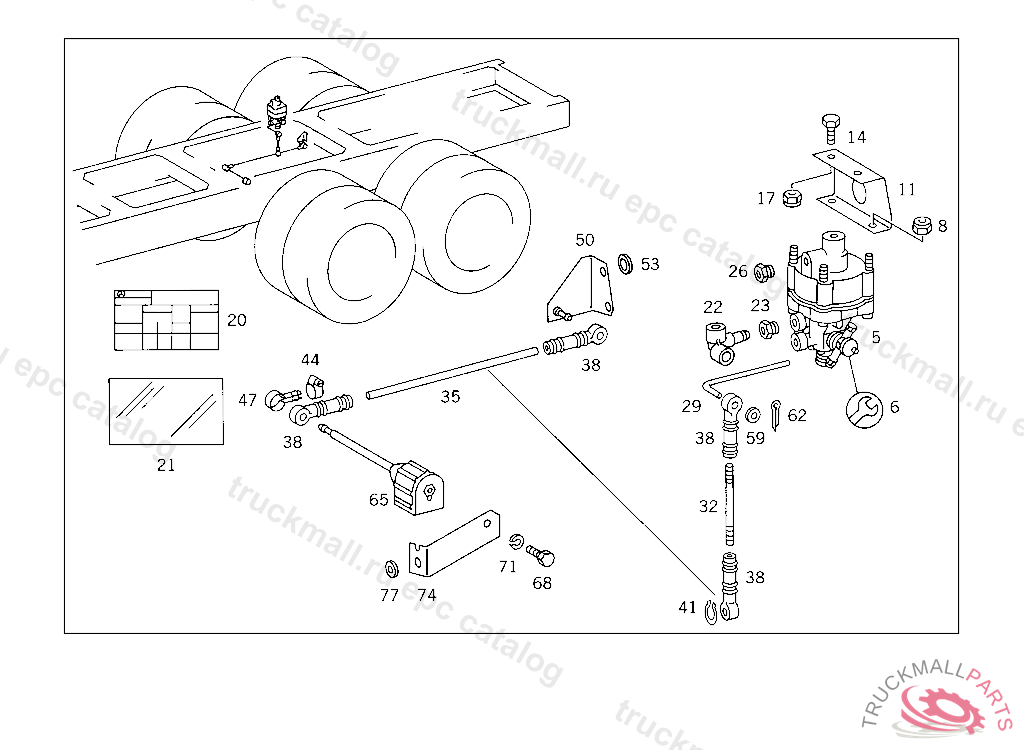

Поз.
Артикул
Описание
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE KNORR
6
REPAIR KIT BRAKE POWER REGULATOR KNORR
6
REPAIR KIT BRAKE POWER REGULATOR BOSCH
6
REPAIR KIT BRAKE POWER REGULATOR WABCO
8
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
8
NUT , Replaced By: N913004008001
8
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
11
BRACKET BRAKE POWER REGULATOR
14
SCREW PIPE CLAMP
14
SCREW , Replaced By: N304017008021
17
NUT , Replaced By: N913004008001
17
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
17
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
20
GUIDE SIGN LOAD-DEPENDING BRAKE
21
ADHESIVE FOIL GUIDE SIGN
22
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
23
SCREW. UNION SCREW LINE CONNECTION
26
SCREW. UNION SCREW LINE CONNECTION
26
SCREW. UNION SCREW , Replaced By: A0009973734
29
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
32
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
35
ROD BRAKE POWER REGULATOR CONTROL
38
CONNECTOR PULL ROD TO LEVER
41
LOCK RING PULL ROD TO LINK
44
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
44
CLAMP , Replaced By: N000000000665
47
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
50
BRACKET LINK
53
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
53
WASHER , Replaced By: N000125015019
59
WASHER , Replaced By: N000125008443
59
WASHER EXHAUST MUFFLER TO STRAP
62
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
65
METAL SPRING BELLOWS BEARING BRACKET TO REAR AXLE,K 006315
68
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
71
LOCK WASHER FITTING TO BRACKET
74
BRACKET METAL SPRING BELLOWS,REAR AXLE I
77
WASHER , Replaced By: N000125017016
77
WASHER BRACKET TO FRAME
