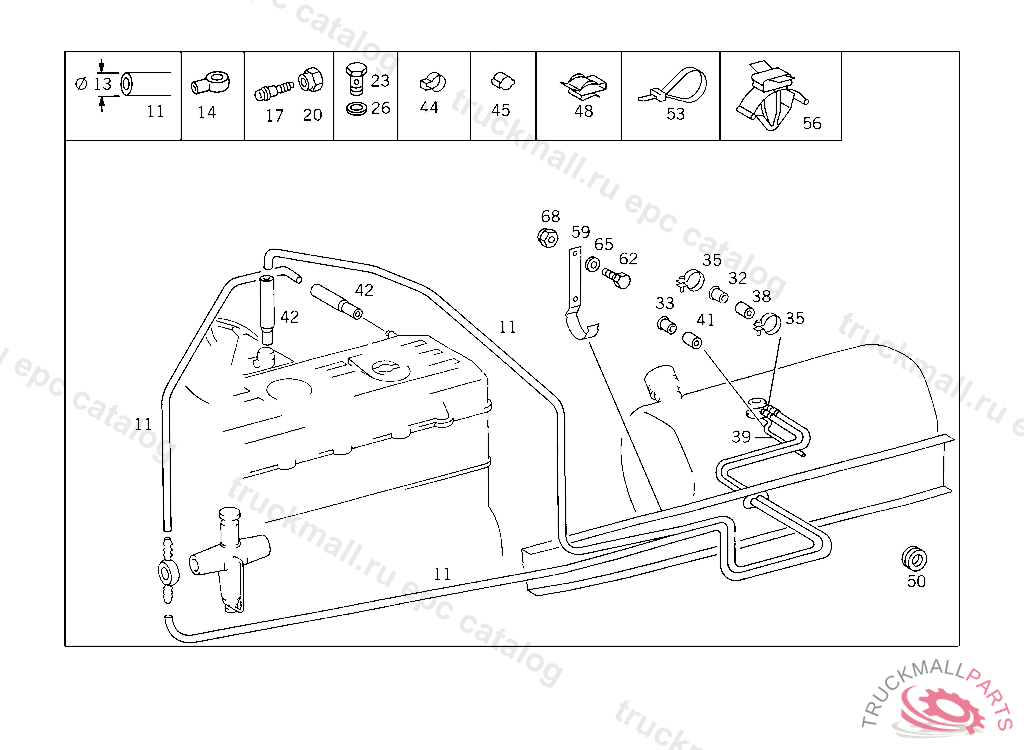

Поз.
Артикул
Описание
11
HOSE. PLASTIC PIPE , Replaced By: A0139971282
14
BANJO UNION HOSE WIDTH, / I.D., 10/14 MM
14
BANJO UNION , Replaced By: N000000000362
17
FITTING RETURN LINE,K 169122
20
UNION NUT RETURN LINE
23
HOLLOW SCREW FUEL LINE TO FEED PUMP
23
HOLLOW SCREW , Replaced By: N915036010108
26
SEAL RING FUEL LINE TO FEED PUMP
32
BUSHING. SLEEVE RETURN LINE,K 169122
35
HOSE CLAMP FUEL LINE TO SENDER UNIT
38
HOSE HAND BRAKE VALVE BLEEDING 100 MM, ORDER BY THE METER
39
HOSE (VENT VALVE) B 8X12 MM
42
HOSE RETURN LINE 8/13 MM,K 169122
44
LOOM TIE VENT VALVE TO FUEL TANK
45
LOOM TIE , Replaced By: A0059972790
45
HOSE CLAMP FUEL LINE TO SENDER UNIT
50
GROMMET FOR PASSAGE OF LINE
53
LOOM TIE LINE MOUNTING 280 MM
53
LOOM TIE LINE MOUNTING
56
BRACKET HOSE BRACKET
59
BRACKET FRAME MOUNTED CABLE HARNESS
62
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
68
NUT STRAP TO SUPPORT
999
PLASTIC PIPE RISING PIPE 4X6 MM
999
PLASTIC PIPE AERATION, ORDER BY THE METER
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
999
CONNECTOR LINE CONNECTION
999
HOSE FRONT/REAR AXLE BRAKE HOSE 13X22 MM, ORDER BY THE METER
