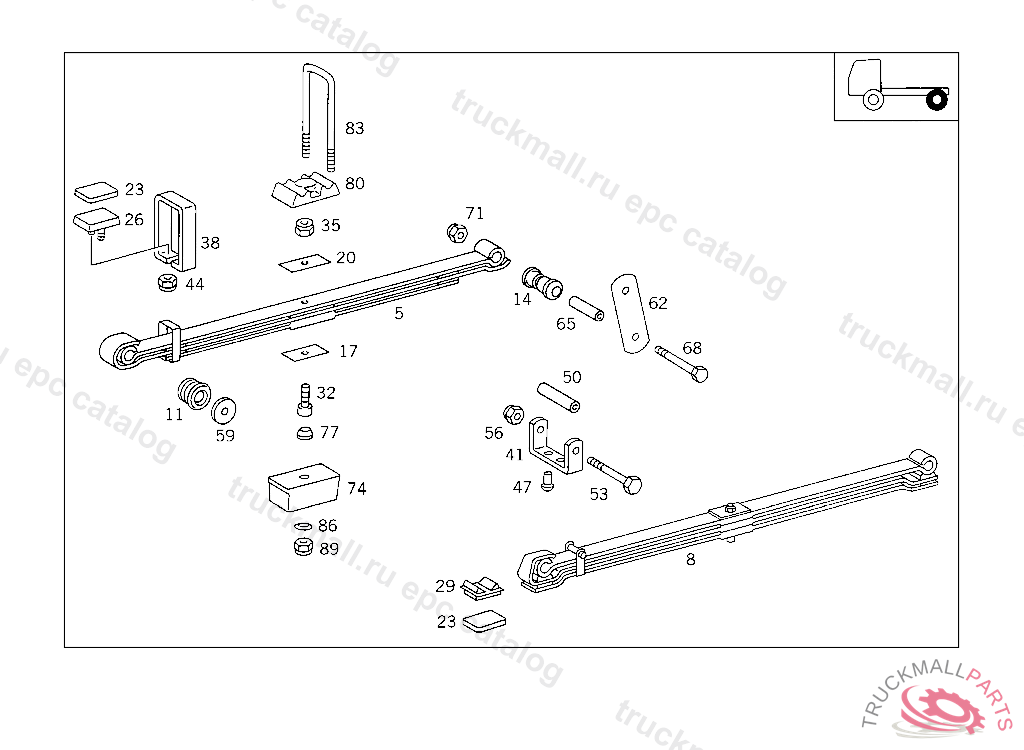

Поз.
Артикул
Описание
5
REAR SPRING (SUPPORTING SPRING),3 LEAVES
5
REAR SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 393360, Replaced By: A6733202106
11
BUSHING SPRING EYE,FRONT
14
BUSHING SPRING EYE,REAR
17
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
17
SHIM , Replaced By: A9703210184
20
SHIM , Replaced By: A9703210184
20
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
23
SHIM BETWEEN THE SPRING LEAVES
26
RUBBER BUFFER
29
RUBBER BUFFER BETWEEN THE SPRING EYES
32
SPRING BOLT
35
NUT , Replaced By: N910113012005
35
HEXAGON NUT. NUT SPRING BOLT
38
SPRING CLAMP AT SPRING LEAF NO.5
38
SPRING CLAMP , Replaced By: A6763210033
38
SPRING CLAMP , Replaced By: A6753210133
44
NUT , Replaced By: N913004008001
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
59
THRUST WASHER REAR SPRING TO REAR SPRING FRONT BRACKET
62
SHACKLE SPRING SHACKLE TO SPRING REAR BRACKET
65
BUSHING REAR SPRING TO REAR SPRING REAR BRACKET
68
SCREW CONTROL ARM TO REAR SPRING REAR BRACKET
71
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
71
NUT , Replaced By: N910113018004
74
SHIM REAR SPRING
74
SHIM CONTROL ARM TO REAR AXLE
77
DOWEL PIN (CENTERING CONE),5 361886
77
DOWEL PIN , Replaced By: A6749910060
77
CENTERING BOLT (CENTERING CONE),5 361887
77
DOWEL PIN (CENTERING CONE),5 361887, Replaced By: A9303230574
80
PLATE REAR SPRING TO REAR AXLE
83
U-BOLT FRONT SPRING TO FRONT AXLE,FRONT 300MM
86
SPHERICAL WASHER FRONT SPRINGS TO FRONT AXLE,5 468450
89
NUT FRONT SPRINGS TO FRONT AXLE
999
BUSHING SPARE WHEEL HOIST TO CROSS MEMBER
