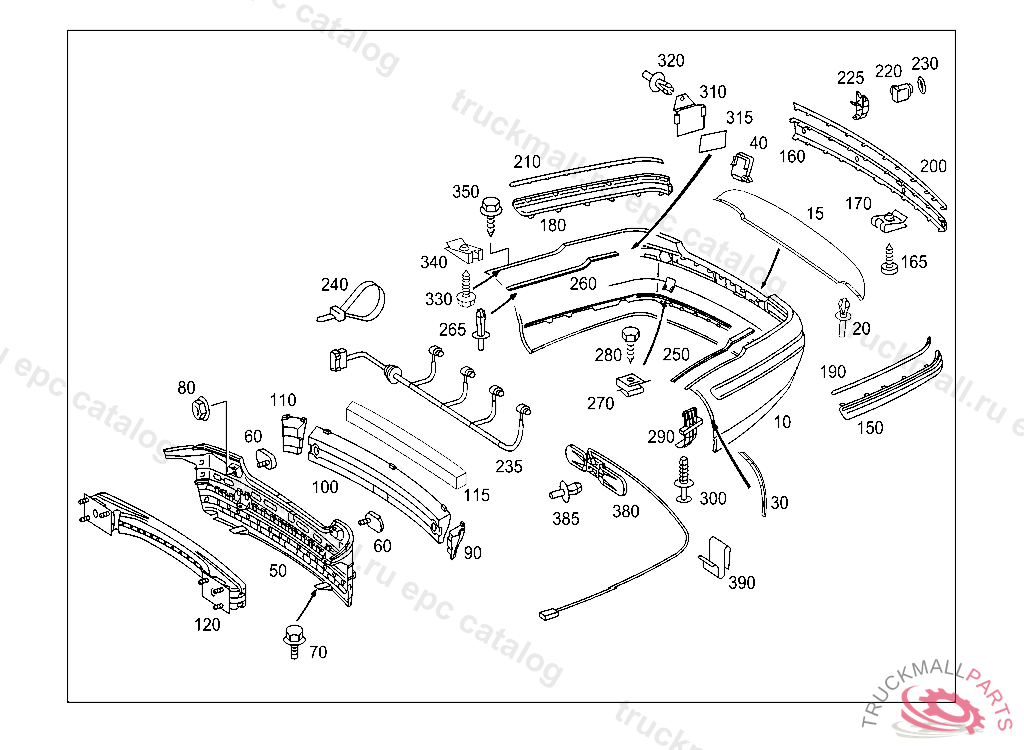

Поз.
Артикул
Описание
10
PANELING BUMPER
10
PANELING BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT215L9000 COLORLESS
15
PANELING LOWER PART
20
RIVET RAIL ATTACHMENT,RIGHT
30
COVER TO BUMPER RIGHT, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT215L9000 COLORLESS
30
COVER COVERING TO LEFT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT215L9000 COLORLESS
40
COVER TOWING EYE
40
COVER TOWING EYE
50
INTERIOR PART
60
PLATE
70
SCREW PUMP TO BRACKET
80
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
80
NUT-AND-WASHER ASSEMBLY HINGE, Replaced By: N910104006001
80
NUT-AND-WASHER ASSEMBLY. NUT , Replaced By: N910104006000
90
ENERGY-ABSORBING UNIT LEFT
100
ENERGY-ABSORBING UNIT CENTRAL
110
ENERGY-ABSORBING UNIT RIGHT
115
INTERMEDIATE PIECE TO ENERGY-ABSORBING UNIT, E 01938620050630805 F 59396620040531805 R 15626520040630805
120
CROSS MEMBER
150
PROTECTIVE STRIP LEFT
160
PROTECTIVE STRIP CENTRAL
165
SCREW , Replaced By: N000000000521
170
NUT RETAINER
180
PROTECTIVE STRIP RIGHT
190
CHROMIUM COVER LEFT
200
CHROMIUM COVER CENTRAL
210
CHROMIUM COVER RIGHT
220
DISTANCE SENSOR , TO BE PAINTED PRIOR TO INSTALLATION 9999QFT168L9000 COLORLESS, Replaced By: A0045428718
225
HOUSING PARKTRONIC SYSTEM
230
SPACER RING PARKTRONIC SYSTEM, A 55589720030630804 E 02000020070101804 A 97499920070630 E 06000020080901809
235
WIRING HARNESS PARKTRONIC SYSTEM
240
CABLE TIE BRANCH-OFF LINE FASTENING FOR RPM SENSOR
250
REINFORCEMENT LEFT
260
REINFORCEMENT RIGHT
265
EXPANSION RIVET REINFORCEMENT FASTENING 4 MM
270
FUSE FASTENING FOR LINING
280
SHEET METAL SCREW
280
TAPPING SCREW MOUNTING PARTS 4.8X16
290
GUIDE RIGHT
290
GUIDE LEFT
300
RIVET
310
BRACKET LEFT
310
BRACKET RIGHT
315
BASE , Replaced By: A0009838910
320
RIVET AIR/WATER DUCT TO CROSS MEMBER, 1B63
330
SCREW
340
LOCK NUT CENTER REINFORCEMENT TO HOUSING CENTER CONSOLE 4.8/0.5-2.5 MM
350
BOLT LATERAL BUMPER TO BODY 6X18
380
ANTENNA KEYLESS GO
385
RIVET , Replaced By: A0009902292
390
CLIP , 055662 903741
