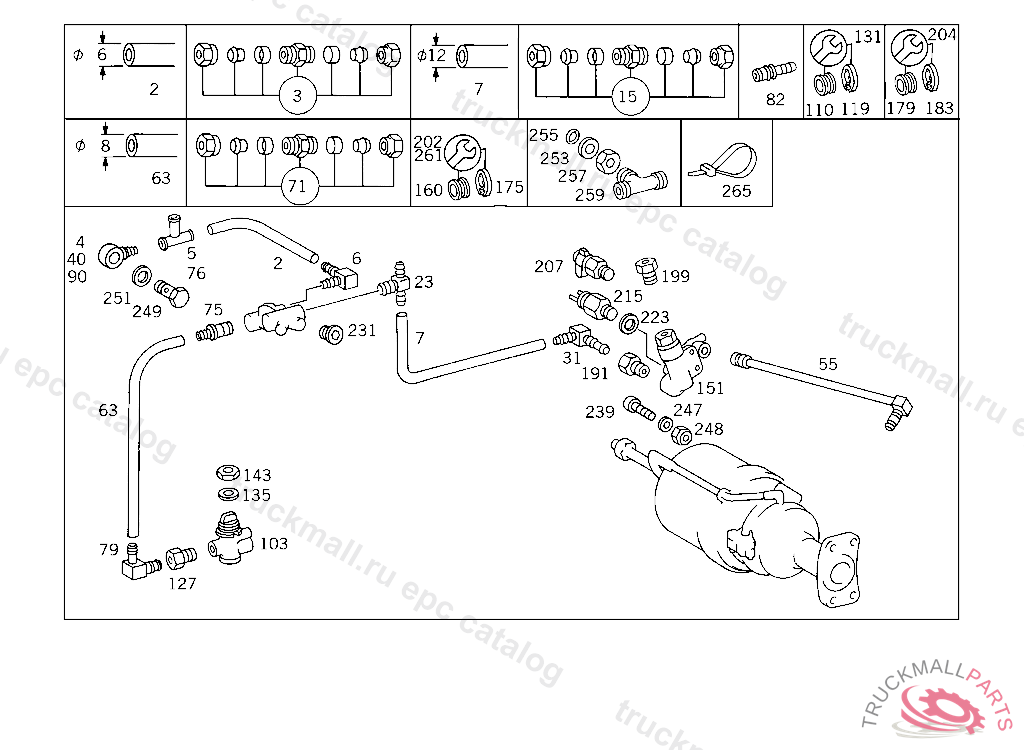

Поз.
Артикул
Описание
2
PLASTIC PIPE RISING PIPE 4X6 MM
2
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
3
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
4
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
5
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
6
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
7
HOSE , Replaced By: A0009872827
7
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
15
FITTING (PARTS KIT),LINE RUPTURE
15
FITTING , Replaced By: A0029906171
15
BANJO UNION , Replaced By: N915052009009
15
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
23
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
31
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
40
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
40
BANJO UNION , Replaced By: N915052009009
55
LINE LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "12"
55
LINE LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "12"
63
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
71
FITTING , Replaced By: A0029905971
71
FITTING (PARTS KIT),LINE RUPTURE
75
CONNECTOR , Replaced By: A0029905478
75
CONNECTOR HOSE WIDTH, 6 MM,TO M16
76
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
79
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
79
ELBOW FITTING , Replaced By: A0049905371
79
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
82
CONNECTOR DISTRIBUTOR TO CAB
90
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
90
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
103
VALVE 3/2-WAY
110
LOCK RING LINE CONNECTION
110
SEAL RING , Replaced By: A0009940747
119
LOCK , Replaced By: A0009945448
119
LOCK LINE CONNECTION
127
SCREW. UNION SCREW , Replaced By: A0009973734
127
SCREW. UNION SCREW LINE CONNECTION
131
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
131
REPAIR KIT , Replaced By: A0309971748
135
WASHER AT TWO-WAY VALVE
143
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
151
VALVE (SHUTTLE VALVE) WABCO
151
SHUTTLE VALVE. VALVE (SHUTTLE VALVE)
160
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
175
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
179
LOCK RING LINE CONNECTION
179
SEAL RING , Replaced By: A0009940747
183
LOCK , Replaced By: A0009945448
183
LOCK LINE CONNECTION
191
SCREW. UNION SCREW LINE CONNECTION
199
SCREW. UNION SCREW LINE CONNECTION
199
SCREW. UNION SCREW , Replaced By: A0009973734
202
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
204
REPAIR KIT , Replaced By: A0309971748
204
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
207
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
207
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
215
SWITCH SUPPLY PRESSURE
223
SEAL RING LINE CONNECTION
223
SEAL RING LINE CONNECTION
231
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
231
SCREW PLUG , Replaced By: N000908012009
239
SCREW , Replaced By: N000912008200
239
SCREW , Replaced By: N000000000190
239
SCREW , Replaced By: N000912008201
239
SCREW , Replaced By: N000912008219
239
SCREW SPRING STOP
239
SCREW BOX COVER TO 000 553 79 01,000 553 89 01
239
SCREW
247
WASHER BRACKET TO CROSS MEMBER
248
NUT , Replaced By: N913004008001
248
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
249
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
249
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
251
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
253
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
253
THRUST RING CHECK VALVE TO AIR RESERVOIR
255
O-RING CHECK VALVE TO AIR RESERVOIR
257
NUT CHECK VALVE TO AIR RESERVOIR
259
T-FITTING LINE CONNECTION
261
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
265
LOOM TIE LINE MOUNTING 280 MM
265
LOOM TIE LINE MOUNTING
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
