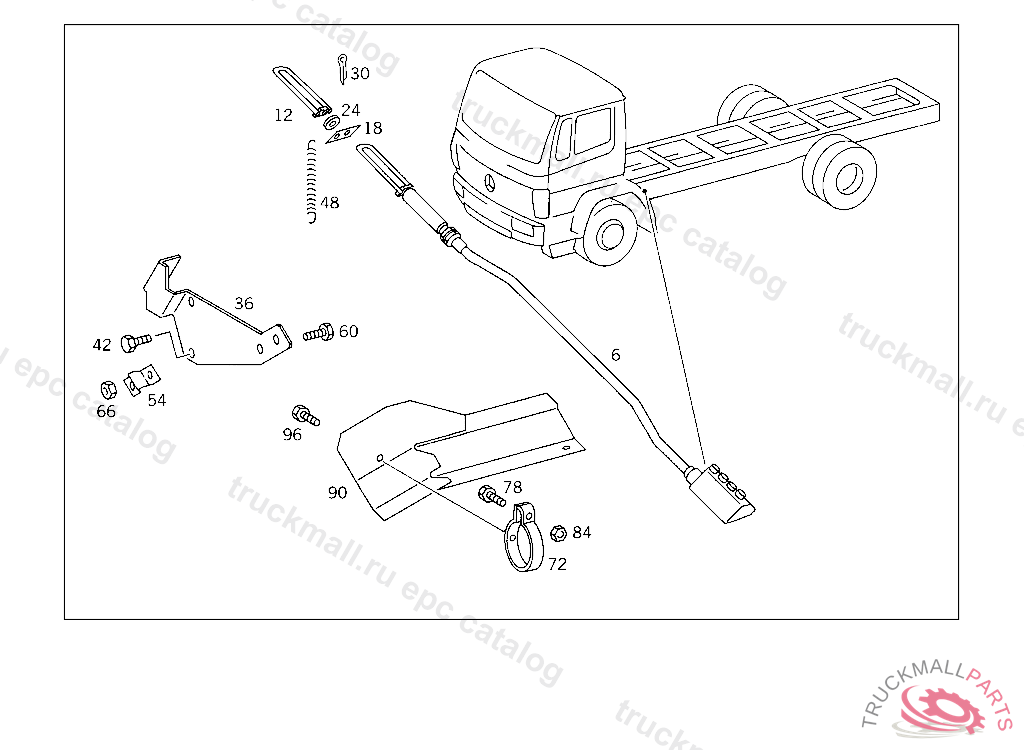

Поз.
Артикул
Описание
6
MODULATOR
12
END PIECE MODULATOR
18
BRACKET MODULATOR
24
WASHER , Replaced By: N000125010532
24
WASHER RADIATOR TO RUBBER MOUNTING
30
COTTER PIN CYLINDER TO BRACKET
36
BRACKET BOWDEN CABLE
42
SCREW BRACKET TO TRANSMISSION
42
SCREW BRACKET TO TRANSMISSION
48
SPRING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6769930010
48
SPRING CONTROL SHAFT
54
CLAMP BOWDEN CABLE TO BRACKET
60
SCREW , Replaced By: N304017008039
60
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
66
NUT , Replaced By: N913004008001
66
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
66
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
72
CLAMP (HEAT SHIELD),5 364285
78
SCREW BRACKET TO SIDE MEMBER
78
SCREW , Replaced By: N304017010002
84
NUT EXHAUST PIPE TO SIDE MEMBER
90
PROTECTIVE PLATE ,5 364285, Replaced By: A6764900630, +001A6764900740, +002N000933008053, +003N913004008004
96
SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
999
WIRE CABLE MODULATOR TO 000 300 03 62
999
MODULATOR
999
GASKET
999
BOOT
999
BRACKET BOWDEN CABLE
999
END PIECE MODULATOR
999
SPACER TUBE BRACKET TO TRANSMISSION CASE
999
PROTECTIVE PLATE , FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO. 5 364286-5 552103, Replaced By: A6764900830
999
BRACKET HEAT SHIELD
999
PROTECTIVE PLATE (HEAT SHIELD)
999
PROTECTIVE PLATE (HEAT SHIELD)
999
BRACKET HEAT SHIELD TO MODULATOR
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW 4/2-WAY VALVE TO BRACKET
999
SCREW , Replaced By: N304017008016
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
