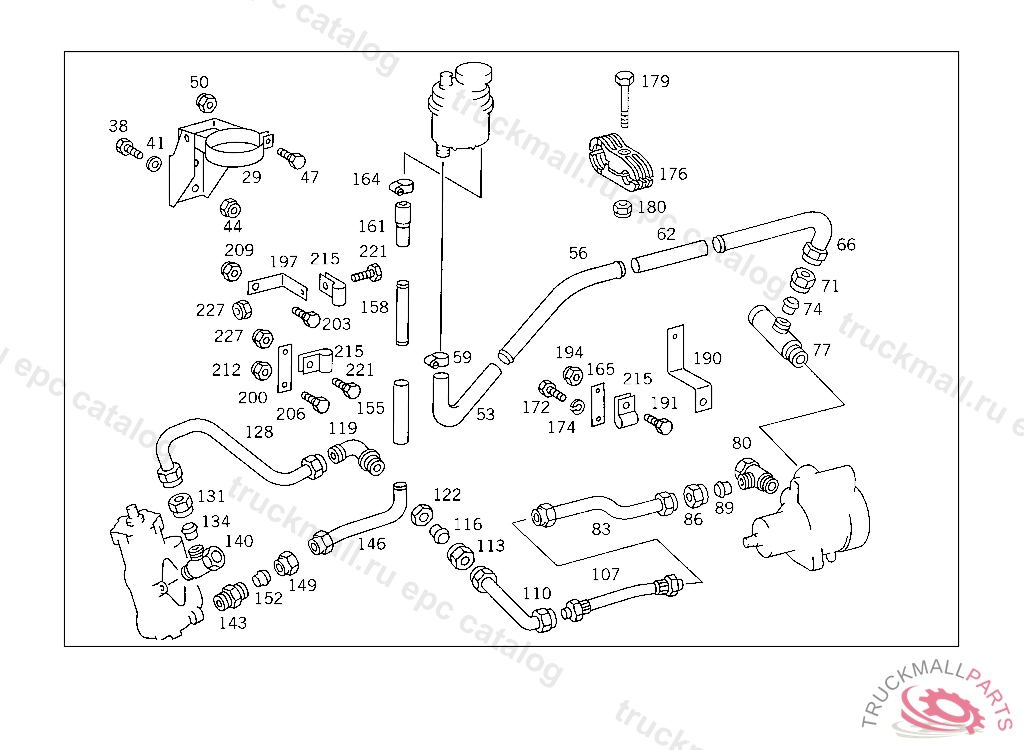

Поз.
Артикул
Описание
29
BRACKET , Replaced By: A6754601035, +001A6752600262
29
BRACKET OIL TANK,5 553319
38
SCREW BEARING BRACKET TO SIDE MEMBER
41
SPACER WASHER BRACKET TO FRAME
44
NUT COMBINATION CYLINDER TO BEARING BRACKET
44
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
47
SCREW OIL TANK TO BRACKET
50
NUT , Replaced By: N913004006001
50
NUT PUMP TO BRACKET
53
HOSE ,K 055044
53
HOSE ,K 055044
56
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138294
56
LINE , Replaced By: A0004291601
56
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
56
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
56
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
59
CLAMP , Replaced By: N000000000667
59
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
62
HOSE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138294
66
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 1382945 374583
66
LINE ,K 126844
66
LINE ,K 126844
66
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
66
LINE ,K 055043K 126843
66
LINE ,K 055043K 126843
71
UNION NUT LINE CONNECTION, Replaced By: N000000006243
71
NUT LINE CONNECTION
74
GLAND , Replaced By: A0019901267
77
ELBOW FITTING SUCTION LINE TO OIL PUMP
77
FITTING SUCTION LINE TO OIL PUMP
80
FITTING DELIVERY LINE TO PUMP
80
FITTING DELIVERY LINE TO PUMP
80
SCREW CONNECTION DELIVERY LINE TO PUMP
80
SCREW CONNECTION DELIVERY LINE TO PUMP
83
LINE FROM PUMP TO HIGH PRESSURE HOSE,K 126843
83
LINE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6754600988
86
UNION NUT LINE CONNECTION, Replaced By: N000000006239
86
UNION NUT LINE CONNECTION
89
GLAND , Replaced By: A0019901967
89
SEAL CONE LINE CONNECTION
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
110
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
110
LINE , Replaced By: A6744600988, +001A6744660340
113
UNION NUT LINE CONNECTION
113
UNION NUT LINE CONNECTION, Replaced By: N000000006239
116
GLAND , Replaced By: A0019901967
116
SEAL CONE LINE CONNECTION
119
BULKHEAD FITTING DELIVERY LINE TO FRAME
122
NUT BRACKET TO SIDE MEMBER
128
LINE FITTING TO STEERING BOX,5 477370K 112897
128
LINE , Replaced By: A0004292301
128
LINE FITTING TO STEERING BOX,K 112898
131
UNION NUT LINE CONNECTION
131
NUT. UNION NUT LINE CONNECTION
131
UNION NUT LINE CONNECTION, Replaced By: N000000006239
134
SEAL CONE LINE CONNECTION
134
GLAND , Replaced By: A0019901967
134
CUTTING RING. GLAND LINE CONNECTION
140
SCREW-IN FITTING DELIVERY LINE TO PUMP
140
SCREW-IN FITTING DELIVERY LINE TO PUMP
140
SCREW CONNECTION DELIVERY LINE TO PUMP
143
FITTING RETURN LINE TO STEERING
146
LINE FROM STEERING GEAR TO OIL TANK,5 477370K 112897
146
LINE , Replaced By: A0004291001
149
UNION NUT LINE CONNECTION, Replaced By: N000000006239
149
UNION NUT LINE CONNECTION
152
GLAND , Replaced By: A0019901967
152
SEAL CONE LINE CONNECTION
155
HOSE (RETURN LINE),FROM STEERING TO OIL TANK
155
HOSE , Replaced By: A0009974752
158
LINE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6744661865
158
LINE (RETURN LINE),FROM STEERING TO OIL TANK
158
LINE , Replaced By: A6734662065
161
HOSE ,K 055044
161
HOSE ,K 055044
161
HOSE RETURN, FROM STEERING TO OIL TANK
164
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
164
CLAMP HOSE TO FITTING AND TO OIL TANK
165
BRACKET LINE TO ENGINE FRONT CROSS MEMBER
172
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
172
SCREW , Replaced By: N304017010028
174
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
176
BRACKET DELIVERY AND SUCTION LINES
179
SCREW DISTRIBUTOR TO CAB
180
NUT PUMP TO BRACKET
180
NUT , Replaced By: N913004006001
190
BRACKET DELIVERY LINE TO FRAME
191
SCREW , Replaced By: N304017012020
191
SCREW END PIECE TO EXHAUST PIPE M 12X30
194
NUT END PIECE TO EXHAUST PIPE
197
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
197
BRACKET , Replaced By: A6454310740
197
BRACKET FUEL LINE TO BELL HOUSING
200
BRACKET FEED LINE AND RETURN LINE,5 346007
200
BRACKET , Replaced By: A6173020440
203
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
203
SCREW , Replaced By: N304017010002
203
SCREW BRACKET TO SIDE MEMBER
206
SCREW PIPE CLAMP
206
SCREW , Replaced By: N304017008021
209
NUT , Replaced By: N910113014001
209
NUT , Replaced By: N910113010000
209
NUT STRAP TO BRACKET
209
NUT BRACKET TO SIDE MEMBER
212
NUT , Replaced By: N913004008001
215
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
215
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
215
CLAMP LINE MOUNTING
221
SCREW , Replaced By: N914146006102
221
SCREW CLAMP MOUNTING M 6X16
227
NUT PUMP TO BRACKET
227
NUT , Replaced By: N913004006001
999
THRUST RING SUCTION LINE TO OIL PUMP
999
SEALING CORD SUCTION LINE TO OIL PUMP
999
ELBOW FITTING DELIVERY LINE TO PUMP
999
FITTING (DELIVERY LINE),FROM PUMP TO STEERING, Replaced By: A9329970772
999
PROTECTIVE CAP
999
HOSE , Replaced By: A6254660381
999
HOSE FROM OIL TANK TO SUCTION LINE
999
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,5 138294
999
BRACKET OIL TANK,K 055089
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,K 055044K 081859
999
LINE FROM PUMP TO HIGH PRESSURE HOSE,K 055044K 081859
999
LINE FROM PUMP TO HIGH PRESSURE HOSE
999
LINE FROM STEERING GEAR TO OIL TANK,K 112898
999
LINE RETURN LINE TO STEERING,K 055018
999
FITTING (DELIVERY LINE),FROM PUMP TO STEERING
999
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEAL RING SOLENOID VALVE A 18X24
999
NUT SUCTION LINE TO OIL PUMP
