Поз.
Артикул
Описание

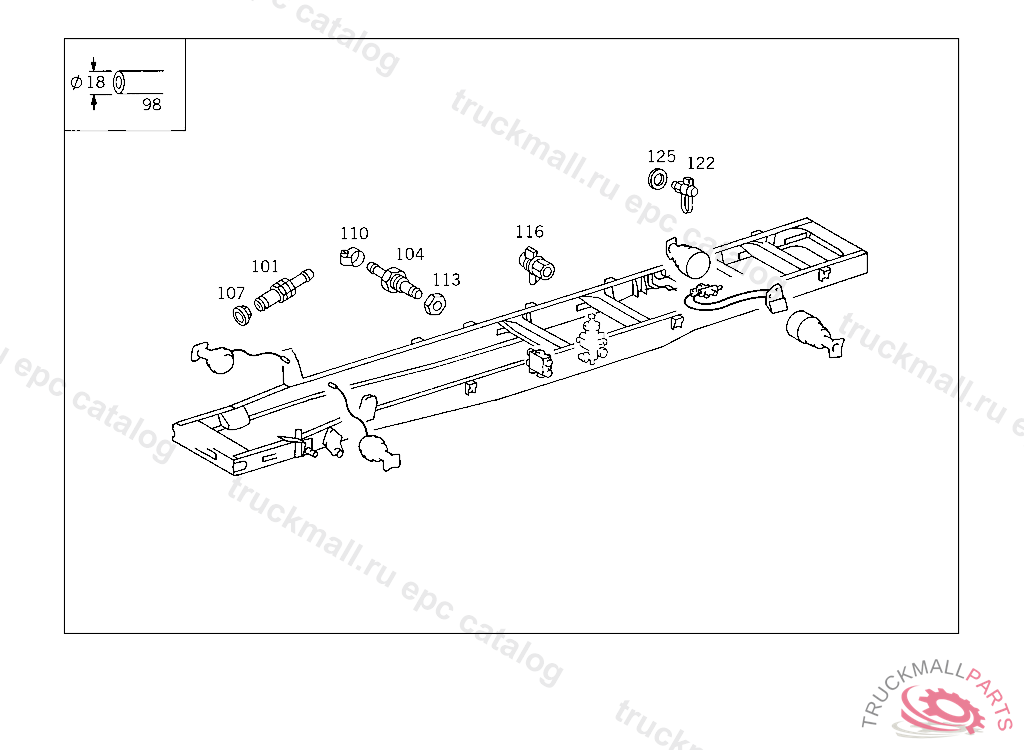

98
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
101
CONNECTOR FROM REAR BRAKE HOSE TO TRISTOP CYLINDER TO M 22
101
CONNECTOR FROM REAR BRAKE HOSE TO TRISTOP CYLINDER TO M 22
104
CONNECTOR HOSE WIDTH, 9 MM, TO M 22
104
CONNECTOR HOSE WIDTH, 9 MM, TO M 22
104
CONNECTOR HOSE WIDTH, 9 MM, TO M 22
104
CONNECTOR COMPRESSED AIR LINE THRU RIGHT SIDE MEMBER TO M 22
107
LOCK REAR AXLE BRAKE HOSE,K 181360
110
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
110
CLAMP HOSE TO FITTING AND TO OIL TANK
113
NUT BRACKET TO SIDE MEMBER
113
NUT BRACKET TO SIDE MEMBER
116
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
116
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
116
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
116
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
116
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
116
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
116
TEST CONNECTION
116
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
122
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
122
TEST CONNECTION SHUTTLE VALVE,CONNECTION: "2"
125
SEAL RING LINE CONNECTION
999
EDGE GUARD SECTION , Replaced By: A0019872272
999
LOOM TIE , Replaced By: A0069973090
999
CABLE TIE. LOOM TIE1140 X 8.9 MM
999
CLAMP BRAKE HOSE
999
HOSE COMPRESSED AIR GUIDE, REAR AXLE. 220 MM
999
GROMMET LINE THRU LEFT SIDE MEMBER
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: A3609902340
999
CLAMP BRAKE HOSE
