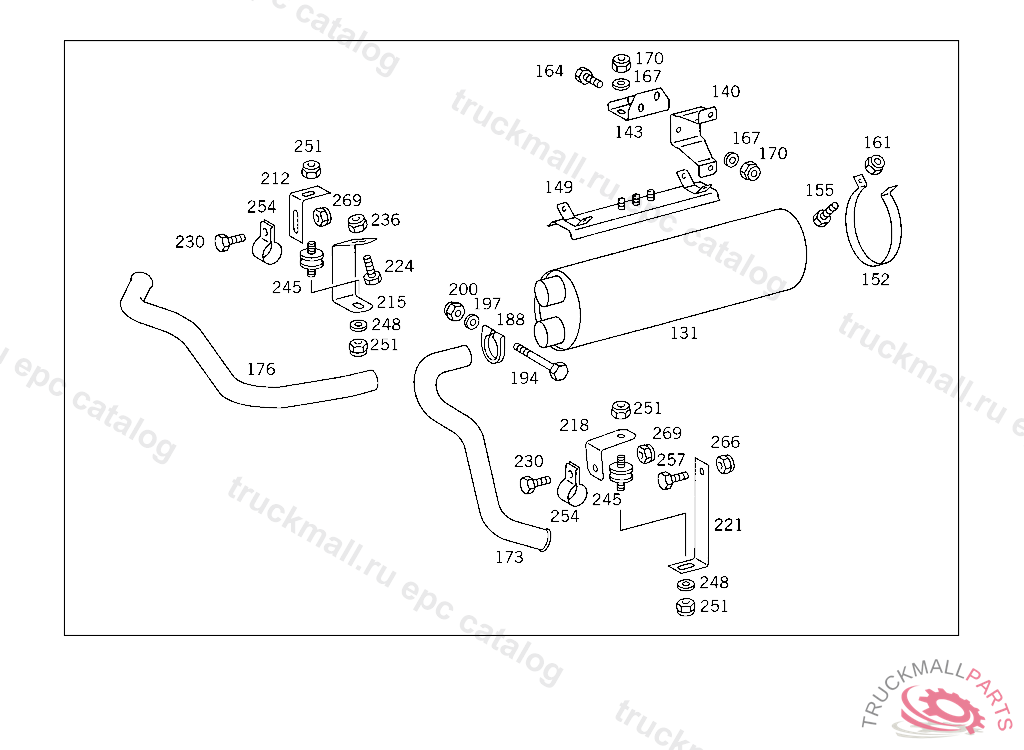

Поз.
Артикул
Описание
131
EXHAUST MUFFLER
140
BRACKET EXHAUST MUFFLER
143
BRACKET EXHAUST MUFFLER TO BRACKET
143
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. K 139807, Replaced By: A6744924841
149
SUPPORT EXHAUST MUFFLER TO BRACKET
152
STRAP EXHAUST MUFFLER TO SIDE MEMBER
152
BRACKET , Replaced By: A6744914541
155
SCREW BRACKET TO SIDE MEMBER
161
NUT STRAP TO BRACKET
161
NUT , Replaced By: N910113010000
164
SCREW , Replaced By: N304017010002
164
SCREW BRACKET TO SIDE MEMBER
164
SCREW REAR EXHAUST PIPE TO MUFFLER
167
WASHER STRUT TO CROSS MEMBER
167
WASHER , Replaced By: N007349010007
170
NUT , Replaced By: N910113010000
170
NUT STRAP TO BRACKET
173
REAR EXHAUST PIPE (TAIL PIPE)
176
REAR EXHAUST PIPE (TAIL PIPE),K 079963
188
CLAMP BRACKET TO EXHAUST PIPE
194
SCREW , Replaced By: N304014008021
194
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
197
WASHER , Replaced By: N000125008443
197
WASHER EXHAUST MUFFLER TO STRAP
200
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
200
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
200
NUT , Replaced By: N913004008001
212
BRACKET FUEL LINES TO TRANSMISSION
215
BRACKET BRACKET TO FILTER BRACKET
218
BRACKET EXHAUST PIPE REAR ON BATTERY CASE
221
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
224
SCREW PIPE CLAMP
224
SCREW , Replaced By: N304017008021
230
SCREW , Replaced By: N304017010002
230
SCREW BRACKET TO SIDE MEMBER
236
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
236
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
236
NUT , Replaced By: N913004008001
245
RUBBER BUFFER EXHAUST PIPE REAR ON BATTERY CASE
248
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
248
WASHER , Replaced By: N006902011100
248
WASHER , Replaced By: N006902011102
251
NUT , Replaced By: N910113010000
251
NUT STRAP TO BRACKET
254
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
254
CLAMP , Replaced By: N071555090502
257
SCREW , Replaced By: N304017008021
257
SCREW PIPE CLAMP
266
HEXAGON NUT SCREENING PLATE,5 163561
266
NUT , Replaced By: A1201420072
269
NUT , Replaced By: N910113010000
269
NUT STRAP TO BRACKET
999
SCREW COVERING TO SUPPORT
999
PROTECTIVE PLATE , NOT USED
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 227991, Replaced By: A6764902640
999
BRACKET HEAT SHIELD
999
WASHER HEAT SHIELD TO BRACKET
