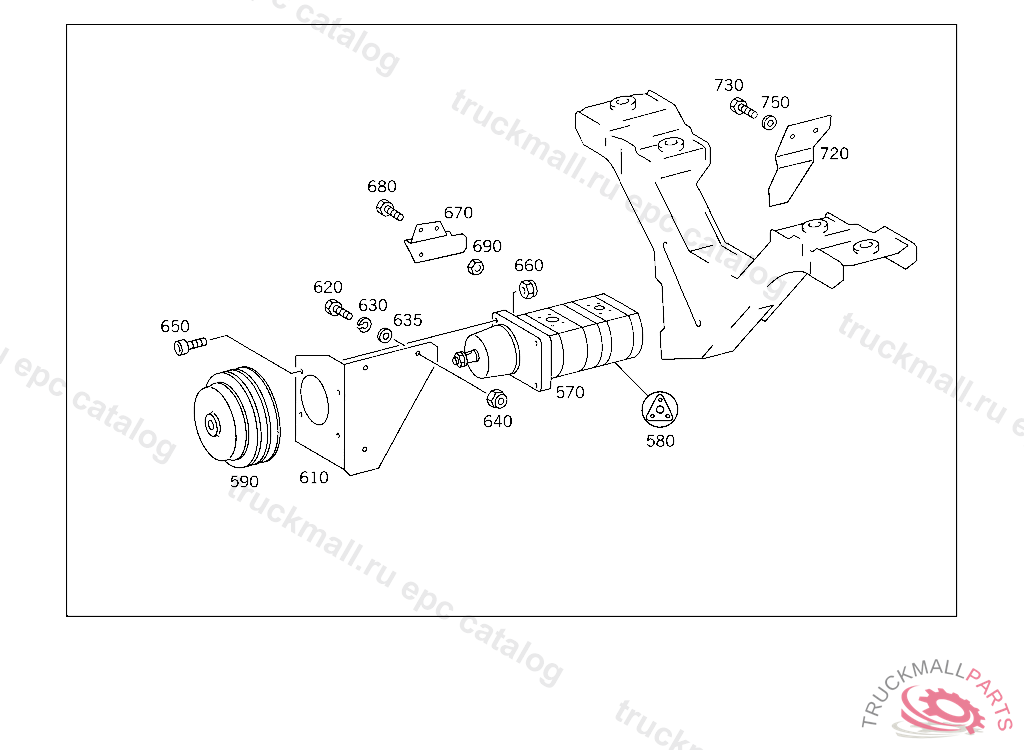

Поз.
Артикул
Описание
570
HYDRAULIC PUMP"BOSCH"
580
REPAIR KIT GASKET KIT
590
PULLEY HYDRAULIC PUMP
590
PULLEY , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 345185, Replaced By: A4222360110
610
PLATE HYDRAULIC PUMP
620
SCREW BRACKET TO CROSS CONNECTION STRUT
620
SCREW , Replaced By: N304017008034
620
SCREW , Replaced By: N304017008021
620
SCREW PIPE CLAMP
630
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
630
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
635
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
640
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
640
NUT , Replaced By: N913004008001
650
SCREW HYDRAULIC PUMP TO BRACKET M 8X35
660
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
660
NUT , Replaced By: N913004008001
670
BRACKET HOSE LINE TO PLATE, NOT USED
680
SCREW COVER PLATE TO BRACKET
690
NUT , Replaced By: N913004006001
690
NUT PUMP TO BRACKET
720
BRACKET HYDRAULIC PUMP,5 484925
730
SCREW BRACKET TO CROSS CONNECTION STRUT
730
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
730
SCREW , Replaced By: N304017008034
730
SCREW , Replaced By: N304017008016
750
WASHER , Replaced By: N000125008443
750
WASHER EXHAUST MUFFLER TO STRAP
750
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
999
COUPLING
999
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
999
ENGINE CROSS MEMBER FRONT BOTTOM
999
ENGINE CROSS MEMBER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 278970, Replaced By: A6753100126
999
ENGINE CROSS MEMBER FRONT
999
INTERMEDIATE PIECE CROSS MEMBER AND ENGINE MOUNTING TO CONSOLE
999
HOSE FROM WATER PUMP TO RADIATOR
