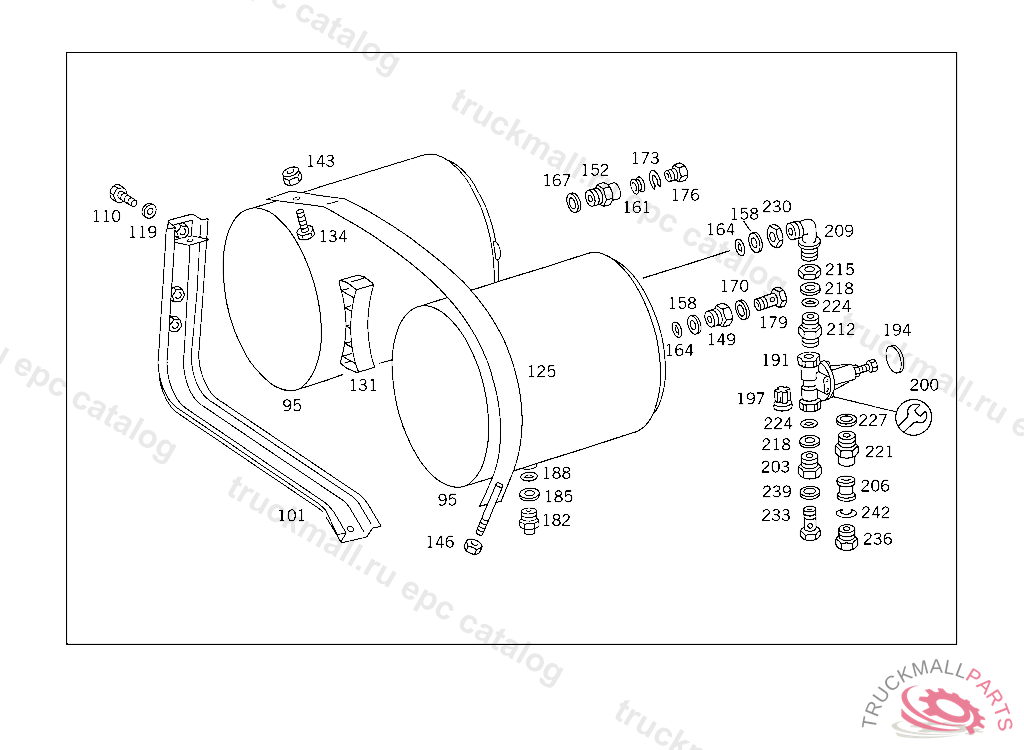

Поз.
Артикул
Описание
119
WASHER BRACKET TO FRAME
143
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
146
NUT BRACKET TO SUPPORT AND TO END PIECE
149
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
152
FITTING LINE CONNECTION
158
THRUST RING CHECK VALVE TO AIR RESERVOIR
158
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
161
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
164
O-RING CHECK VALVE TO AIR RESERVOIR
170
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
173
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
176
SCREW. UNION SCREW LINE CONNECTION
179
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
179
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
182
VALVE. DRAIN VALVE DRAIN
182
VALVE DRAIN, Replaced By: A0004322407
182
VALVE DRAIN, Replaced By: A0004322107
185
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
185
THRUST RING CHECK VALVE TO AIR RESERVOIR
188
O-RING CHECK VALVE TO AIR RESERVOIR
191
VALVE , Replaced By: A0044293144
191
VALVE , Replaced By: A0044293144
191
VALVE , Replaced By: A0044293244
191
VALVE (OVERFLOW VALVE) GRAU
191
VALVE (OVERFLOW VALVE) WABCO
194
DIAPHRAGM
197
VALVE
200
REPAIR KITBOSCH
200
REPAIR KITTO 001 429 52 44
203
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
206
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
209
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
209
ELBOW FITTING , Replaced By: A0004294638
215
NUT CHECK VALVE TO AIR RESERVOIR
218
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
218
THRUST RING CHECK VALVE TO AIR RESERVOIR
221
FITTING LINE CONNECTION
224
O-RING CHECK VALVE TO AIR RESERVOIR
227
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
230
NUT CHECK VALVE TO AIR RESERVOIR
233
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
236
SCREW. UNION SCREW LINE CONNECTION
239
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
242
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
