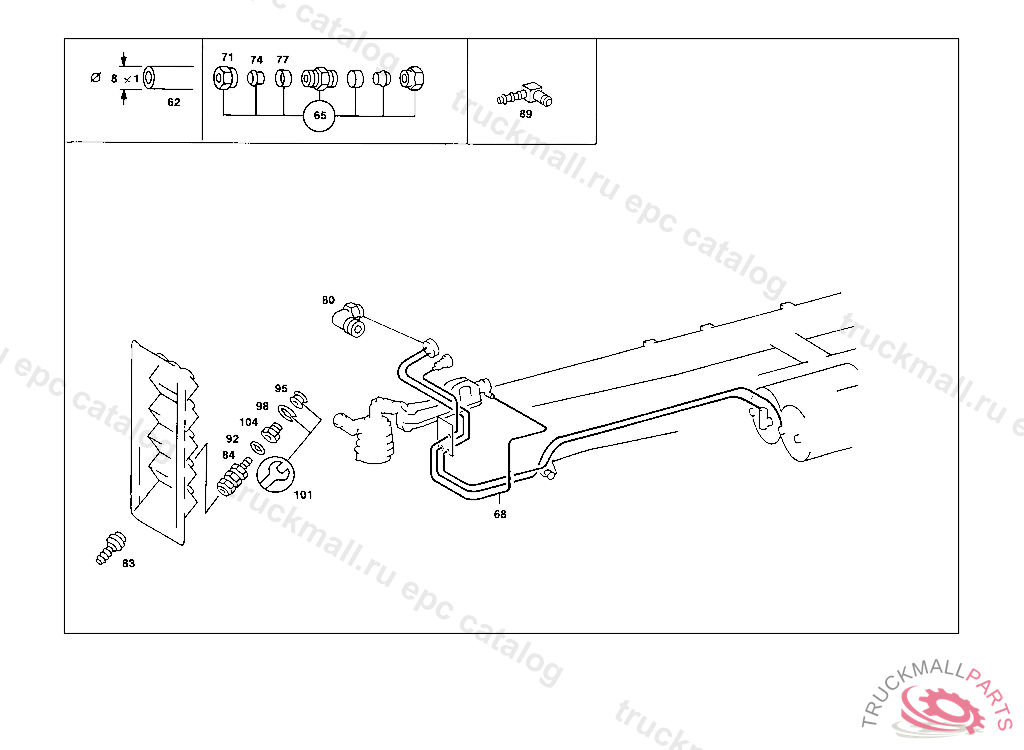

Поз.
Артикул
Описание
62
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
62
PLASTIC PIPE RISING PIPE 4X6 MM
65
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
68
HOSE LEAK LINE, ORDER BY THE METER
71
UNION NUT
74
GLAND , Replaced By: A0019901667
77
SLEEVE LEAK LINE
80
FITTING FROM PUMP TO CYLINDER
80
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
80
FITTING , Replaced By: A0019909871
83
CONNECTOR , Replaced By: A0029905378
83
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
84
CONNECTOR LINE MOUNTING
89
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
89
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
92
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
95
SEAL RING , Replaced By: A0009940747
95
LOCK RING LINE CONNECTION
98
LOCK LINE CONNECTION
98
LOCK , Replaced By: A0009945448
101
REPAIR KIT , Replaced By: A0309971748
101
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
104
SCREW. UNION SCREW LINE CONNECTION
104
SCREW. UNION SCREW , Replaced By: A0009973734
999
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
999
CONNECTOR HOSE WIDTH, / I.D., 6 MM
999
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
999
CONNECTOR DISTRIBUTOR TO CAB
999
ELBOW FITTING
999
CONNECTOR COMPRESSED AIR LINE TO CLUTCH BOOSTER
999
PLUG BLEEDING,D 013038
