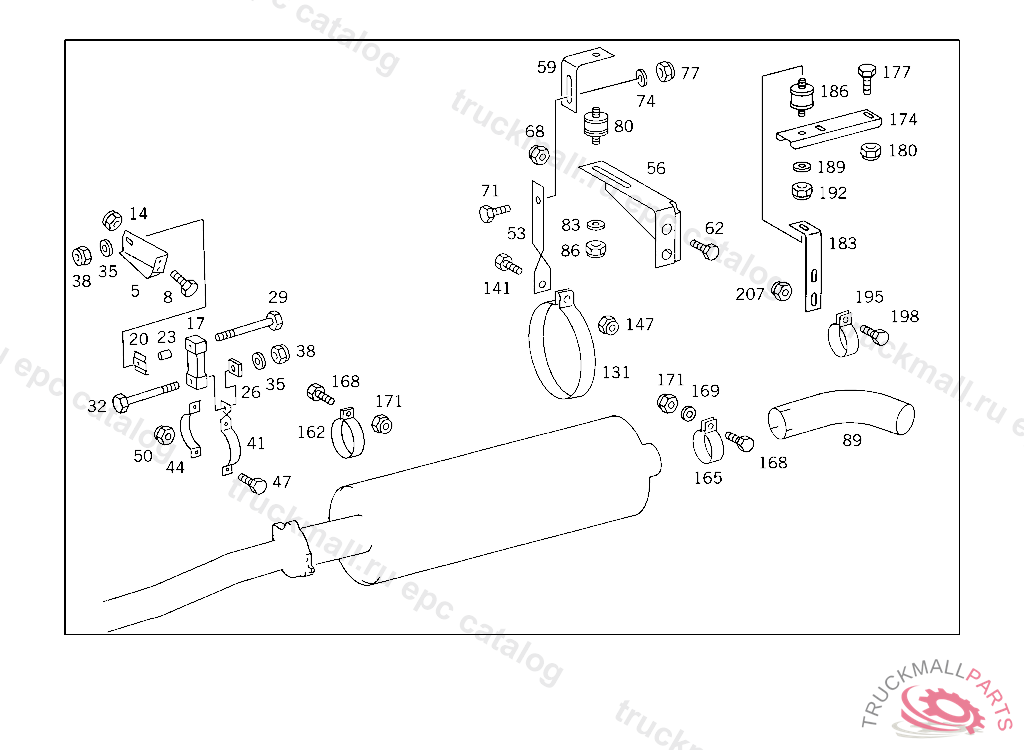

Поз.
Артикул
Описание
5
CONSOLE FRONT EXHAUST PIPE,B 884219
8
SCREW SUPPORT TO FRAME M12X1,5X35,D 127794
14
NUT SUPPORT TO SIDE MEMBER
17
DAMPING PAD FRONT EXHAUST PIPE,B 884219
20
CLAMPING PLATE. BASE PLATE FRONT EXHAUST PIPE,B 884219
23
SPACER TUBE FRONT EXHAUST PIPE,B 884219
26
INSULATING WASHER. INSULATION , Replaced By: A3094900037
29
SCREW DAMPING PAD TO SUPPORT M 8X45,B 884219
32
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
35
WASHER BRACKET TO CAB REAR PANEL
38
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
41
BRACKET BRACKET TO FRONT EXHAUST PIPE,B 884219
44
BRACKET BRACKET TO FRONT EXHAUST PIPE,B 884219
47
SCREW ANGLE TO CROSS MEMBER M 10X30
50
NUT BRACKET TO SIDE MEMBER,XB209706
53
SUPPORT EXHAUST MUFFLER
56
SUPPORT EXHAUST MUFFLER
59
BRACKET EXHAUST MUFFLER
62
SCREW MOUNTING TO CONSOLE M 14X55
62
SCREW BATTERY CASE
68
NUT BRACKET TO BATTERY CASE
71
SCREW ANGLE TO CROSS MEMBER M 10X30
74
WASHER GROUND CABLE
77
NUT BRACKET TO SIDE MEMBER,XB209706
80
RUBBER BUFFER EXHAUST MUFFLER
83
WASHER GROUND CABLE
86
NUT BRACKET TO RETARDER
89
REAR EXHAUST PIPE
131
CLAMP EXHAUST MUFFLER TO BRACKET
141
SCREW CROSS MEMBER TO SIDE MEMBERS
147
NUT BRACKET TO SIDE MEMBER,XB209706
162
CLAMP FRONT EXHAUST PIPE TO MUFFLER,B 884220
162
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
162
CLAMP , Replaced By: A3644927040
168
SCREW CROSS MEMBER TO SIDE MEMBERS
168
SCREW REAR EXHAUST PIPE TO MUFFLER M 10X140,B 884220
169
WASHER GROUND CABLE
171
NUT , Replaced By: N910113010004
171
NUT BRACKET TO SIDE MEMBER,XB209706
174
BRACKET TAIL PIPE TO BRACKET
177
SCREW BATTERY CASE
180
NUT BRACKET TO BATTERY CASE
183
BRACKET TAIL PIPE BRACKET
186
RUBBER BUFFER EXHAUST MUFFLER
189
WASHER GROUND CABLE
192
NUT BRACKET TO RETARDER
195
CLAMP , Replaced By: N071555090502
198
SCREW CROSS MEMBER TO SIDE MEMBERS
207
NUT BRACKET TO SIDE MEMBER,XB209706
